Bracket, Tamper Resistant, Integrated I/O Kit Instructions 7772-K300/K310 Issue B Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
Page 2
NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
Page 3
Table of Contents Copyright Tamper Resistant Bracket, Integrated I/O Kit Contents Installation Procedure Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
Page 4
Revision Record Issue Date Remarks Aug 2020 First Issue Jan 2021 Added K310 Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
Page 5

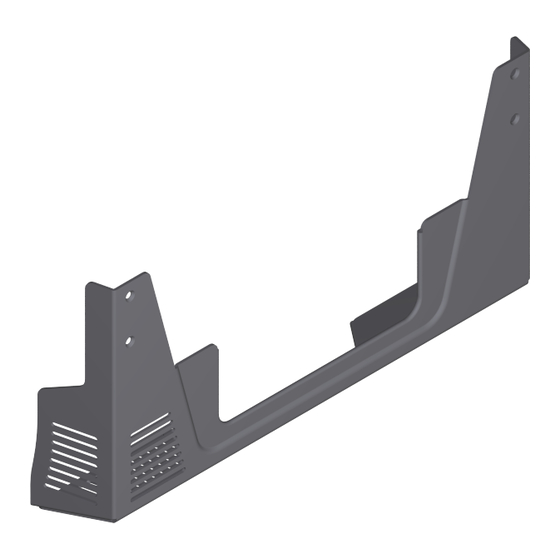

7772-K310 Tamper Resistant Bracket, Integrated I/O, 15” 4:3 Display 497-0526948 Bracket, Tamper Resistant, Integrated I/O, 15” 4:3 Display 006-8624748 Screw, M3x6, Flat Head, Phillips, Black, With Thread Lock Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
Page 6
Integrated USB Centric I/O (Retail) Expansion Callout Port Name Cash Drawer USB 24V USB 12V 24V Power In Status LED USB-C DB9 Serial (Standard UART) DisplayPort Dual USB 3.0 RJ50 Serial (Enhanced UART) Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
Page 7
24V Power In Status LED USB-C DisplayPort Cash Drawer B Cash Drawer A RJ12 Serial COM1 (Enhanced UART) COM2 (Standard UART) COM3 (Enhanced UART) COM4 (Standard UART) Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
Page 8
2. Install the Tamper Resistant Bracket on the Integrated I/O (4 screws). Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
