Summary of Contents for Nibe VVM S330

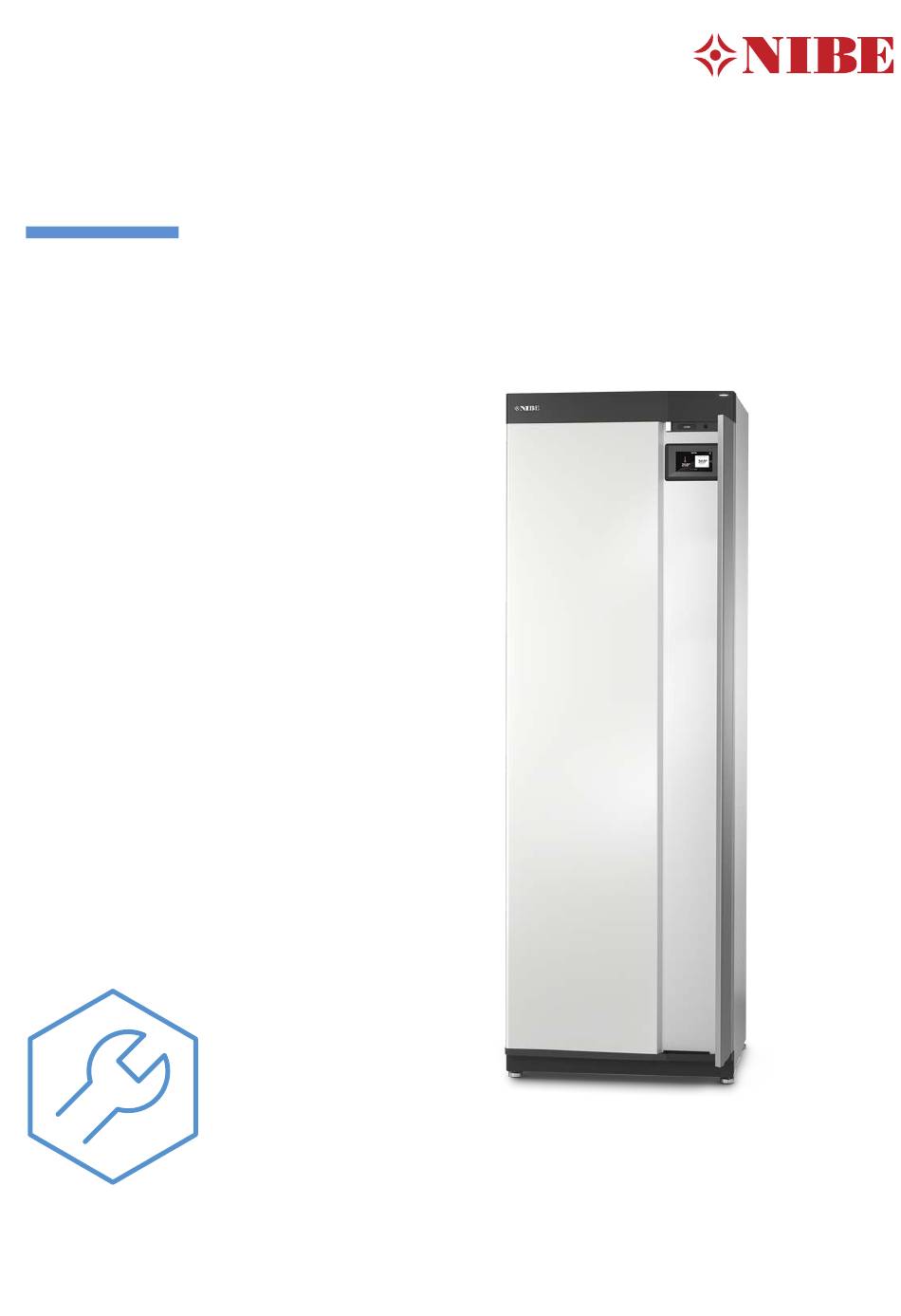

  • Page 1 Installer manual Indoor module NIBE VVM S330 IHB EN 2314-1 631454...
  • Page 2 Here, you can find information about product name, the product's temperature. serial number, the version of the software and service. When there is new software to download, you can do it here (provided that VVM S330 is connected to myUplink).

  • Page 3: Table Of Contents

    5 Electrical connections Electrical circuit diagram General Connections Item register Settings Contact information 6 Commissioning and adjusting Preparations Filling and venting Start-up and inspection Setting the cooling/heating curve 7 myUplink Specification Connection Range of services NIBE VVM S330 Table of Contents...

  • Page 4: Important Information

    The serial number can be found at the bottom right on cing the installation. VVM S330, in the display on the home screen "Product overview" and on the type plate (PZ1). This symbol indicates tips on how to facilitate us- ing the product.

  • Page 5: Inspection Of The Installation

    Part no. 064 318 S2125 S2125-8 1x230 V S2125-8 3x400 V Part no. 064 220 Part no. 064 219 S2125-12 1x230 V S2125-12 3x400 V Part no. 064 218 Part no. 064 217 NIBE VVM S330 Chapter 1 | Important information...

  • Page 6: Delivery And Handling

    Leave a free space of 800 mm in front of the product and VVM S330 should be transported and stored vertically in a 200 mm above the product. All service on VVM S330 can be dry place. carried out from the front and above.

  • Page 7: Supplied Components

    Non-return valve (RM1) (FL2)/pressure gauge, heat- ing medium (BP5) Vent hose Clips 2 x to VVM S330 1x230 V, 1 x to VVM S330 3x400 V O-ring Label for external control voltage for the control sys- 1 Only VVM S330 3x400 V.

  • Page 8: Handling Panels

    Remove the screw in the hole next to the on/off button (SF1). Pull the panel's top edge towards you and lift diagonally upwards to remove it from the frame. 3. Check the display is straight. Adjust if necessary. Chapter 2 | Delivery and handling NIBE VVM S330...
  • Page 9 The side panels can be removed to facilitate the installation. Remove the screws from the upper and lower edges. Twist the panel slightly outwards. 3. Move the panel outwards and backwards. 4. Assembly takes place in the reverse order. NIBE VVM S330 Chapter 2 | Delivery and handling...

  • Page 10: Indoor Module's Design

    Indoor module's design General 1x230 V QN10 QM40 QM23.3 QM23.2 QM23.1 QM23.4 BT63 BT38 3x400 V QN11 QN10 QM40 QM23.3 QM23.2 QM23.1 QM23.4 BT63 BT38 Chapter 3 | Indoor module's design NIBE VVM S330...

  • Page 11: Distribution Boxes

    ELECTRICAL COMPONENTS QN11 Shunt valve Overflow pipe for condensation Base card FQ10 Temperature limiter 1 Only VVM S330 3x400 V. FQ10-S2 Reset button for temperature limiter Sensors etc. Flow meter Flow meter hot water Flow line sensor Return line sensor...

  • Page 12: Pipe Connections

    Minimum re- highest recommended temperatures are 55 °C on the supply pump duringdefrost- commended commended line and 45 °C on the return line, but VVM S330 can handle pipe dimen- pipe dimen- 100% circula- sion (DN) sion (mm) up to 70 °C.
  • Page 13 Heating system Heating system with lower temperature SYSTEM DIAGRAM VVM S330 consists of hot water heat exchanger storage tank, hot water expansion vessel, immersion heater, circula- tion pumps, buffer vessel and control system. VVM S330 connects to the climate system. Hot water is produced via the hot water heat exchanger.

  • Page 14: Dimensions And Pipe Connections

    Dimensions and pipe Connecting to air/water heat connections pump NIBE recommends installing VVM S330 as close to the heat pump as possible to obtain the optimum comfort. You can find a list of compatible air/water heat pumps in section "Compatible outdoor modules".

  • Page 15: Use Without Heat Pump

    A climate system is a system that regulates the indoor tion. temperature with the help of the control system in VVM S330 and, for example, radiators, underfloor heating, underfloor Connect in the shut-off valve to the AUX output in cooling, fan coils, etc.

  • Page 16: Installation Alternative

    HOT WATER CIRCULATION If a mixing valve is installed, an additional further non-re- A circulation pump can be controlled by VVM S330 to circu- turn valve is required late the hot water. The circulating water must have a tem- perature that prevents bacterial growth and scalding, and national standards must be satisfied.
  • Page 17 The temperature is measured with an internal sensor in the outdoor unit, no additional sensor is needed. The reversing valve is activated via the AUX output in menu 7.4 -"Selectable in/outputs", "Cool. mode ind. w delay". NIBE VVM S330 Chapter 4 | Pipe connections...

  • Page 18: Electrical Connections

    0.5 mm² up to 50 m, for MINIATURE CIRCUIT-BREAKER example EKKX, LiYY or equivalent. The operating circuit in VVM S330 and some of its internal • For an electrical wiring diagram for VVM S330, see the components are fused internally by a miniature circuit "Technical specifications"...
  • Page 19 89 °C and it is reset manually. Resetting The temperature limiter (FQ10) is accessed behind the front cover. Reset the temperature limiter by pressing its button (FQ10-S2). NIBE VVM S330 Chapter 5 | Electrical connections...

  • Page 20: Connections

    If the voltage to the immersion heater is lost for some time, and X6-2 (PE). "Tariff blocking" must be selected at the same time via the selectable inputs, see section "Selectable inputs". Chapter 5 | Electrical connections NIBE VVM S330...
  • Page 21 X30 on the base board (AA2). also cause problems. VVM S330 operates without room sensor, but if you want to read the home’s indoor temperature from the display on VVM S330, the room sensor must be fitted. Connect the room sensor to terminal block X28:13 and AA2-X29:GND.
  • Page 22 Connect the current sensors to a multi-core cable in an enclosure directly adjacent to the electrical distribution unit. The multi-core cable between the enclosure and VVM S330 must have a cable area of at least 0.5 mm². Incoming electricity Electrical distribution unit...
  • Page 23 When the air/water heat pump is to be connected to ies" for a list of the accessories that can be used with VVM S330, this is connected to terminal block X30:1 (GND), VVM S330. Connection for communication with the most X30:3 (B) and X30:4 (A) on the base board AA2.
  • Page 24 Selectable outputs A selectable output is AA2-X27. The output is a potential-free switching relay. If VVM S330 is switched off or in emergency mode, the relay is in C-NC position. AA2-X27 VVM S330 External Caution The relay output may be subjected to a max load of 2 A at resistive load (230 V~).
  • Page 25 External blocking of functions (Can be selected if ventilation accessory is activated.) An external switch function can be connected to VVM S330 The following options are available: for blocking various functions. The switch must be potential- free and a closed switch results in blocking.

  • Page 26: Settings

    13.0 13.0 13.0 13.0 1 Factory setting When the current sensors are connected, VVM S330 monit- ors the phase currents and allocates the power steps auto- matically to the least loaded phase. NOTE If the current sensors are not connected, VVM S330 calculates how high the currents will be if the relevant power steps are added.
  • Page 27 You can activate the emergency mode both when VVM S330 is running and when it is switched off. To activate when VVM S330 is running: press and hold the on/off button (SF1) for 2 seconds and select "emergency mode" from the shutdown menu.

  • Page 28: Commissioning And Adjusting

    Preparations Check that the externally mounted filling valves are fully closed. NOTE Do not start VVM S330 if there is a risk that the water in the system has frozen. Caution Check the miniature circuit-breaker (FC1). It may have tripped during transport.

  • Page 29: Filling And Venting

    FILLING THE CLIMATE SYSTEM The climate system and VVM S330 are filled by an external filling hose (incl. filling valve) being connected in the product’s draining valve (QM1).

  • Page 30: Start-Up And Inspection

    Start VVM S330 by pressing the on/off button (SF1). English 3. Follow the instructions in the display’s start guide. If the start guide does not start when you start the VVM S330, you can start it manually in menu 7.7. Option / setting See the section "Control –...

  • Page 31: Setting The Cooling/Heating Curve

    Based on these curves, Go to menu 7.3.2 - "Installed heat pump" and deactivate VVM S330 determines the temperature of the water to the the heat pump.. climate system (the supply temperature) and thus the indoor temperature.
  • Page 32 Caution With underfloor heating systems, the maximum supply temperature is normally set between 35 and 45 °C. Caution Must be restricted with underfloor cooling min. flow line temp. to prevent condensation. Chapter 6 | Commissioning and adjusting NIBE VVM S330...

  • Page 33: Myuplink

    Visit myuplink.com for more information. Specification You need the following in order for myUplink to be able to communicate with your VVM S330: • wireless network or network cable • Internet connection •...

  • Page 34: Control - Introduction

    For hard switch off: press and hold the on/off button for 5 seconds. To activate emergency mode when VVM S330 is switched off: press and hold the on/off button (SF1) for 5 seconds. THE STATUS LAMP (Deactivate the emergency mode by pressing once.)

  • Page 35: Navigation

    Navigation FACTORY SETTING Factory set values are marked with *. VVM S330 has a touchscreen where you simply navigate by pressing and dragging with your finger. SELECT Most options and functions are activated by lightly pressing on the display with your finger.
  • Page 36 Current temperature The drop-down menu shows the current status for Set temperature VVM S330, what is in operation and what VVM S330 is doing Works to set temperature at the moment. The functions that are in operation are highlighted with a frame.

  • Page 37: Climate Systems And Zones

    This example shows a property with two climate systems (1 and 2, two separate floors) divided into four zones (1-4, four My system different rooms). Temperature and demand-controlled Connection ventilation can be controlled individually for each zone (ac- cessory required). NIBE VVM S330 Chapter 8 | Control - Introduction...

  • Page 38: Control - Menus

    A slow climate system, such as underfloor heating, may be unsuitable for controlling with room sensors. Some outdoor units require cooling to be activated in menu 7.3.2.1. Accessories for the indoor unit are needed to run cooling, 4-pipe. Chapter 9 | Control – Menus NIBE VVM S330...
  • Page 39 Setting range: on/off an even indoor temperature, regardless of the outdoor temperature. It is from this heating curve that VVM S330 Here, you select the zone to which a sensor will belong. It is determines the temperature of the water to the climate possible to connect multiple room sensors to each zone.
  • Page 40 Wait 24 hours before making a new setting, so that Set the minimum temperature on the supply temperature the room temperature has time to stabilise. to the climate system. This means that VVM S330 never calculates a temperature lower than that set here. MENU 1.30.2 - CURVE, COOLING If there is more than one climate system the setting can be made separately for each system.
  • Page 41 Here, you set the highest supply temperature for the climate system. This means that VVM S330 never calculates a tem- perature higher than the one set here. If it feels cold in the house at e.g. -2°C, "outdoor temp. point" is set to "-2" and "change in curve" is...

  • Page 42: Menu 2 - Hot Water

    The remaining time for the selected setting is shown to the right. Set hot water circulation for up to five periods per day here. When the time has run out, VVM S330 returns to the set During the set periods, the hot water circulation pump will demand mode.

  • Page 43: Menu 3 - Info

    MENU 3.5 - PRODUCT INFO, SUMMARY Here, you can see general information about your system, such as software versions. MENU 3.6 - LICENCES You can view licences for open source code here. NIBE VVM S330 Chapter 9 | Control – Menus...

  • Page 44: Menu 4 - My System

    You can deselect this function when you do not Setting options: Heating wish to have the cooling running. The operating mode for VVM S330 is normally set to "Auto". Caution It is also possible to select operating mode "Add. heat only".
  • Page 45 Setting range: on/off Factor Setting range: 0 – 10 You can select whether you want VVM S330 to adjust the indoor climate based on the weather forecast here. You can set factor for outdoor temperature. The higher the value, the greater the effect from the weather forecast.
  • Page 46 Setting options: Price per kWh / CO2 MENU 4.11 - TOOLS If Smart Energy Source™ is activated, VVM S330 prioritises how/to what extent each docked energy source will be used. Here, you can find tools for use.
  • Page 47 All settings that are available to the user (including advanced menus) can be reset to default values here. Caution After the factory setting, personal settings such as the heating curve must be reset. NIBE VVM S330 Chapter 9 | Control – Menus...

  • Page 48: Menu 5 - Connection

    All settings made since opening the menu can be reset by selecting "Reset". MENU 5.4 – WIRELESS UNITS In this menu you connect wireless units, and manage set- tings for connected units. Chapter 9 | Control – Menus NIBE VVM S330...

  • Page 49: Menu 6 - Scheduling

    If a room sensor is not activated, the desired offset of the heating curve is set. One step is usually enough to change the room temperature by one degree, but in some cases several steps may be required. NIBE VVM S330 Chapter 9 | Control – Menus...

  • Page 50: Menu 7 - Service

    1 Consult the accessory’s Installer Manual. MENU 7.1 - OPERATING SETTINGS Make operating settings for the system here. MENU 7.1.1 - HOT WATER This menu contains advanced settings for hot water opera- tion. Chapter 9 | Control – Menus NIBE VVM S330...
  • Page 51 Auto: The heating medium pump runs according to the dium pump manually, you set the desired pump speed here. current operating mode for VVM S330. Minimum permitted speed: Here, you can restrict the pump Intermittent: The heating medium pump starts approx. 20 speed to ensure that the heating medium pump is not al- seconds before and stops 20 seconds after the compressor.
  • Page 52 This menu contains sub-menus where you can make ad- vanced settings for heating operation. If you choose not to activate "Manually selected power at DOT", the setting is made automatically, i.e. VVM S330 cal- MENU 7.1.6.1 - MAX DIFF SUPPLY TEMP culates suitable power at DOT.
  • Page 53 You make your various system settings for your installation Setting range: on/off here. MENU 7.1.10.1 - OPERATING PRIORITISATION Select how you want the VVM S330 to alert you that there is an alarm in the display here. Auto mode The different alternatives are that VVM S330 stops produ- Setting option: on/off cing hot water and/or reduces the room temperature.
  • Page 54 Time betw. cooling and heating: Here, you can set how long Here, you tell VVM S330 which accessories are installed. VVM S330 will wait before it returns to heating mode when To identify connected accessories automatically, select the cooling demand has ceased or vice versa.
  • Page 55 Here, you can choose to activate the screen lock for MENU 7.4 - SELECTABLE IN/OUTPUTS VVM S330. During activation, you will be asked to enter the Here, you state where the external switch function has been required code (four digits). The code is used when: connected, either to one of the AUX inputs on terminal block •...
  • Page 56 MENU 7.7 - START GUIDE When VVM S330 is started for the first time, the start guide is automatically activated. From this menu, you can start it manually. MENU 7.8 - QUICK START You can quick start the compressor here.

  • Page 57: Service

    You can activate the emergency mode both when VVM S330 is running and when it is switched off. Caution To activate when VVM S330 is running: press and hold the This does not drain the UKV vessel. When draining on/off button (SF1) for 2 seconds and select "emergency the UKV vessel, a siphon needs to be used in the mode"...
  • Page 58 Restore settings: Here, you upload all menu settings from Here you can choose how current measurement values from the USB memory stick. VVM S330 should be saved onto a log file on the USB memory. Caution Set the desired interval between loggings.
  • Page 59 From this menu, you can save your energy logs to a USB memory. MODBUS TCP/IP VVM S330 has built-in support for Modbus TCP/IP, which is activated in menu 7.5.9 - "Modbus TCP/IP". TCP/IP settings are set in menu 5.2 - "Network settings".

  • Page 60: Disturbances In Comfort

    Disturbances in comfort Troubleshooting In most cases, VVM S330 notes a malfunction (a malfunction can lead to disruption in comfort) and indicates this with If the operational interference is not shown in the display alarms, and instructions for action, in the display.
  • Page 61 7.1.10.2 - "Auto mode setting". mand. – If mode "Manual" is selected, select "Heating". If this is – VVM S330 does not call on heating, hot water or cooling. not enough, also select "Additional heat ". • Compressor blocked due to the temperature conditions.

  • Page 62: Accessories

    5 kW, 1 x 230 V 8 kW, 1 x 230 V Part no. 069 025 Part no. 069 026 This accessory can be used to create a larger area under VVM S330. Part no. 067 152 ELK 15 ELK 26...
  • Page 63 Part no. 080 330 TOP CABINET TOC 30 Top cabinet, which conceals any pipes/ventilation ducts. Height 245 mm Height 345 mm Part no. 067 517 Part no. 067 518 Height 385-635 mm Part no. 067 519 NIBE VVM S330 Chapter 12 | Accessories...

  • Page 64: Technical Data

    Technical data Dimensions Dimensions, indoor unit Chapter 13 | Technical data NIBE VVM S330...

  • Page 65: Technical Specifications

    069 250 This applies at a tap flow of 10 l/min. Enclosed filterball valve (QZ2) is 120 mm tall. VVM S330 1x230 V has both enclosed non-return valve (RM1) and filterball valve (QZ2) which together are 190 mm tall. With feet removed, the height is approx. 1,940 mm.

  • Page 66: Electrical Circuit Diagram

    Electrical circuit diagram 1X230 V Chapter 13 | Technical data NIBE VVM S330...
  • Page 67 NIBE VVM S330 Chapter 13 | Technical data...
  • Page 68 Chapter 13 | Technical data NIBE VVM S330...
  • Page 69 NIBE VVM S330 Chapter 13 | Technical data...
  • Page 70 3X400 V Chapter 13 | Technical data NIBE VVM S330...
  • Page 71 NIBE VVM S330 Chapter 13 | Technical data...
  • Page 72 Chapter 13 | Technical data NIBE VVM S330...
  • Page 73 NIBE VVM S330 Chapter 13 | Technical data...

  • Page 74: Item Register

    Draining the hot water heat exchanger, 57 Manage alarm, 60 Marking, 4 Electrical addition - maximum output, 26 Menu 1 - Indoor climate, 38 Power steps of the immersion heater, 26 Menu 2 - Hot water, 42 Electrical circuit diagram, 66 Item register NIBE VVM S330...
  • Page 75 Draining the hot water heat exchanger, 57 Settings, 26 Emergency mode, 27 Setting the cooling/heating curve, 31 Standby mode, 27, 57 Start guide, 30 Start-up and inspection, 30 Pump speed, 31 Supplied components, 7 Supply voltage, 20 Symbol key, 13 NIBE VVM S330 Item register...

  • Page 79: Contact Information

    Tel: +48 (0)85 66 28 490 Hannabadsvägen 5, 285 21 Markaryd Tel. +41 (0)58 252 21 00 biawar.com.pl Tel: +46 (0)433-27 30 00 info@nibe.ch info@nibe.se nibe.ch nibe.se For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information.
  • Page 80 WS release date: 2023-04-03 13:12 Publish date: 2023-05-11 15:10 This is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this publication.
