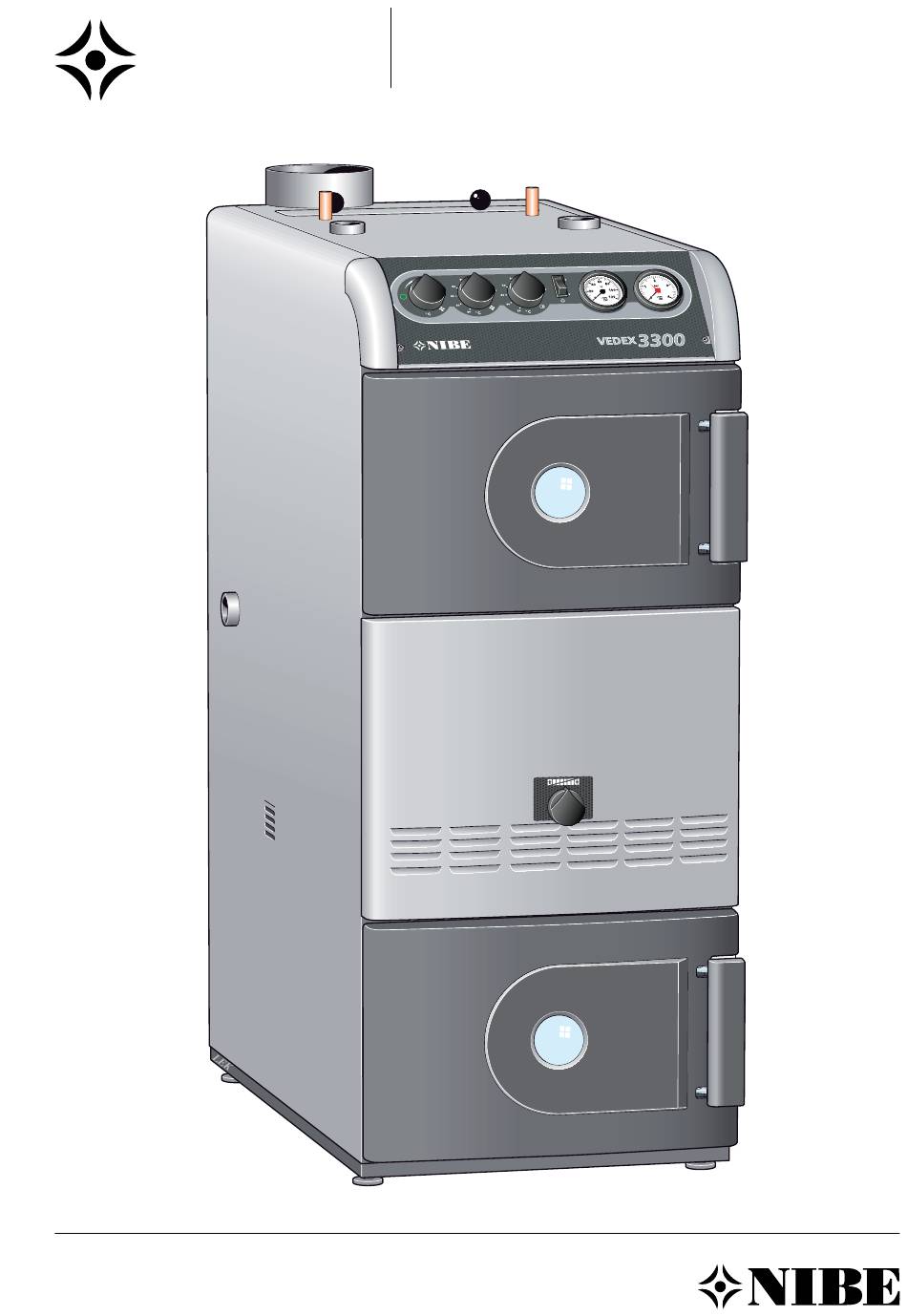

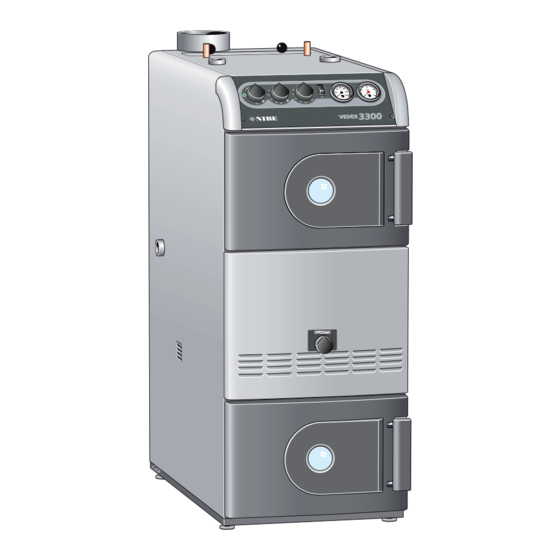

- Page 1 MOS GB 1248-1 INSTALLATION AND MAINTENANCE INSTRUCTIONS VEDEX 3300 VEDEX 3300 231312...
-
Page 3: Table Of Contents
Cover plate ______________________________________ 16 Charge and circulation pump _______________________ 5 Other information Sweeping ________________________________________ 5 Sweeping description ______________________________ 5 Pellet firing in VEDEX 3300 General instructions ________________________________ 6 Installation and sealing ____________________________ 17 Primary air control _________________________________ 6 Turbulators ______________________________________ 17... -
Page 4: For Home Owners
For Home Owners General Thank you for relying on NIBE to supply your boiler and congratulations on choosing VEDEX 3300, a high quality wood boiler with a long service life, developed and manufactured in Sweden for Swedish conditions. In order to get the ultimate benefit from VEDEX 3300 you should read through these Installation and Maintenance Instructions. -
Page 5: System Diagram
ACCU NOTE! This is an outline diagram. Actual installations must be planned according to applicable standards. Area of use Abbreviations NIBE VEDEX 3300 is a boiler intended for heating houses Shut-off valve and other small buildings. Draining valve The boiler is environmentally approved for wood firing to Non-return valve the accumulator tank. - Page 6 To prevent stationary losses Boiler pressure gauge via VEDEX 3300, reconnection to charge control without thermal valve is recommended. The flue gas thermostat, The boiler’s pressure is displayed here. The gauge is gradu- together with the charge thermostat, then starts and stops ated 0 - 4 bar with a red mark at 1.5 bar.
-
Page 7: Charge And Circulation Pump
Also see ”For the chimney sweep”, under ”Sweeping” . Clean the chamber. ■ Position the trough and close the door. ■ NOTE! Ash can still contain glowing embers after a long period of time. Therefore, always use a non-inflammable container when empty- ing ash and soot. VEDEX 3300... -
Page 8: General Instructions
375,0 and efficiency of the boiler. Adjust the size of the wood to fit the hearth. Suitable 11,0 48,0 length of chopped wood for VEDEX 3300 is 0.5m. 115,0 164,0 The wood is placed on the ceramic grate. 208,0 The combustion process works by reverse combustion... -
Page 9: Wood Firing
The speed of the fan now slows and normal operation is resumed. VEDEX 3300 is designed for 0.5 m long pieces of wood. If the wood burns as in Stack the wood well when adding. Place the logs so that... -
Page 10: For The Installer
VEDEX 3300 has a vertical flue pipe connection with an Assembly external diameter of 133 mm. Angled flue pipe supplied as VEDEX 3300 has inlets for primary air at the front and standard. secondary air on the sides of the boiler. Therefore, always... -
Page 11: Installing Ceramics
(C) and (D) followed by stones (E) and (F). Flame trough Open the combustion chamber door. Slide in the flame trough (A) on its guides under the ceramic grate. NOTE! The trough must be slid all the way into the cham- ber. VEDEX 3300... -
Page 12: Pipe Installation
The draining valve is installed next to connection (84). Drain by connecting a hose to the draining valve. Cooling coil VEDEX 3300 is supplied with cooling coil (22) for connec- tion to a temperature limiting valve. Refer to the manufac- turer’s instructions when installing. -
Page 13: Docking To The Accumulator
When the boiler’s temperature exceeds the set charge there is a risk of condensation. temperature (for example, 75°C) the charge pump starts, which then transfers heat from the boiler to the accumula- tor. The thermal valve ensures that the water temperature VEDEX 3300... - Page 14 The expansion vessel volume must be dimensioned accord- ing to the applicable norms. WARNING! Closed expansion vessel and emergency cooling presupposes there being sufficient cold water supply in event of, for example, a power cut. VEDEX 3300...
-
Page 15: Electrical Installation
Switch (45) set in position ”0” means that the boiler is off. Connection Position ”1” is the normal operating position. VEDEX 3300 must be installed via an isolator switch with a minimum breaking gap of 3 mm or be supplied with a With thermal valve suitable plug connector. -
Page 16: Wiring Diagram
For the Installer Wiring diagram Wiring diagram VEDEX 3300... -
Page 17: Service
Service Sweeping description Remove the cover from the top of the boiler. The fan is a central part of VEDEX 3300 and should be ■ treated with care. The fan should be removed and cleaned Lift out the turbulators from the convection part. -
Page 18: Cover Plate
Remove the soot door. ■ Insert the cover plate over the hole as illustrated. ■ Reinstall the soot door to prevent soot exiting when sweeping. ■ Do not forget to remove the cover plate when sweeping is complete. ■ VEDEX 3300... -
Page 19: Pellet Firing In Vedex 3300 Installation And Sealing
Lift out the turbulators from the convection part. • Sweep the convection part. • Reinstall the turbulators. • Reinstall the soot door. Accessories • Pellet burner hatch VEDEX 3300 Part no.: 089 878 • Pellet connector/Hatch Part no.: 089 869 VEDEX 3300... -
Page 20: Component Location, Boiler Section
Other information Component locations 53,5 Ø 52,8 Component location, boiler section Hål 11,5x29 3 st hål ø36 Hål Hål ål ø6 11,0 48,0 115,0 164,0 208,0 267,6 327,0 345,3 369,5 375,0 Component location, front panel VEDEX 3300... -
Page 21: List Of Components
Return connection, or drain connection R32 int Angled flue pipe,(standard) Vertical flue pipe, (accessory) Flue gas connection Ø 133 ext. Hatch handle Fan transformer Fan capacitor 100 Secondary air intake (min. 1 m from combustible material on both sides) VEDEX 3300... -
Page 22: Dimensions
250 mm wall: 250 mm R32 inv. R32 int. Ø133 utv. Ø133 ext. Ø15 utv. Ø15 utv. Ø15 ext. Ø15 ext. R25 inv. R32 inv. R32 int. R25 int. Measuring principle Inv gänga Klämring Compression ring Int thread Klemmring VEDEX 3300... -
Page 23: Enclosed Kit
Ø int. 125 mm Ø ext 133 mm Length 750 mm Pellet burner NIBE PB 10 RSK no. 621 07 39 Robust screw fed burner for pellet firing. RSK no. 637 39 94 Pellet burner hatch incl. pellet connector Part No. 618 904 Designed to replace the combustion chamber. -
Page 24: Technical Data/Technical Specifications
* Max. output: 40 kW. Nominal output: 35 kW = Average output over 4 hours with chimney draught of 15 Pa, wood moisture: 16 %. The boiler is designed for heating systems with pump circulation. Manufactured according to applicable norms. All dimensions in mm. We reserve the right to make changes to designs. VEDEX 3300... - Page 25 Other information VEDEX 3300...
- Page 26 Other information VEDEX 3300...
- Page 28 Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: info@nibe.fi www.nibe.fi AIT France, 10 rue des Moines, 67500 Haguenau Tel : 03 88 06 24 10 Fax : 03 88 06 90 15 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk www.nibe.co.uk...
