SIT 1246-4

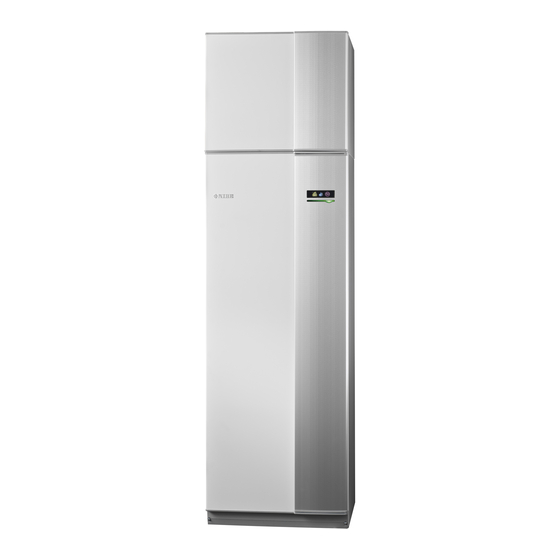

NIBE F1X26/F1X45/FX70/-
F750/VVM500
031783
SE
SERVICEINSTRUKTION - Byte grundkort, NIBE F1X26/F1X45/FX70/F750/VVM500.
GB
SERVICE INSTRUCTION - Replacing the base card, NIBE F1X26/F1X45/FX70/F750/VVM500.
DE
SERVICE- INSTRUKTION - Basisplatinenwechsel, NIBE F1X26/F1X45/FX70/F750/VVM500.
NIBE F1X26/F1X45/FX70/-
F750/VVM500

Advertisement

loading
Need help?

Need help?

Do you have a question about the F1X26 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nibe F1X26

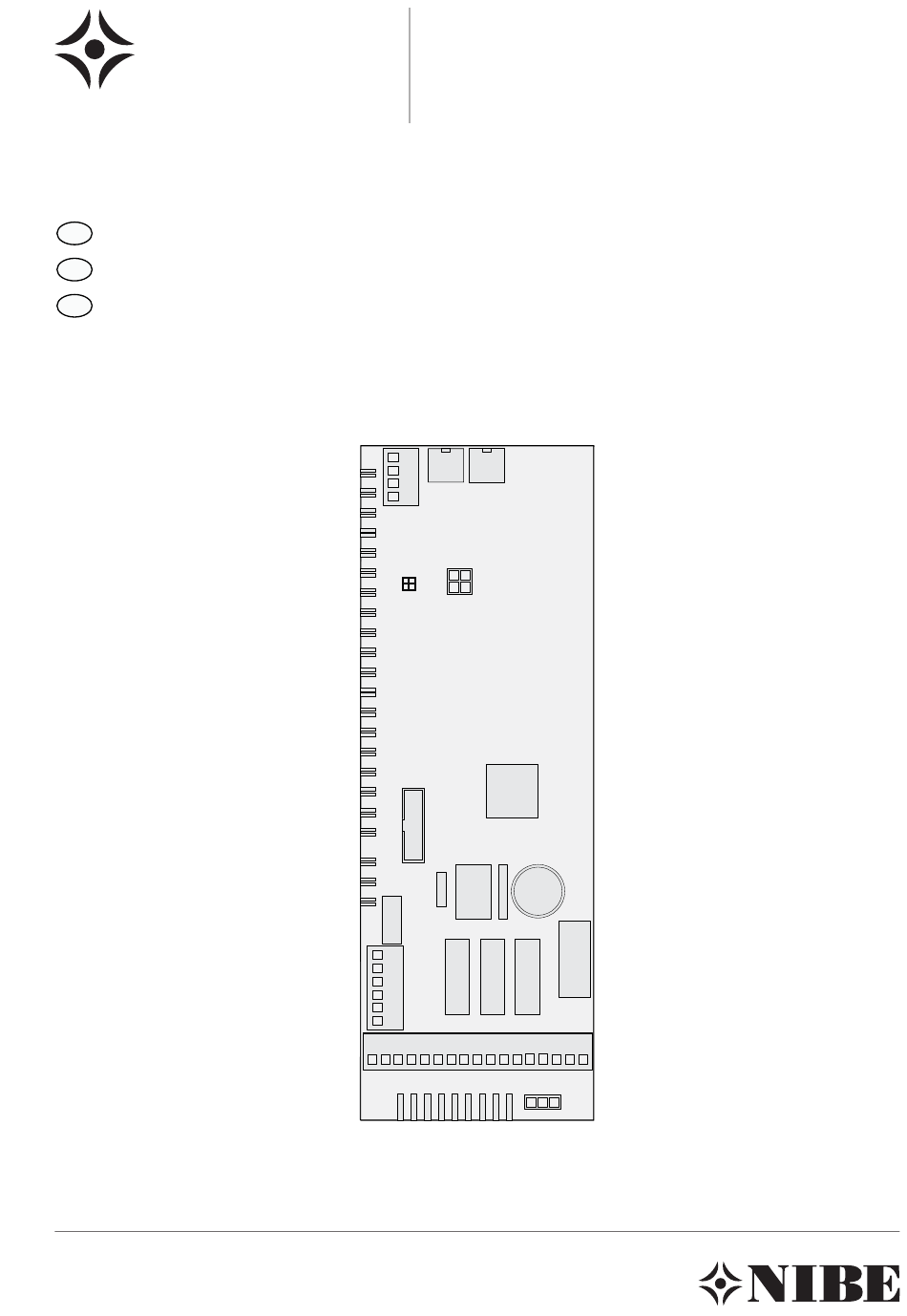

  • Page 1 SIT 1246-4 NIBE F1X26/F1X45/FX70/- NIBE F1X26/F1X45/FX70/- F750/VVM500 031783 F750/VVM500 SERVICEINSTRUKTION - Byte grundkort, NIBE F1X26/F1X45/FX70/F750/VVM500. SERVICE INSTRUCTION - Replacing the base card, NIBE F1X26/F1X45/FX70/F750/VVM500. SERVICE- INSTRUKTION - Basisplatinenwechsel, NIBE F1X26/F1X45/FX70/F750/VVM500.
  • Page 3 Elinkoppling OBS! All elektrisk inkoppling skall ske av behörig elektriker. Elektrisk installation och ledningsdragning skall utföras enligt gällande bestämmelser. NIBE F1X26/F1X45/FX70/F750/VVM500 skall vara spänningslös vid byte av grundkort. 1. Gör värmepumpen/innemodulen spänningslös. 2. Anslut ESD-skyddsarmband och hantera grundkortet enligt serviceinstruktion.
  • Page 4 Bygel på AA2-X14:1-2 flyttas över till det nya kortet i de fall värmepumpen är en F1145 15 eller 17 kW med Wilo värmebä- rarpump. F1345 Bygel på AA2-X4:14-15 eller AA26-X4:14-15 (beroende på vilket kort som ska bytas ut) flyttas över till det nya kortet. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 5 F1226/F1245 Bygel på AA2-X4:14-15 flyttas över till det nya kortet. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 6 F370 F470 Bygel på AA2-X14:1-2 flyttas över till det nya kortet. Eventuella byglar på AA2-X4 eller AA2-X14 ska inte flyttas över till det nya kortet. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 7 Byglar på AA2-X14:1-2 samt AA2-X4:14-15 flyttas över till det nya kortet. Kommunikationskortet (AA23) flyttas över till det nya kortet. OBS! Använd ett plastverktyg när du försiktigt lossar kom- munikationskortet (AA23) från grundkortet (AA2). Om inte finns det risk att kortet kan skadas. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 8: Electrical Connection

    All electrical connections must be carried out by an authorised electrician. Electrical installation and wiring must be carried out in accordance with the stipulations in force. NIBE F1X26/F1X45/FX70/F750/VVM500 must not be powered when replacing the base card. 1. Disconnect the power from the heat pump/indoor module.
  • Page 9 The jumper on AA2-X14:1-2 must be transferred to the new card if the heat pump is a F1145 15 or 17 kW with Wilo heating medium pump. F1345 The jumper on AA2-X4:14-15 or AA26-X4:14-15 (depending on the card to be replaced) must be transferred to the new card. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 10 F1226/F1245 Transfer the jumper on AA2-X4:14-15 to the new card. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 11 F370 F470 Transfer the jumper on AA2-X14:1-2 to the new card. Any jumpers on AA2-X4 or AA2-X14 must not be trans- ferred to the new card. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 12 Transfer the communication card (AA23) to the new card. NOTE Use a plastic tool when carefully detaching the com- munication card (AA23) from the base card (AA2). If this is not done there is a risk of damaging the card. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 13: Elektrischer Anschluss

    SERVICEANLEITUNG NIBE F1X26/F1X45/FX70/F750/VVM500 Allgemeines Diese Serviceanleitung beschreibt den Wechsel der Basispla- tine (AA2) bei NIBE F1126/F1145/F1226/F1245/F1345/F370/- F470/F750/VVM500. Inhalt 1 St. Grundkarte (AA2) Elektrischer Anschluss HINWEIS! Alle elektrischen Anschlüsse müssen von einem geprüf- ten Elektriker ausgeführt werden. Bei der Elektroinstallation und beim Verlegen der Lei- tungen sind die geltenden Vorschriften zu berücksich-...
  • Page 14 Steckbrücken an AA2-X14:1-2 werden zur neuen Platine umgesetzt, wenn als Wärmepumpe eine F1145-Einheit mit 15 oder 17 kW mit Wilo-Heizungsumwälzpumpe zum Einsatz kommt. F1345 Steckbrücken an AA2-X4:14-15 oder AA26-X4:14-15 (je nach zu wechselnder Platine) werden zur neuen Platine umgesetzt. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 15 F1226/F1245 Umstecken der Kantenkontaktbügel von AA2-X4:14-15 auf die neue Platine. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 16 F370 F470 Umstecken der Kantenkontaktbügel von AA2-X14:1-2 Etwaige Steckbrücken an AA2-X4 oder AA2-X14 sind auf die neue Platine. nicht zur neuen Platine umzusetzen. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 17 Steckbrücken an AA2-X14:1-2 und AA2-X4:14-15 sind zur neuen Platine umzusetzen. Die Kommunikationsplatine (AA23) wird zur neuen Platine umgesetzt. HINWEIS! Verwenden Sie ein Kunststoffwerkzeug, um die Kom- munikationsplatine (AA23) vorsichtig von der Basispla- tine (AA2) zu lösen. Andernfalls kann die Platine be- schädigt werden. NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 18 NIBE F1X26/F1X45/FX70/F750/VVM500...
  • Page 20 Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: info@nibe.fi www.nibe.fi AIT France, 10 rue des Moines, 67500 Haguenau Tel : 03 88 06 24 10 Fax : 03 88 06 90 15 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk www.nibe.co.uk...
