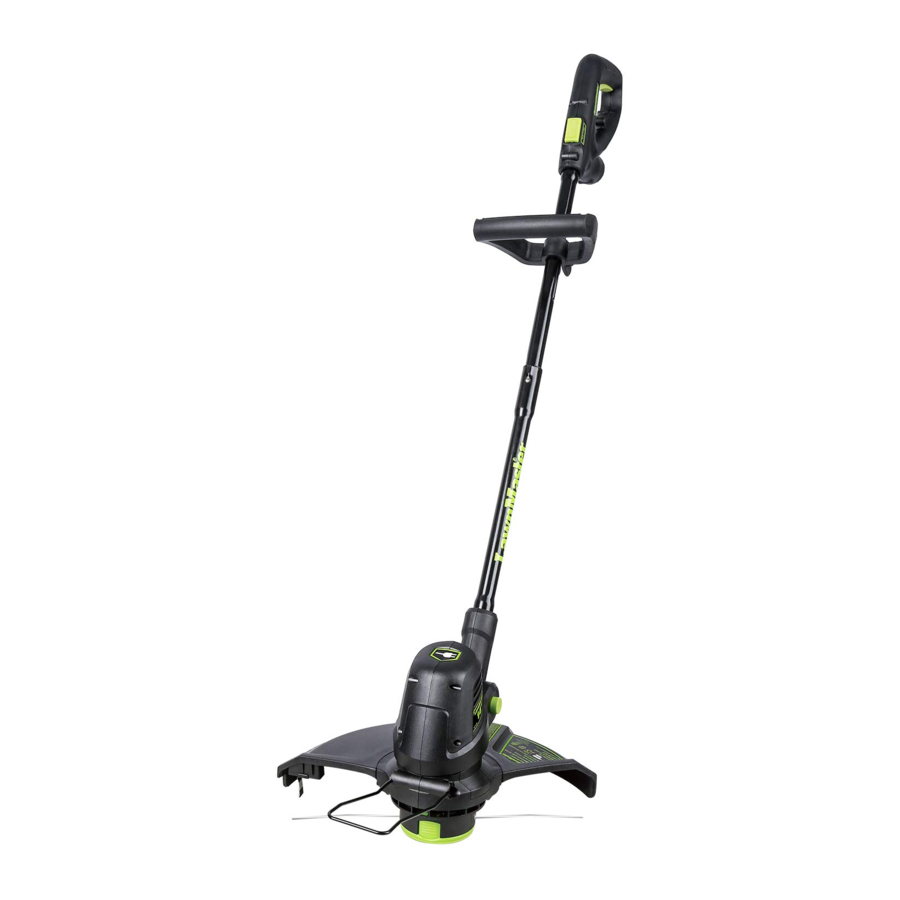

LawnMaster GT1454 - Electric Trimmer Manual
![]()
PRODUCT SPECIFICATIONS
14" GRASS TRIMMER |
Type | Corded |
Voltage | 120 V~60Hz |
Amp | 5.5 A |
Speed | 8000 RPM |
Line Size | 0.065" (1.6mm) |
Cutting Swath | 14" (355mm) |
Net Weight | 5.78 lbs (2.6 kg) |
GENERAL SAFETY RULES
![]()
READ ALL INSTRUCTIONS AND SAVE THESE INSTRUCTIONS.
When using the grass trimmer the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the grass trimmer. Do not use the grass trimmer without reading the instruction sheet. Please keep the instructions safe for later use.
- This grass trimmer is designed for cutting grass, soft vegetation, and for edging.
- The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as well as in agriculture and forestry.
- This grass trimmer is not allowed to be used for cutting or chopping, otherwise, there is a risk of injury. For example:
- Hedges, shrubs and bushes,
- Flowers,
- In terms of composting.
- Never allow children or people unfamiliar with these instructions to use the trimmer.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
- Stop using the grass trimmer while people, especially children, or pets are nearby.
- Only use the grass trimmer in daylight or good artificial light.
- Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the gardening appliance. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
- Before using the grass trimmer and after any impact, check for signs of wear or damage and repair as necessary.
- Never operate the grass trimmer with damaged guards or without the guards in place.
- Keep hands and feet away from the cutting means at all times and especially when switching on the motor.
To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A or SJTOW-A. - Keep proper footing and balance at all times.
- Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the grass trimmer to its normal operating position before switching on.
- Never fit metal cutting elements.
- Never use replacement parts or accessories not provided or recommended by the manufacturer.
- Disconnect the grass trimmer from the outlet before checking, cleaning or working on the grass trimmer and when it is not in use.
- Only use identical replacement parts when servicing a tool with double insulation. Servicing should be performed by a qualified technician.
- Always ensure that ventilation openings are kept clear of debris.
- Avoid unintentional starting. Do not carry plugged-in appliance with finger on switch.
- Do not abuse the cord. Never carry appliance by the cord or yank it to disconnect from outlet.
Keep the cord from heat, oil, and sharp edges. - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR DEVICE
- Do not expose to moisture.
- Use only on AC outlets supply voltage shown on the product rating label.
- Avoid operating your trimmer in wet grass, where feasible.
- Do not use in rain.
- On slopes, be extra careful of your footing and wear nonslip footwear.
- Do not walk backwards when trimming, you could trip.
- Always walk when operating the trimmer, never run.
- Switch the trimmer off before going over surfaces other than grass.
- Never pick up or carry a trimmer by the cord.
- Do not lean over the trimmer guard as objects may be throw by the cutting line.
- Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.
- To avoid the risk of injury keep fingers and hands clear of the line cutter on the leading edge of the guard.
- After use, disconnect the machine from the outlet and check for damage
- When not in use, tools should be stored indoors in a dry and high, or locked-up place – out of reach of children.
- Corded powered trimmers should only be repaired by an authorized technician.
- Use only manufacturer's recommended replacement parts and accessories.
- The preparation for use, operation and maintenance of the appliance:
- Keep cutting edge sharp and clean for best performance and to reduce the risk of injury.
Follow instructions for lubricating and changing accessories. Inspect appliance cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease. - Read the instructions carefully.
- Be familiar with the controls and proper use of the equipment.
- Before use check the supply and extension cord for signs of damage or aging.
- If the cord becomes damaged during use, disconnect the cord from the power supply immediately.
- Do not use the trimmer if the cords are damaged or worn.
![]()
- Cutting elements continue to rotate after the motor is switched off;
- Keep extension cords away from cutting elements.
![burn hazard]()
![]()
![burn hazard]()
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR GRASS TRIMMER IS WIRED AT THE FACTORY FOR 120V OPERATION. CONNECT TO A 120 V, 15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS WORN, CUT OR DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.
DOUBLE INSULATED
This grass trimmer has a plug. The grass trimmer is double insulated to provide a double thickness of insulation between you and the tool's electrical system. All exposed metal parts are isolated from the internal metal motor components with protective insulation.
![]()
![]()
USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING THE GRASS TRIMMER, TO AVOID INJURY.
![]()
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS GRASS TRIMMER.
![]()
ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED.
IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.
![]()
THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause overheating. The table below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(Using 120 V only)
| Total Length of Cord in Feet (meters) |
120V | 25ft (7.62m) | 50ft (15.24m) | 100ft (30.48m) | 150ft (45.72m) |
Ampere Rating | AWG |
More Than | Not More Than |
0 | 6 | 18 | 16 | 16 | 14 |
6 | 10 | 18 | 16 | 14 | 12 |
10 | 12 | 16 | 16 | 14 | 12 |
12 | 16 | 14 | 12 | Not Recommended |
Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before use. Keep extension cords away from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12 gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF position and the electric current is identical to that stamped on the motor nameplate. Running at a lower voltage will damage the motor.
![]()
SAVE THESE INSTRUCTIONS.
ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED, THE EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.
KNOW YOUR PRODUCT
The safe use of this product requires an understanding of the information on the product and in this Operator's Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
![LawnMaster - GT1454 - KNOW YOUR PRODUCT KNOW YOUR PRODUCT]()
Components
- Upper Handle
- ON / OFF Switch
- Cord Retainer Hook
- Assist Handle
- Upper Shaft
- Connection Point Locking Pin
- Lower Shaft
- Pivoting Head Button
- Debris Guard
- Trimmer Head W / Line Spool
- Trimming Line
- Flower Guard
- Motor Housing
- Rotational Lock Button
ASSEMBLY
This product requires assembly.
- Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
- Inspect the product carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
- If any parts are damaged or missing, please call the service center.
PACKING LIST
(1) Lower Shaft (with trimmer head and line spool installed)
(1) Upper Shaft
(1) Assist Handle
(1) Bolt
(1) Wing Nut
(1) Debris Guard
(1) Flower Guard
(1) Operator's Manual
![]()
Before assembly, make sure that the grass trimmer is switched off and unplugged.
FITTING THE GUARD
- Fit the debris guard into the slots on the trimmer housing and align the screw holes in the debris guard with those in the trimmer head. Place the guard in position (Fig. 1).
![]()
- Secure the guard with the screws using a phillips screwdriver (Fig. 2).
FITTING THE FLOWER GUARD
- Pull the flower guard wide enough to extend wide enough to fit over the motor housing (Fig. 3).
![LawnMaster - GT1454 - FITTING THE FLOWER GUARD - Step 1 FITTING THE FLOWER GUARD - Step 1]()
- Insert both ends of the steel bar into the recessed cavities on the motor housing (Fig. 4).
![]()
Never use the grass trimmer unless the guard is properly fitted.
FITTING THE ASSIST HANDLE
Loosen and remove the wing nut and bolt from the assist handle.
- Place the assist handle on the upper shaft. Adjust the handle to mount on the index channel as shown (Fig. 5).
![]()
- Along the index channel, slide the assist handle to the most comfortable position (Fig. 6).
![]()
- Insert the bolt in the hole on the assist handle and tighten the wing nut securely (Fig. 7).
JOINING THE UPPER SHAFT TO THE LOWER SHAFT
- Align the upper shaft with the lower shaft.
- Insert upper shaft into the lower shaft and locking pin button into place (Fig. 8).
NOTE: If the button does not release completely in the positioning hole, the shafts are not locked into place. Slightly rotate from side to side until the button is locked into place.
![]()
Never adjust the upper handle while the power head is running. Failure to stop the motor may cause serious personal injury.
PREPARING THE UNIT FOR USE
NOTE: Use only approved outdoor extension cords.
- Attach the outlet end of an extension cord to the plug on the rear of the grass trimmer.
- Route the extension cord through the slot located on the rear of the grass trimmer housing and place underneath the cord retainer.
- To start the grass trimmer, press the on/off switch.
- To stop the grass trimmer, release the on/off switch (Fig. 9).
![]()
If any parts are damaged or missing, do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.
![]()
Do not connect to power supply until assembly is complete.
Failure to comply could result in accidental starting and possible serious personal injury.
![]()
Never attempt to lock the on/off switch in the ON position.
OPERATION
HINT FOR OPTIMUM USE
In order to achieve optimum cutting results, only cut dry grass.
TRIMMING
- Hold the grass trimmer. Gently swing the trimmer from side to side (Fig. 10).
![]()
- When cutting long grass, work in stages from top to bottom in small sections. This will prevent the grass being cut from wrapping around the shaft and spool head.
- If the grass trimmer starts running slowly, reduce the load.
ADJUSTING HEAD ANGLE
NOTE: This trimmer is equipped with a 7-position pivoting head. The head can be adjusted so it is easy to access to areas such as under bushes and garden furniture.
- Depress the pivoting head button and adjust the shaft to the desired angle (Fig. 11).
![]()
- Release the button.
USING THE FLOWER GUARD
If necessary the flower guard can be swung down until it engages. Use the flower guard as shown to cut around delicate plants or flowers (Fig. 12).
![]()
ADVANCING LINE
NOTE: The trimmer is equipped with an auto-feed head.
Do not bump the head or try to advance the line. This will damage the trimmer and void the warranty.
- With the trimmer running, release the on/off switch.
- Wait two seconds, and press the on/off switch.
NOTE: The auto feed function works during the starting and stopping of the trimmer. The line will extend approximately 3/16" with each stop and start of the on/off switch WHILE NOT TRIMMING until the line reaches the length of the grass deflector blade. - It may take up to 10 complete starts and stops to advance the line.
NOTE: After each use, clean the trimmer head with a damp cloth to remove dirt and grime.
EDGING
NOTE: The best method of edging is performed with the upper handle and assist handle rotated 180°.
- Unplug the grass trimmer.
- Press the rotational lock button and rotate the upper handle clockwise (Fig. 13).
![LawnMaster - GT1454 - EDGING - Step 1 - Rotate the upper handle EDGING - Step 1 - Rotate the upper handle]()
- Release button when the upper handle has been rotated 180° to the edging position.
- Rotate assist handle 180° and snap onto index channel (Fig. 13).
- Hold the trimmer with both hands for edging sidewalks and walkways (Fig. 14).
![LawnMaster - GT1454 - EDGING - Step 2 - Edging sidewalks and walkways EDGING - Step 2 - Edging sidewalks and walkways]()
NOTE: The head also can be adjusted to the desired angle for edging.
MAINTENANCE
Your grass trimmer has been designed to operate over a long period of time with minimum maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
![]()
Before performing any maintenance, switch off and unplug the tool.
Regularly clean the ventilation slot in your grass trimmer using a soft brush or dry cloth.
Regularly clean the cutting line and spool using a soft brush or dry cloth.
Regularly remove grass and dirt from the underside of the guard using a blunt scraper.
FITTING A NEW SPOOL
- Unplug the grass trimmer.
- Remove the empty spool (Fig. 15).
- Press the tabs
and remove the spool cover
from the cutting head
. Remove the empty spool
from the cutting head. - Replace with a new spool (Fig. 16).
![]()
- Release both cutting lines from the parking slot and guide the lines into both eyelets
.
The lines should protrude approximately 4" from the eyelets
. - Put the new spool
into the cutting head
. Rotate the spool slightly until it is seated. - Snap the spool cover
on the cutting head
and ensure it is in place (Fig. 17).
![]()
If the cutting lines protrude beyond the trimming blade, cut them off so that they just reach the blade.
WINDING NEW LINE ONTO A SPOOL
- You may wind new cutting lines onto an empty spool.
- Replacement packs of cutting line are available from dealer.
- Remove the empty spool from the grass trimmer as described above.
- Remove any remaining cutting line from the spool.
- Prepare 2 cutting lines
with the same length for winding. There are 4 eyelets
in the spool, 2 eyelets
in the upper section and 2 eyelets
in the lower section (Fig. 18).
![]()
- First feed 4" of cutting lines
into the two eyelets
. Two eyelets
should be in the different sections of spool. - Wind the cutting lines
onto the spool in the direction of the arrow showed on spool. Make sure to wind the lines on neatly and in layers. Do not crisscross (Fig. 19).
![]()
- After winding, fix the end of lines
in the parking slot of the spool (Fig. 20).
- If you want to use, operate as described above to fix the spool on the grass trimmer. Do not forget to release the cutting lines
from the parking slot.
![]()
Only use the appropriate type of cutting line (0.065" round monofilament).
TROUBLESHOOTING
If your grass trimmer does not appear to operate properly, follow the instructions below.
If this does not solve the problem, please contact your local repair agent.
![]()
Before proceeding, switch off the tool and unplug.
PROBLEM | POSSIBLE CAUSE | SOLUTION |
The device does not start | The power cord is not properly connected to power source. | Check that the power cord is properly connected and that there is power going to trimmer. |
Defective on/off switch. | Repair by a qualified personal. |
The device runs slowly | The spool housing is blocked. | Check that the spool housing can rotate freely. Carefully clean it if necessary. |
The cutting line protrudes too long. | Check that the cutting line does not protrude more than 4" from the spool housing. If it does, cut it off so that it just reaches the line trimming blade. |
Unsatisfactory result | The cutting line is worn or damaged. | Replace the spool. |
Automatic line feed does not work | Insufficient cutting line. | Keep the tabs depressed and remove the spool cover from the housing. Pull the cutting line until it protrudes 4" from the housing. If insufficient cutting line is left on the spool, install a new spool of cutting line as instructed in FITTING A NEW SPOOL section. |
The spool is jammed. | Carefully clean the spool cover and housing. Remove the spool and check if the lever can move freely. Remove the spool and unwind the cutting line, then wind it on neatly again as instructed WINDING NEW LINE ONTO A SPOOL section. Replace the spool as instructed. |
WARRANTY
For product service call Customer Service at 1-866-384-8432.
EXPLODED VIEW
![LawnMaster - GT1454 - EXPLODED VIEW EXPLODED VIEW]()
PARTS LIST
ITEM NO. | PART NO. | DESCRIPTION | QTY |
1 | 121065101 | Handle assembly | 1 |
2 | 121065102 | Power cord | 1 |
3 | 121063102 | Connection assembly | 1 |
4 | 121020110 | Switch trigger assembly | 1 |
4.1 | 221001117 | Compression spring | 1 |
5 | 121030110 | Extension Wand Unit | 1 |
5.1 | 121002106 | Compression spring | 1 |
6 | 121064103 | Connection assembly | 1 |
7 | 121064101 | Assistant handle assembly | 1 |
8 | 121065107 | Rotary handle assembly | 1 |
9 | 221004107 | Shaft lock button | 1 |
9.1 | 121002110 | Compression spring | 1 |
10 | 121065103 | Motor housing assembly | 1 |
11 | 121065108 | Motor assembly | 1 |
12 | 121065104 | Cutting head assembly | 1 |
13 | 121058103 | Flower guard | 1 |
14 | 121025107 | Spool assembly | 1 |
15 | 121065105 | Spool cover | 1 |
16 | 121065106 | Protector guard assembly | 1 |
* Parts highlighted in gray are available for after sales purchase.
601 Regent Park Court Greenville, SC 29607, SC 29650 1-866-384-8432
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download LawnMaster GT1454 - Electric Trimmer Manual
Need help?
Do you have a question about the GT1454 and is the answer not in the manual?
Questions and answers
