LawnMaster GT1313 - Electric Trimmer Manual

Read all safety rules and instructions carefully before operating this tool.

PRODUCT SPECIFICATIONS

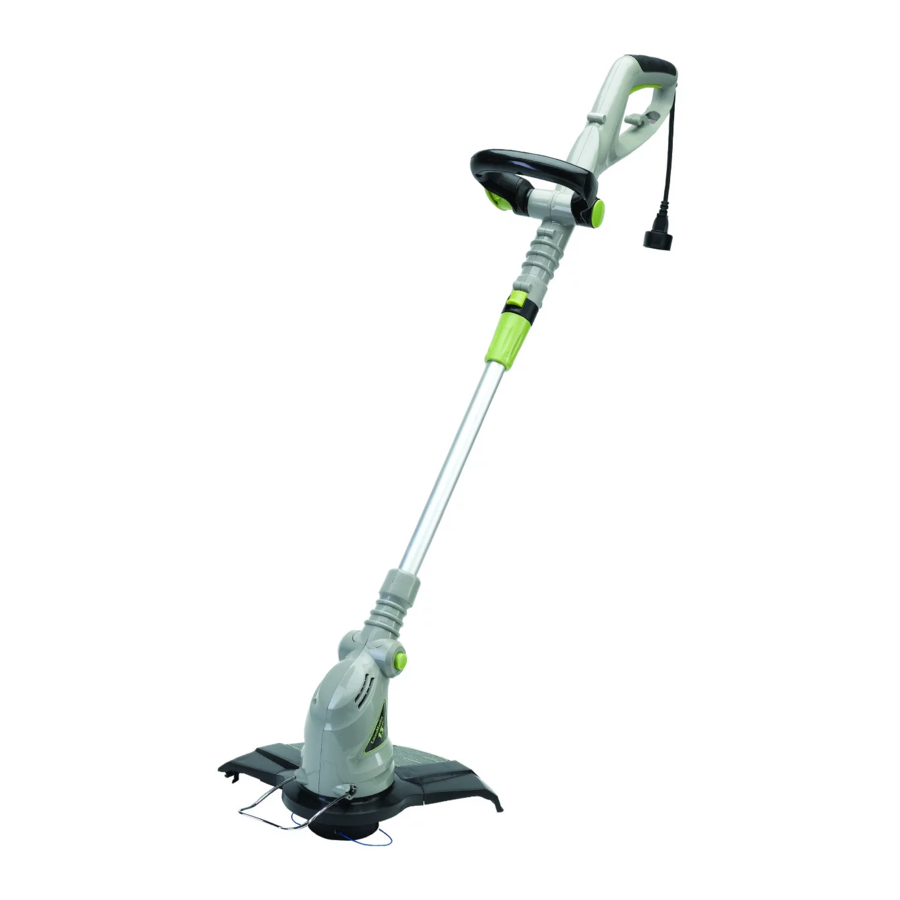

13" CORDED GRASS TRIMMER

KNOW YOUR GRASS TRIMMER

The safe use of this product requires an understanding of the information on the product and in this Operator's Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

Components

1. Upper Handle
2. ON/OFF Switch
3. Cord Retainer Hook
4. Height Adjustment Locking Collar
5. Pivot Head Button
6. Debris Guard
7. Trimming Line
8. Line Spool
9. Flower Guard
10. Motor Housing
11. Rotational Lock Button
12. Assist Handle

ASSEMBLY

This product requires assembly.

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
• If any parts are damaged or missing, please call the service center.

PACKING LIST

(1) Grass Trimmer (with trimmer head and line spool installed)
(1) Assist Handle
(1) Wing Nut with Bolt
(1) Debris Guard (2 halves)
(1) Flower Guard
(1) Operator's Manual
(4) Screws

Before assembly, make sure that the grass trimmer is switched off and unplugged.

INSTALLING THE FLOWER GUARD AND DEBRIS GUARD (See Figs. 1-5)

• Assemble the 2 halves of the debris shield together by aligning and "snapping" together.
• Secure the debris guard with 3 screws. (Fig. 1).

• Position steel flower guard and snap into the debris guard as shown. The flower guard must be placed under the plastic tabs (Fig. 2 & 3).

• With flower guard extended, place entire debris guard with flower guard over the spool head and align it.
• Once aligned, rotate debris/ flower guard assembly so the two screw holes align as shown (Fig. 4 & 5).

• Use remaining screw to fasten the assembly to the motor housing.

FITTING THE ASSIST HANDLE (See Figs. 6-7)

• Place the assist handle on the grass trimmer as shown (Fig. 6).

• Adjust the assist handle to the most comfortable position. Use the marking as a guide.
• Pass the bolt through the assist handle and the upper handle (Fig. 7).

• Screw the nut into the other side of the bolt. Do not over tighten the bolt.

PREPARING THE TRIMMER FOR USE (See Figs. 8-9)

• Turn the adjustment collar clockwise to unlock, you can slide the telescopic tube up or down to achieve comfortable working height (Fig. 8 & 9).

• Turn the adjustment collar counter-clockwise till the shaft locks into place.
• Route the extension cord through the slot located on the rear of the grass trimmer housing and place underneath the cord retainer (Fig. 9).
• To start the grass trimmer, press the ON/OFF switch.
• To stop the grass trimmer, release the ON/OFF switch.

If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.

Do not connect to power supply until assembly is complete.
Failure to comply could result in accidental starting and possible serious personal injury.

Never attempt to lock the on/off switch in the on position.

OPERATION

HINT FOR OPTIMUM USE

In order to achieve optimum cutting results, only cut dry grass.

TRIMMING (See Fig. 10)

• Hold the grass trimmer.
• Gently swing the trimmer from side to side (Fig. 10).

• When cutting long grass, work in stages from hard objects and delicate pants.
• If the grass trimmer starts running slowly, reduce the load.

ADJUSTING HEAD ANGLE (See Fig. 11)

Depress the button and pivot the trimmer head to the lowest position. Once the head is in the 4th position, release the button and the trimmer head will lock into place (Fig. 11).

USING THE FLOWER GUARD (See Fig. 12)

If necessary the flower guard can be pulled from the debris guard as shown. Use the flower guard, for example, to cut around plants (Fig. 12).

IF GRASS WRAPS AROUND THE TRIMMER HEAD

• Stop the trimmer
• Unplug the trimmer.
• Remove the grass.

ADVANCING LINE

NOTE: This trimmer is equipped with an auto-feed head.

Do not bump the head to try to advance the line will damage trimmer and void warranty.

• With the trimmer running, release the ON/OFF switch.
• Wait two seconds, and press the ON/OFF switch.

NOTE: The auto-feed function works during the starting and stopping of trimmer. Line will extend approximately 3/16 in. with each stop and start of ON/OFF switch WHILE NOT TRIMMING until the line reaches the length of the grass deflector blade. It may take up to 10 complete starting and stoppings to advance the line.

MAINTENANCE

Your grass trimmer has been designed to operate over a long period of time with minimum maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Before performing any maintenance, switch off and unplug the tool.

• Regularly clean the ventilation slot in your grass trimmer using a soft brush or dry cloth.
• Regularly clean the cutting line and spool using a soft brush or dry cloth.
• Regularly use a blunt scraper to remove grass and dirt from the underneath the guard.

FITTING A NEW SPOOL HEAD (See Figs. 13-14)

• Unplug the grass trimmer.
• To remove the spool , depress the thumb tabs and remove the spool cover from the housing, then remove the empty spool (Fig. 13).

• Remove any dirt and grass from the spool cover and housing.
• Place the new spool into the housing, Rotate the spool slightly until it is seated (Fig. 14).

• Unclip the end of one of the cutting lines and guide the line into one of the eyelets . The line should protrude approx. 4 inches from the spool housing.
• Unclip the end of the other cutting line and guide the line into the other eyelet. The line should produce approx. 4 inches from the spool housing.
• Align the tabs on the spool cover with the cut outs in the housing.
• Push the cover onto the housing until it snaps securely into place.

If the cutting lines protrude beyond the trimming blade, cut them down to the length of the blade.

WINDING NEW LINE ONTO A SPOOL (See Figs. 15-17)

• Only use.065" replacement line.
• You may wind new cutting line onto an empty spool.
• Replacement packs of cutting line are available from dealer.
• Remove the empty spool from the grass trimmer as described above.
• Remove any remaining cutting line from the spool.
• First feed 4 inches of cutting line into the two eyelets in the upper section of the spool as shown (Fig. 15).

• Wind the cutting line onto the spool in the direction of the arrow. Make sure to wind the line on neatly and in layers. Do not criss-cross (Fig. 16).

• Feed cutting line into the two eyelets in the upper section of the spool as shown (Fig. 17).

• If you want to use, operate as described above to fix the spool on the grass trimmer. Do not forget to release the cutting lines from the parking slot.

Use LawnMaster^® replacement spool; part NO. RS0101

Only use the appropriate type of cutting line.

TROUBLESHOOTING

If your grass trimmer does not appear to operate properly, follow the instructions below.

If the instructions below do not solve the problem, please contact your local service center.

Before proceeding, switch off your grass trimmer and unplug.

EXPLODED VIEW

PARTS LIST

Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or internal parts should only be done by a qualified service professional. Please contact your authorized service dealer or Customer Service at 886-384-8432.

GENERAL SAFETY RULES

READ ALL INSTRUCTIONS AND SAVE THESE INSTRUCTIONS.

When using the grass trimmer the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the grass trimmer. Do not use the grass trimmer without reading the instruction sheet. Please keep the instructions safe for later use.

• This grass trimmer is designed for cutting grass, soft vegetation, and for edging.
• The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as well as in agriculture and forestry.
• This grass trimmer is not allowed to be used for cutting or chopping, otherwise, there is a risk of injury. For example:
  • Hedges, shrubs and bushes,
  • Flowers,
  • In terms of composting.
• Never allow children or people unfamiliar with these instructions to use the trimmer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
• Stop using the grass trimmer while people, especially children, or pets are nearby.
• Only use the grass trimmer in daylight or good artificial light.
• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the gardening appliance. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
• Before using the grass trimmer and after any impact, check for signs of wear or damage and repair as necessary.
• Never operate the grass trimmer with damaged guards or without the guards in place.
• Keep hands and feet away from the cutting means at all times and especially when switching on the motor.
• To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A or SJTOW-A.
• Keep proper footing and balance at all times.
• Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the grass trimmer to its normal operating position before switching on.
• Never fit metal cutting elements.
• Never use replacement parts or accessories not provided or recommended by the manufacturer.
• Disconnect the grass trimmer from the outlet before checking, cleaning or working on the grass trimmer and when it is not in use.
• Only use identical replacement parts when servicing a tool with double insulation. Servicing should be performed by a qualified technician.
• Always ensure that ventilation openings are kept clear of debris.
• Avoid unintentional starting. Do not carry plugged-in appliance with finger on switch.
• Do not abuse the cord. Never carry appliance by the cord or yank it to disconnect from outlet. Keep the cord from heat, oil, and sharp edges.
• It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER

• Do not expose to moisture.
• Use only on AC outlets supply voltage shown on the product rating label.
• Avoid operating your trimmer in wet grass, where feasible.
• Do not use in rain.
• On slopes, be extra careful of your footing and wear nonslip footwear.
• Do not walk backwards when trimming, you could trip.
• Always walk when operating the trimmer, never run.
• Switch the trimmer off before going over surfaces other than grass.
• Never pick up or carry a trimmer by the cord.
• Do not lean over the trimmer guard as objects may be thrown by the cutting line.
• Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.
• To avoid the risk of injury keep fingers and hands clear of the line cutter on the leading edge of the guard.
• After use, disconnect the machine from the outlet and check for damage.
• When not in use, tools should be stored indoors in a dry and high, or locked-up place – out of reach of children.
• Corded powered trimmers should only be repaired by an authorized technician.
• Use only manufacturer's recommended replacement parts and accessories.
• The preparation for use, operation and maintenance of the appliance:
  • Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
  • Read the instructions carefully.
  • Be familiar with the controls and proper use of the equipment.
  • Before use check the supply and extension cord for signs of damage or aging.
  • If the cord becomes damaged during use, disconnect the cord from the power supply immediately.
  • Do not use the trimmer if the cords are damaged or worn.

Cutting elements continue to rotate after the motor is switched off; keep extension cords away from cutting elements.

ELECTRICAL INFORMATION

TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR GRASS TRIMMER IS WIRED AT THE FACTORY FOR 120V OPERATION. CONNECT TO A 120V, 15A CIRCUIT, AND USE A 15A TIME-DELAYED FUSE OR CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS WORN, CUT OR DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.

DOUBLE INSULATED

This grass trimmer has a plug. The grass trimmer is double insulated to provide a double thickness of insulation between you and the tool's electrical system. All exposed metal parts are isolated from the internal metal motor components with protective insulation.

USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING THE GRASS TRIMMER, TO AVOID INJURY.

DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS GRASS TRIMMER.

ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED. IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.

THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause overheating. The table below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

Minimum Gauge for Extension Cords (AWG)
(Using 120 V only)

Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before use. Keep extension cords away from sharp objects, excessive heat and damp or wet areas.

Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12 gauge and should be protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF position and the electric current is identical to that stamped on the motor nameplate. Running at a lower voltage will damage the motor.

SAVE THESE INSTRUCTIONS.
ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED, THE EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL & SIGNAL	MEANING
	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
NOTICE	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 1-866-384-8432
