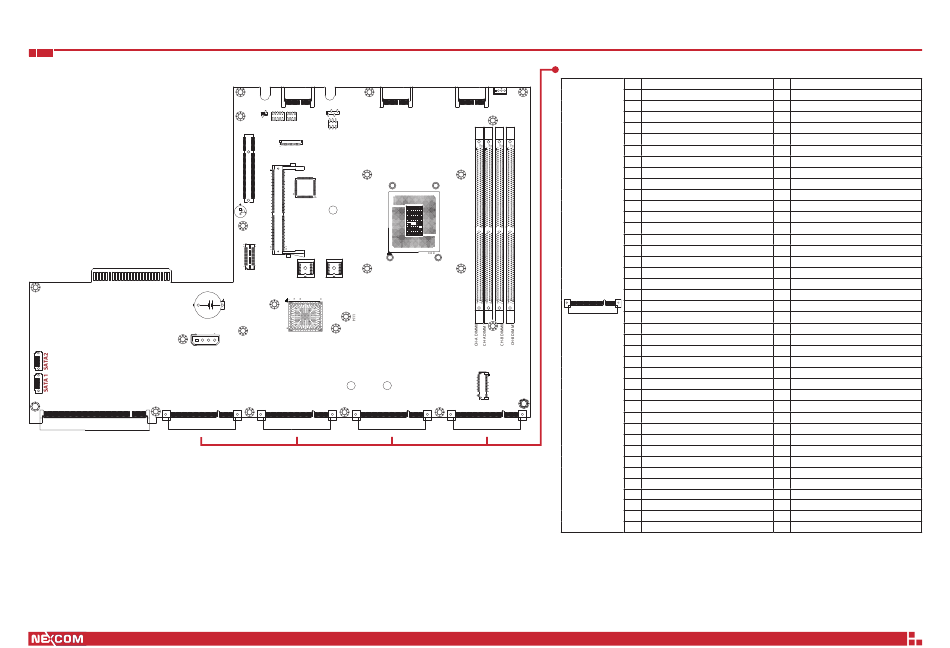

PCIE1, PCIE2, PCIE3, PCIE4: PCIe Slot (for NEXCOM LAN Module)

FAN3
FAN4
H22
1 4
B11 B12 B18 B1 B11 B12 B18
H21
H19
CPU1
52
50
42
40
30
F
20
10
1
A P
H18
B49
H20
NVME1
2
1
74 75 H23 H24
H17
B12 B11 B1 B49 B12 B11 B1
PCIE4
Pin Signal Pin
A1 GND B1
A2 12V B2
A3 12V B3
A4 GND B4
A5 NC B5
A6 NC B6
A7 NC B7
A8 NC B8
A9 3.3V B9
A10 3.3V B10
A11 reset B11
A12 GND B12
A13 CLK B13
A14 CLK B14
A15 GND B15
A16 RXP B16
A17 RXN B17
A18 GND B18
A19 NC B19
B12 B11 B1
A20 GND B20
A21 RXP B21
A22 RXN B22
A23 GND B23
A24 GND B24
A25 RXP B25
A26 RXN B26
A27 GND B27
A28 GND B28
A29 RXP B29
A30 RXN B30
A31 GND B31
A32 NC B32
A33 NC B33
A34 GND B34
A35 RXP B35
A36 RXN B36
A37 GND B37
A38 GND B38
A39 RXP B39
A40 RXN B40
Signal
12V
12V
12V
GND
SMBCLK
SMBDAT
GND
3.3V
NC
3.3V AUX
wake
NC
GND
TXP
TXN
GND
NC
GND
TXP
TXN
GND
GND
TXP
TXN
GND
GND
TXP
TXN
GND
NC
NC
GND
TXP
TXN
GND
GND
TXP
TXN
GND
GND
