Shelly Wave Pro
Dimmer 1PM

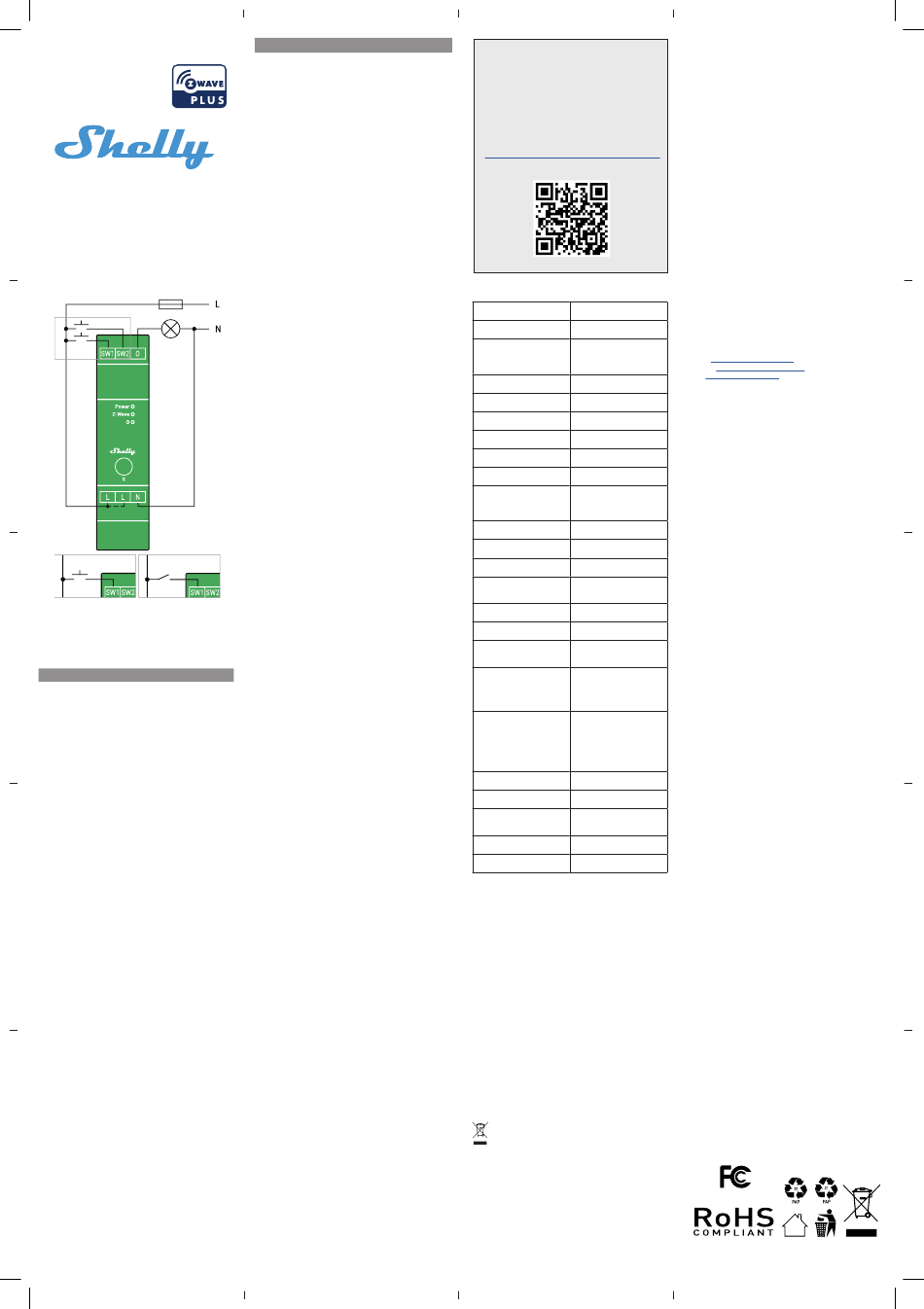

a)
Fig.1/
b) c)
EN
LEGEND
Fig. 1
Device terminals:
• N: Neutral terminal
• L: Live terminal (110–240 V AC)
• SW (SW1): Switch/push-button input terminal (controlling
O (O1))
• SW2: Switch/push-button input terminal
• O (O1): Load circuit output terminal (1)
Wires:
• N: Neutral wire
• L: Live wire (110-240 V AC)
Button:
• S: S button
B2439
EN
USER AND SAFETY GUIDE
DIN-mountable Z-Wave one-channel smart
®
dimmer with power measurement
READ BEFORE USE
This document contains important technical and safety infor-
mation about the Device, its safe use and installation.
Before beginning the installation, please read care-
⚠CAUTION!
fully and entirely this guide and any other documents accompany-
ing the Device. Failure to follow the installation procedures could
lead to malfunction, danger to your health and life, violation of law
or refusal of legal and/or commercial guarantee (if any). Shelly
Europe Ltd. is not responsible for any loss or damage in case of
incorrect installation or improper operation of this device due to
failure of following the user and safety instructions in this guide.
TERMINOLOGY
Gateway – A Z-Wave gateway, also referred to as a Z-Wave
®
controller, Z-Wave main controller, Z-Wave
®
or Z-Wave ® hub, etc., is a device that serves as a central hub for
a Z-Wave smart home network. The term "gateway" is used in
®
this document.
S button - The Z-Wave ® Service button, which is located on
Z-Wave devices and is used for various functions such as in-
®
clusion (adding), exclusion (removing), and resetting the device
to its factory default settings. The term "S button" is used in this
document.
Device – In this document, the term "Device" is used to refer to
the Shelly Wave device that is a subject of this guide.
ABOUT SHELLY WAVE
Shelly Wave is a line of innovative microprocessor-managed
devices, which allow remote control of electric circuits with a
smartphone, tablet, PC, or home automation system. They work
on Z-Wave wireless communication protocol, using a gateway,
®
which is required for the configuration of devices. When the
gateway is connected to the internet, you can control Shelly
Wave devices remotely from anywhere. Shelly Wave devices
can be operated in any Z-Wave ® network with other Z-Wave
certified devices from other manufacturers. All mains operated
nodes within the network will act as repeaters regardless of
vendor to increase reliability of the network. Devices are de-
signed to work with older generations of Z-Wave
gateways.
SHELLY WAVE PRO SERIES
Wave Pro series is a line of devices suitable for homes, offices,
retail stores, manufacturing facilities, and other buildings. Pro
devices are DIN-mountable inside the breaker box, and highly
suitable for new building construction. All Wave Pro devices
can be controlled and monitored through the Z-Wave
ABOUT THE DEVICE
The Device is a DIN-rail mountable, one-channel smart dimmer.
It can work as a standalone or it can also be operated through
Z-Wave home automation. The Device can be accessed, con-
®
trolled, and monitored remotely from any place where the User
has internet connectivity. It is compatible with switches and
push-buttons (default).
INSTALLATION INSTRUCTIONS
The Device can be DIN-mounted inside the breaker box.
For the installation instructions, refer to the wiring scheme (Fig.
1) in this user guide.
Danger of electrocution. Mounting/installation of
⚠CAUTION!
the Device to the power grid has to be performed with caution,
by a qualified electrician.
Danger of electrocution. Every change in the
⚠CAUTION!
connections has to be done after ensuring there is no voltage
present at the Device terminals.
⚠CAUTION! Use the Device only with a power grid and appli-
ances that comply with all applicable regulations. A short circuit
in the power grid or any appliance connected to the Device may
damage it.
Do not connect the Device to appliances exceed-
⚠CAUTION!
ing the given max. load!
⚠CAUTION! Allow at least 10 mm of space around each Pro
device if you expect currents higher than 5 A per channel.
Connect the Device only in the way shown in
⚠CAUTION!
these instructions. Any other method could cause damage and/
or injury.
⚠CAUTION! Do not install the Device where it can get wet.
Do not use the Device if it has been damaged!
⚠CAUTION!
Do not attempt to service or repair the Device
⚠CAUTION!
yourself!
Before starting the mounting/installation of the
⚠CAUTION!
Device, check that the breakers are turned off and there is no
voltage on their terminals. This can be done with a mains volt-
age tester or multimeter. When you are sure that there is no volt-
age, you can proceed to connecting the wires.
Do Not Alter the Antenna (The antenna must not
⚠CAUTION!
be shortened, lengthened, or modified in any way!)
⚠CAUTION! Do Not Interfere with the Device (Any alteration or
modification of the Device is prohibited).
Place the antenna as far away as
⚠RECOMMENDATION:
possible from metal elements as they can cause signal inter-
ference.
The Device may be connected to and control only
⚠CAUTION!
electric circuits and appliances that comply with the applicable
standards and safety norms.
The Device is intended only for indoor use.
⚠CAUTION!
⚠CAUTION! Keep the Device away from dirt and moisture.
Connect the Device only to a power grid and appli-
⚠CAUTION!
ances that comply with all applicable regulations. A short circuit
in the power grid or any appliance connected to the Device can
cause fire, property damage, and electric shock.
⚠CAUTION! The Device and the appliances connected to it,
must be secured by a cable protection switch in accordance
with EN60898-1 (tripping characteristic B or C, max. 10A rated
current, min. 6 kA interrupting rating, energy limiting class 3).
Connect the Device using solid sin-
⚠RECOMMENDATION:
gle-core cables or stranded cables with ferrules. The cables
should have insulation with increased heat resistance, not less
than PVC T105°C (221°F).
⚠RECOMMENDATION: When connecting wires to the Device
terminals, consider the specified conductor cross section and
stripped length. Do not connect multiple wires into a single
terminal.
Do not allow children to play with the push-but-
⚠CAUTION!
tons/switches connected to the Device. Keep the devices for
remote control of Shelly Wave (mobile phones, tablets, PCs)
away from children.
Connect the load to the O terminal of the Device and the Neutral
wire, as shown on Fig. 1.
Connect the Live wire to the Device L terminal, and the Neutral
wire to the N terminal.
If you want to control the dimming with two push-buttons, con-
nect buttons to the SW1 and SW2 terminals, and to the Live wire
as shown in Fig. 1 a).
If you want to control the dimming with a single push-button,
connect the push-button to the SW1 terminal and to the Live
wire as shown in Fig. 1 b).
If you want to just turn the light on or off, connect the switch
to the SW1 terminals and the Live wire as shown in Fig 1 c).
V 0.0.1
EXTENDED USER GUIDE
For more detailed installation instructions,
use cases, and comprehensive guidance on
adding/removing the Device to/from a Z-Wave
network, factory reset, LED signalization,
Z-Wave command classes, parameters, and
®
much more, refer to the extended user guide at:
https://shelly.link/WAVEProDimmer1PM-KB-US
®
primary controller,
®
SPECIFICATIONS
Power supply
Power consumption
External protection
Dimming type
Max. Output power
®
Overheating protection
Overload protection
devices and
®
Overvoltage protection
Power measurement (W)
Distance
network.
®
Z-Wave repeater
®
CPU
Z-Wave frequency bands
®
Size (H x W x D)
Weight
Mounting
Screw terminals max.
torque
Conductor cross section
Conductor stripped length
Shell material
Color
Ambient temperature
Humidity
Max. altitude
OPERATIONAL INSTRUCTIONS
Single button dimming control
Push - Use to toggle On/Off - every push changes the state of
the output.
Double Push - Sets brightness to 100%
Long Push - Use to dim up/down - every push changes the
direction
SUPPORTED LOAD TYPES
• Dimmable LED lamps: up to 200 W
• Incandescent bulbs: up to 200 W
• Halogen lamps: up to 200 W
• Iron-core transformer with low-voltage incandescent lamps:
up to 200 VA
• Dimmable electronic transformers: 200W
IMPORTANT DISCLAMER
Z-Wave wireless communication may not always be 100%
®
reliable. This Device should not be used in situations in which
life and/or valuables are solely dependent on its functioning. If
the Device is not recognized by your gateway or appears incor-
rectly, you may need to change the Device type manually and
ensure that your gateway supports Z-Wave Plus
devices.
DISPOSAL & RECYCLING
This refers to the waste of electrical and electronic equipment.
It is applicable in the US and other countries to collect waste
separately.
This symbol on the product or in the accompanying literature
indicates that the product should not be disposed of in the
daily waste. Shelly Wave Pro Dimmer 1PM must be recycled
to avoid possible damage to the environment or human health
from uncontrolled waste disposal and to promote the reuse of
materials and resources. It is your responsibility to dispose of
the device separately from general household waste when it is
already unusable.
FCC NOTES
• This device complies with Part 15 of the FCC Rules.
• Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
• The manufacturer is not responsible for any radio or TV inter-
ference caused by unauthorized modification or change to this
equipment. Such modifications or change could void the user's
authority to operate the equipment.
• This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
®
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
• RF exposure statement:
-This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. The device has been
evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
ORDERING CODE: QPDM-0A1P01US
110-240 V AC, 50/60 Hz
MANUFACTURER
< 0.3 W
Shelly Europe Ltd.
Address: 103 Cherni vrah Blvd., 1407 Sofia, Bulgaria
10 A, tripping characteristic
Tel.: +359 2 988 7435
B or C, 6 kA interrupting rat-
E-mail: zwave-shelly@shelly.cloud
ing, Energy limiting class 3
Support: https://support.shelly.cloud/
Web: https://www.shelly.com
Changes in the contact data are published by the Manufacturer
trailing edge
at the official website.
200 W
Yes
Yes
Yes
Yes
Up to 40 m indoors (131
ft.) (depends on local
condition)
Yes
Z-Wave S800
®
908.4 MHz
94 x 19 x 69 ±0.5 mm / 3.7
x 0.75 x 2.71 ±0.02 in
75 g / 2.65 oz.
DIN rail
0.4 Nm / 3.54 lbin
0.5 to 2.5 mm² / 20 to 14
AWG (green connector)
0.5 to 1.5 mm² / 20 to 16
AWG (white connectors)
6 to 7 mm / 0.24 to 0.28 in
(green connector)
5 to 6 mm / 0.20 to 0.24 in
(white connectors)
(solid, stranded, and boot-
lace ferrules)
Plastic
Lime
-20°C to 40°C / -5°F to
105°F
30% to 70% RH
2000 m / 6562 ft.
multi-channel
®
FCC ID: 2BDC6-WAVEPRODIMMER
LEDi
1/2
