Summary of Contents for Milesight TS201
- Page 1 Temperature Sensor Featuring LoRaWAN ® TS201 User Guide...
- Page 2 To ensure the security of your device, please change the device password during the initial configuration. The default password is 123456. The device is not intended to be used as a reference sensor, and Milesight will not should responsibility for any damage which may result from inaccurate readings.
- Page 3 Revision History Date Doc Version Description May 30, 2024 V1.0 Initial version...
-
Page 4: Table Of Contents
Contents 1. Product Introduction ......................... 5 1.1 Overview ...........................5 1.2 Features ........................... 5 2. Hardware Introduction ........................5 2.1 Packing List ..........................5 2.2 Hardware Overview ......................... 6 2.3 Dimensions (mm) ........................6 3. Battery Installation ..........................6 4. Operation Guide ..........................7 4.1 NFC Configuration ........................ -
Page 5: Product Introduction

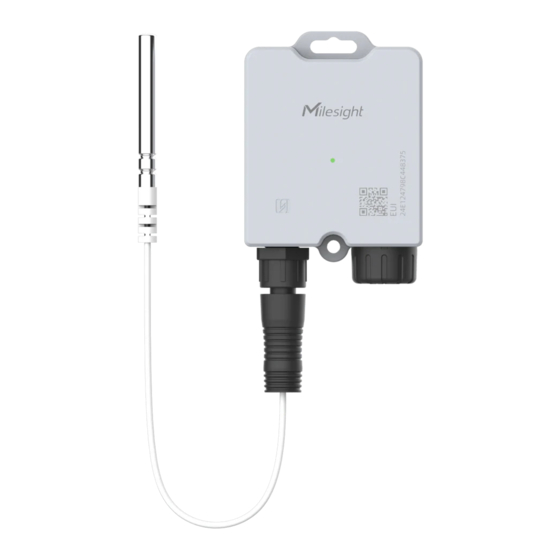

1. Product Introduction 1.1 Overview Milesight TS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology, TS201 can maintain a long operational life with its internal battery. -
Page 6: Hardware Overview
If any of the above items is missing or damaged, please contact your sales representative. 2.2 Hardware Overview 2.3 Dimensions (mm) 3. Battery Installation Note: The temperature probe should be installed before the battery is inserted. Insert the battery and tighten the battery compartment cover. The device will turn on automatically and the LED indicator will turn on for 3s. -
Page 7: Operation Guide
1. Download and install “Milesight ToolBox” App on an NFC-supported smart phone. 2. Open “Milesight ToolBox” App and attach the NFC area of the smart phone to the device. Click “NFC Read” to read the device and click “Write” to configure the device settings. It’s suggested to change the default password for security reasons. - Page 8 Parameters Description Device EUI The device's unique ID that can be found on the label. App EUI The default App EUI is 24E124C0002A0001. Application Port The port used for sending and receiving data, the default port is 85. LoRaWAN V1.0.2 and V1.0.3 are available. Version Work Mode It is fixed as Class A.
- Page 9 Join Type OTAA and ABP modes are available. Appkey for OTAA mode, the default is: Application Key 5572404C696E6B4C6F52613230313823. Reporting interval ≤ 35 mins: the device will send a specific number of LinkCheckReq MAC packets to the network server every reporting interval or every double reporting interval to validate connectivity;...
-
Page 10: Basic Settings
Note: Please contact sales for the device EUI list if there are many units. Please contact sales if you need random App keys before purchase. Select OTAA mode if you use Milesight IoT Cloud to manage devices. 4.3 Basic Settings... -
Page 11: Advanced Settings
Parameters Description Reporting interval of transmitting data to the network server. Range: Reporting Interval 1~1440min; Default: 10min Change the temperature unit displayed on the ToolBox. Note: Temperature Unit 1) The temperature reported by the device is mainly the value of °C. 2) After changing the temperature unit, it is necessary to modify the value of relevant threshold settings. -
Page 12: Threshold Settings
4.4.2 Threshold Settings TS201 can set temperature threshold alarms, temperature change alarms and so on. Enable the threshold settings and enter the threshold. TS201 sensor will upload the current data instantly when the alarm is triggered. Note that when you change the temperature unit, please re-configure the threshold. -
Page 13: Data Storage
4.4.3 Data Storage TS201 sensor supports storing more than 2800 data records locally and exporting data via ToolBox App. The device will record the data according to the reporting interval even not joining to network. Here are the steps for storage: 1. -
Page 14: Data Retransmission
4.4.4 Data Retransmission TS201 sensor supports data retransmission to ensure the network server can get all data even if the network is down for some time. There are two ways to get the lost data: Network server sends downlink commands to enquire the historical data for specifying time ... -
Page 15: Maintenance
3) The retransmission data format is started with “20ce”, please refer to section Historical Data Enquiry. 4) Data retransmission will increase the uplinks and shorten the battery life. 4.5 Maintenance 4.5.1 Upgrade 1. Download firmware from Milesight website to your smartphone or computer. -
Page 16: Backup
2) Only the Android version of ToolBox App supports the upgrade feature. 4.5.2 Backup TS201 supports configuring backup setting for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ®... -
Page 17: Reset To Factory Default
4.5.3 Reset to Factory Default Go to Device > Maintenance to click Restore Factory Settings button, then attach the smartphone with NFC area to the device to complete the reset. Note: Reset operation will not clean the stored data, please click Data Cleaning or Clear button to clear data if necessary. -
Page 18: Installation
5. Installation 5.1 Device Installation Wall Screw Mounting: 1. Fix the wall plugs to a flat surface according to the device mounting holes, then secure the device to the wall plugs using screws. 2. Cover the screws with cover caps. Cable-tie Mounting: ... -
Page 19: Communication Protocol
Channel 3 1 Byte 1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 6.1 Basic Information Channel Type Byte Value 0b (Power On) 01 (Protocol Version) 11 => V1.1 ff (TSL Version) 0101 =>... -
Page 20: Sensor Data
Channel Type Value Channel Type Value 6809e08056200 0100 (V1.0) (TSL Version) (Device SN) Channel Type Value Channel Type Value 0101 (Hardware 0100 (V1.0) (Firmware Version) (V1.1) Version) Channel Type Value (Device Type) (Class A) 6.2 Sensor Data Description Channel Type Byte 75(Battery Level) UINT8, Unit: %, [1-100]... -
Page 21: Downlink Commands
Temperature: fa 00 => 00 fa => 250*0.1= 25°C Temperature_change: 07 00 => 00 07 => 7*0.1=0.7°C 02 => Temperature_change Alarm 6.3 Downlink Commands TS201 supports downlink commands to configure the device. The application port is 85 by default. Channel Type... - Page 22 INT16*0.1, Unit: °C Byte 5-6: Min. Temperature, INT16*0.1, Unit: °C Byte 7: 01-enable; 00-disable Byte 1: 02 Byte 2-3: INT16*0.1, Unit: °C, 0c(Temperature_change Alarm) range: 0.1~100°C Byte 4: 01-enable; 00-disable Byte 1: 01-enable; 00-disable 0d (Data Retransmission) Byte 2-3: interval time, Unit:s, ...
-
Page 23: Historical Data Enquiry
6.4 Historical Data Enquiry TS201 supports sending downlink commands to enquire historical data for specified time point or within a certain time range. Before utilizing this feature, it is import to make sure the device time is correct and data storage feature was enable to store the data. - Page 24 Note: 1. The device only uploads no more than 300 data records per range jnquiry. 2. When enquiring about the data in time point, it will upload the data that is the closest to the search point within the reporting interval range. For example, if the device’s reporting interval is 10 minutes and users send a command to search for 17:00’s data, if the device finds there is data stored in 17:00, it will upload these data.
