Summary of Contents for InWin D5

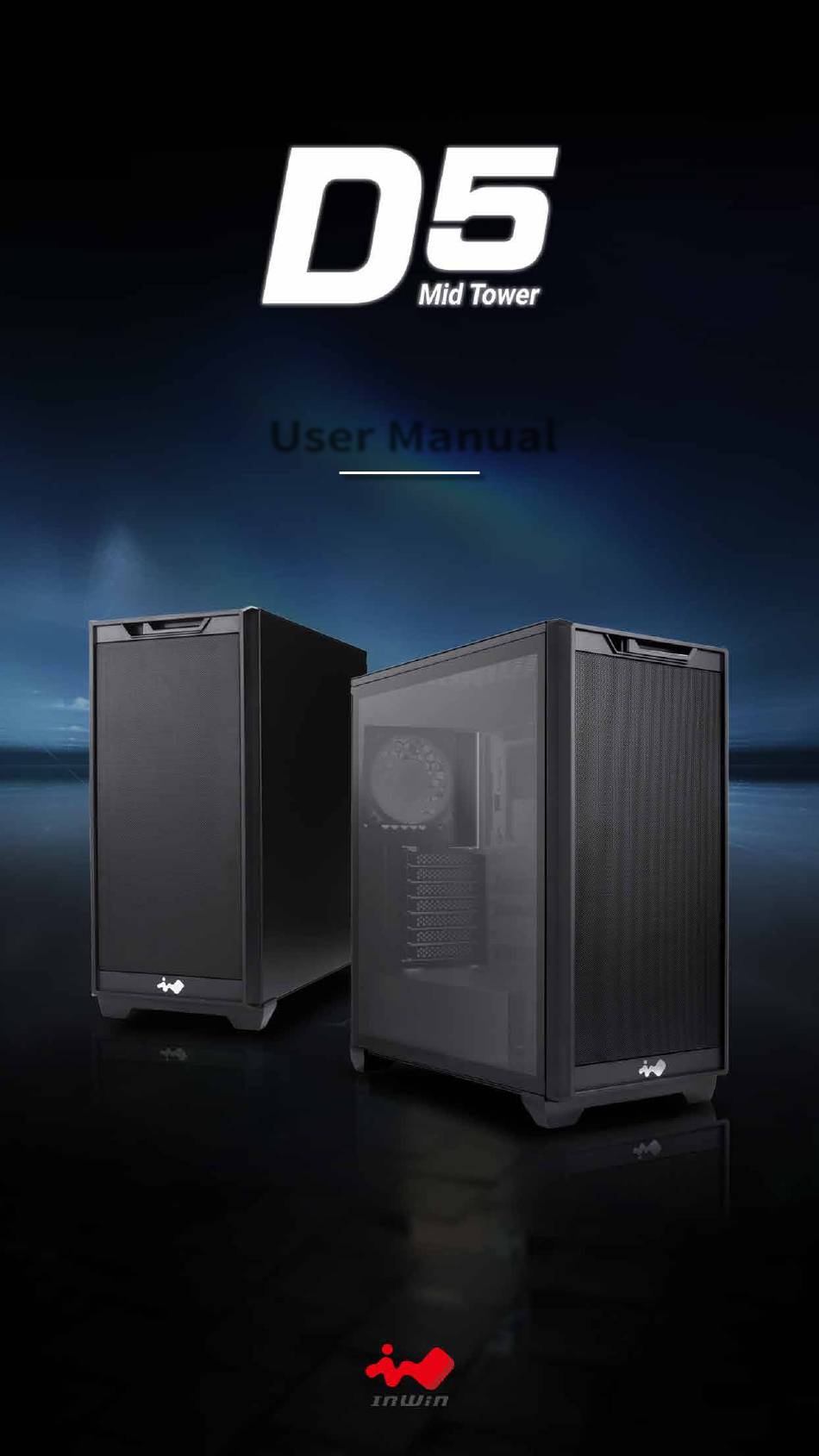

- Page 1 User Manual...
- Page 2 Product Video Information Product Video Information D5 Product Video D5 Installation Guide Video...
- Page 3 Product Story Product Story The Frontier Warrior The D5 is a mid-tower designed to accommodate E-ATX motherboards up to 12" x 10"and the latest back-connector motherboards. The D5’s widely perforated front panel is engineered to maximize airflow. The built-in headphone hanger...
- Page 4 544 x 282 x 545 mm (L x W x H) 21.4 x 11.1 x 21.5" Net Weight 8.3 kg / 18.3 lbs Gross Weight 9.7 kg / 21.38 lbs * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions.
-
Page 5: Specifications
Bearing Type Long Lifespan Sleeve Bearing MTBF >36,000 hrs Net Weight 541 g / 1.19 lbs Gross Weight 803 g / 1.77 lbs Warranty 3 Years * InWin's products comply with RoHS regulations. * Specifications may vary based on different regions. -
Page 6: Package Contents
Package Contents Package Contents Accessories Bag Hexagon Head Screws x 12 2.5" SSD Screws x 16 3.5" HDD Screws x 8 Motherboard Stand-offs x 12 Motherboard Stand-off Socket x 1 Cable Ties x 5 Velcro Strips x 3 Magnetic GPU Holder x 1 ARGB Extension Cables 500 mm x 1 PWM Fan Extension Cables 500 mm x 1 QR Code Card x 1... - Page 7 Case Structure Case Structure Tempered Glass Side Panels Headphone Hanger Power Button USB 3.2 Gen 1 HD Audio Combo (CTIA – SPK/Mic) USB 3.2 Gen 2x2 Type-C Anti-Dust Filters...
- Page 8 Front Fans / Radiator Mounting Area Cable Shield Cover Top Fans / Radiator Mounting Area Rear Fan Mounting Area (1 InWin Neptune AN120 Fan Pre-Installed) Motherboard Mounting Area CPU Cooler Installation Cut-Out Hole Magnetic GPU Holder Placement Area Shock-Proof Stands...
-
Page 9: Cable Connection
Cable Connection Cable Connection I/O Wire Black(P LED +) 1 2 Black (HDD LED +) Black(P LED -) 3 4 Black (HDD LED -) Black(P SW +) 5 6 NC Black(P SW -) 7 8 NC 10 NC HD Audio Header PORT2_L BLUE PURPLE... - Page 10 7. For more technical support, please visit the InWin Forum https://forum.in-win.com/ ■ Warranty 1. For more detailed warranty information, please visit the InWin retail website www.in-win.com 2. The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
- Page 11 Copyright © 2024 In Win Development Inc. All Rights Reserved.
