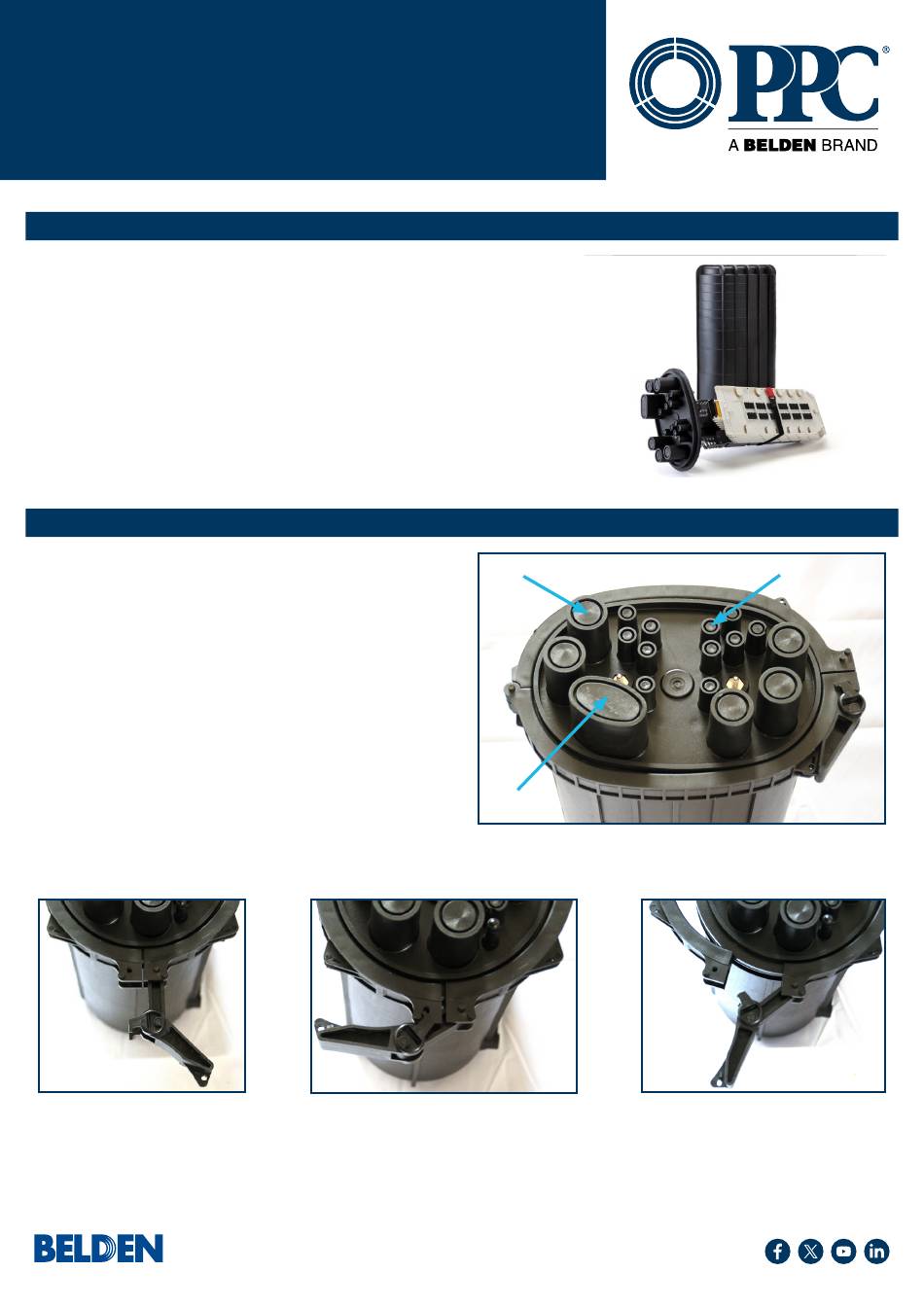

Sapphire™ Dome Splice Closures
Cold Seal Installation Instruction
Overview
PPC's Sapphire™ Dome Splice Closure is designed to splice up to a maximum of
144 optical fiber cores. It consists of two main parts: the end plate where the fiber
optic cables enter and exit for splicing, and the cover, which provides waterproof
protection for the internal components of the splice closure.
Dome Splice Closure End Plate
The end plate contains several input and output ports for
routing cables.
1 - Express ports for the main fiber optic cable input
2 - Feeder port for routing fiber optic output cables of various
diameters
3 - Drop ports for routing smaller fiber optic output cables
All grommets are made of silicone and are used to seal the input
and output holes. The silicone provides long-lasting flexibility around
the sealed cables and prevents moisture from entering the closure.
Opening the Dome
Unhinge the latch on the circut cap to open the dome closure. Remove the end plate from the lid.
These products may be protected by one or
more patents. For further information, please
www.belden.com
visit: www.ppc-online.com/patents
2
1
6176 E. Molloy Rd. East Syracuse, NY 13057
bbs.cs@belden.com
1-800-800-6652 • +1 315-431-7200
1
3
www.ppc-online.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PPC Sapphire DSCG-M00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Belden PPC Sapphire DSCG-M00

  • Page 1 Unhinge the latch on the circut cap to open the dome closure. Remove the end plate from the lid. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents...
  • Page 2 First, pull the cable through the lid, adjust it in position, then install the silicone grommets. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 •...
  • Page 3 Thread on the supplied screw to the upper cap and tighten lightly by hand to prevent deformation of the silicone seal. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents...
  • Page 4 These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 •...
  • Page 5 Fully tighten the nut plastic plug. when bracket is in position. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 • +1 315-431-7200...
  • Page 6 Secure the transportation tubes to the tray with tie wraps. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 • +1 315-431-7200...
  • Page 7 Align the transportation tubes along the outer sides of the tray. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 • +1 315-431-7200...
  • Page 8 Place the end plate onto the closure lid. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 • +1 315-431-7200...
  • Page 9 Spray soapy water around the sealed areas, including the grommet-filled ports and the circuit cap. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 •...
  • Page 10 Depressurize the dome. The Dome Splice Closure is now ready for use. These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 • +1 315-431-7200...
  • Page 11 DSC Pole mount brack. - M/L Pole mount bracket for Medium / Large dome closure These products may be protected by one or 6176 E. Molloy Rd. East Syracuse, NY 13057 bbs.cs@belden.com more patents. For further information, please www.belden.com visit: www.ppc-online.com/patents 1-800-800-6652 •...
