FX FUSION LC CONNECTOR
900µm TIGHT BUFFER/250µm
INSTALLATION GUIDE
ES: Visite nuestra pagina web www.belden.com/splice-on para obtener el guía de instalación en español.
FR: Veuillez visiter notre site web au www.belden.com/splice-on pour obtenir le guide d'installation
en français.
• Fusion Splicer and Cleaver
• FX Fusion Splice-On Installation
Tool Kit

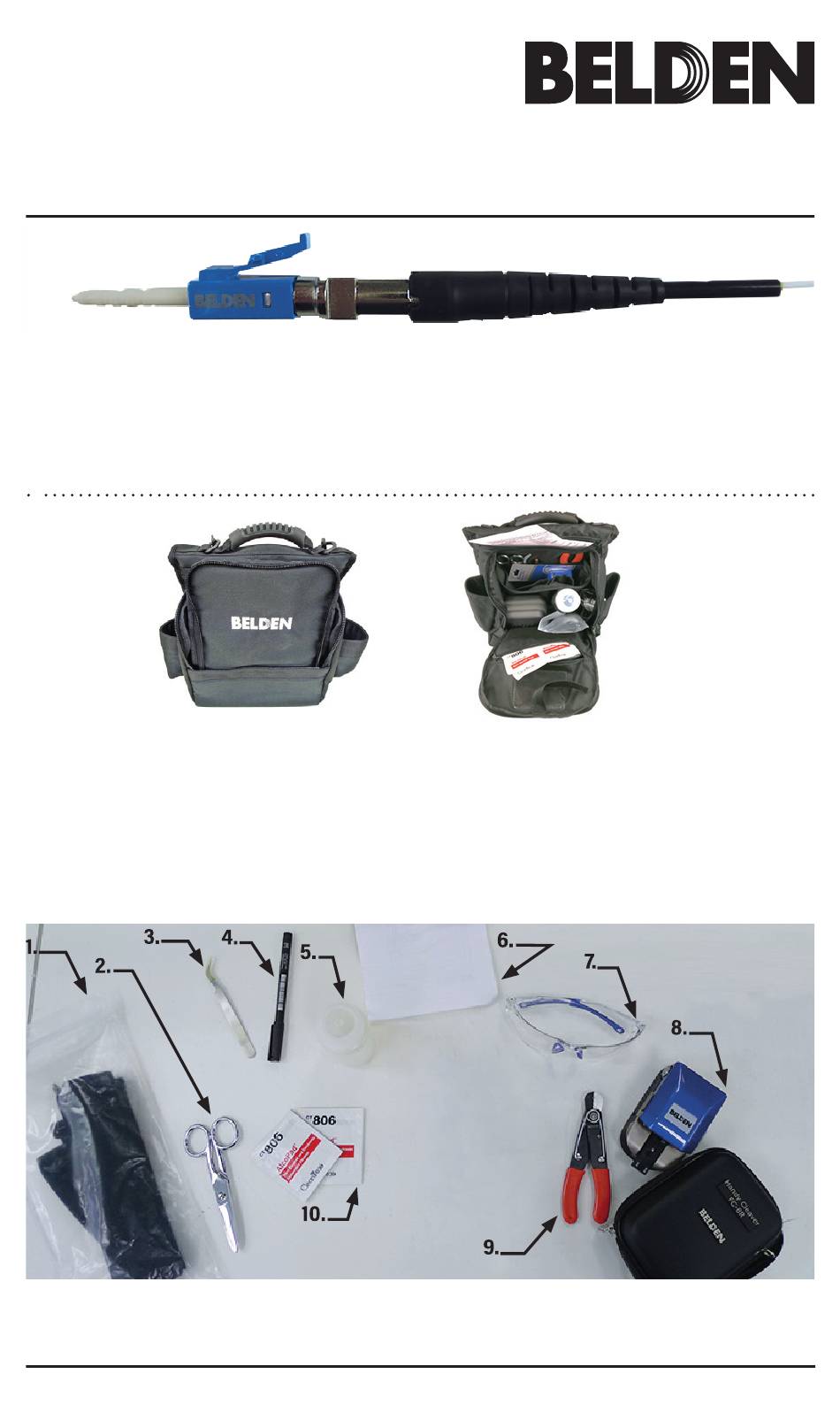

FX Fusion Splice-On Installation Tool Kit contents
1. Shoulder staps
2. Scissors
3. Tweezers
4. Pen marker
NOTE :
After use, the components should be replaced in their respective locations as shown in the picture of the
open kit.
FX FUSION LC CONNECTOR
900µm TIGHT BUFFER/250µm - INSTALLATION GUIDE
Materials
• FX Fusion Splice-On LC Connector
Kit
• FX Fusion Splice Holder
5. Waste Bottle
6. Component checklist
7. Safety Glasses
8. Cleaver
PX106498-EN REV C
9. Fiber/cable stripper
10. Alcohol Wipes
11. Installation card
(not shown).
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Belden FX FUSION LC CONNECTOR
Summary of Contents for Belden FX FUSION LC CONNECTOR
- Page 1 FX FUSION LC CONNECTOR 900µm TIGHT BUFFER/250µm INSTALLATION GUIDE ES: Visite nuestra pagina web www.belden.com/splice-on para obtener el guía de instalación en español. FR: Veuillez visiter notre site web au www.belden.com/splice-on pour obtenir le guide d’installation en français. Materials • Fusion Splicer and Cleaver •...
- Page 2 = This symbol indicates risks and hazards that may cause eye injuries. = This symbol indicates the presence of a risk that can cause personal injuries, property or components damages. FX FUSION LC CONNECTOR PX106498-EN REV C Page 2 of 8...
- Page 3 Just before use, open the sealed bag of the FX Fusion Splice-On SC Connector Kit. Rear housing with boot Splice protection sleeve with spring FX FUSION LC CONNECTOR PX106498-EN REV C Page 3 of 8 900µm TIGHT BUFFER/250µm - INSTALLATION GUIDE...
- Page 4 It is recommended to remove the NOTE: Use the guide on the clamshell and mark the cable at 25 mm. holder from the splicer. FX FUSION LC CONNECTOR PX106498-EN REV C Page 4 of 8 900µm TIGHT BUFFER/250µm - INSTALLATION GUIDE...
- Page 5 Cleave the fiber at 10 mm. Strip the cable from that mark. To avoid breaking the fiber the For both Belden, cleaver’s the cable should be stripped about 10 mm mark is where the fiber 5 mm at a time.
- Page 6 The placement of the end face is NOTE: important. Fibers end face should be located in between the V-groove and electrodes as shown. Perform the fusion. FX FUSION LC CONNECTOR PX106498-EN REV C Page 6 of 8 900µm TIGHT BUFFER/250µm - INSTALLATION GUIDE...
- Page 7 Belden’s heat settings. Heat the splice protection sleeve. Remove the cable assembly from the heater. Spring will be hot once removed from the heater. FX FUSION LC CONNECTOR PX106498-EN REV C Page 7 of 8 900µm TIGHT BUFFER/250µm - INSTALLATION GUIDE...
- Page 8 Align the rear housing tabs with the front housing cutouts and assemble the parts together. Cut the excess of the dust cap rod. FX FUSION LC CONNECTOR PX106498-EN REV C Page 8 of 8 900µm TIGHT BUFFER/250µm - INSTALLATION GUIDE...
