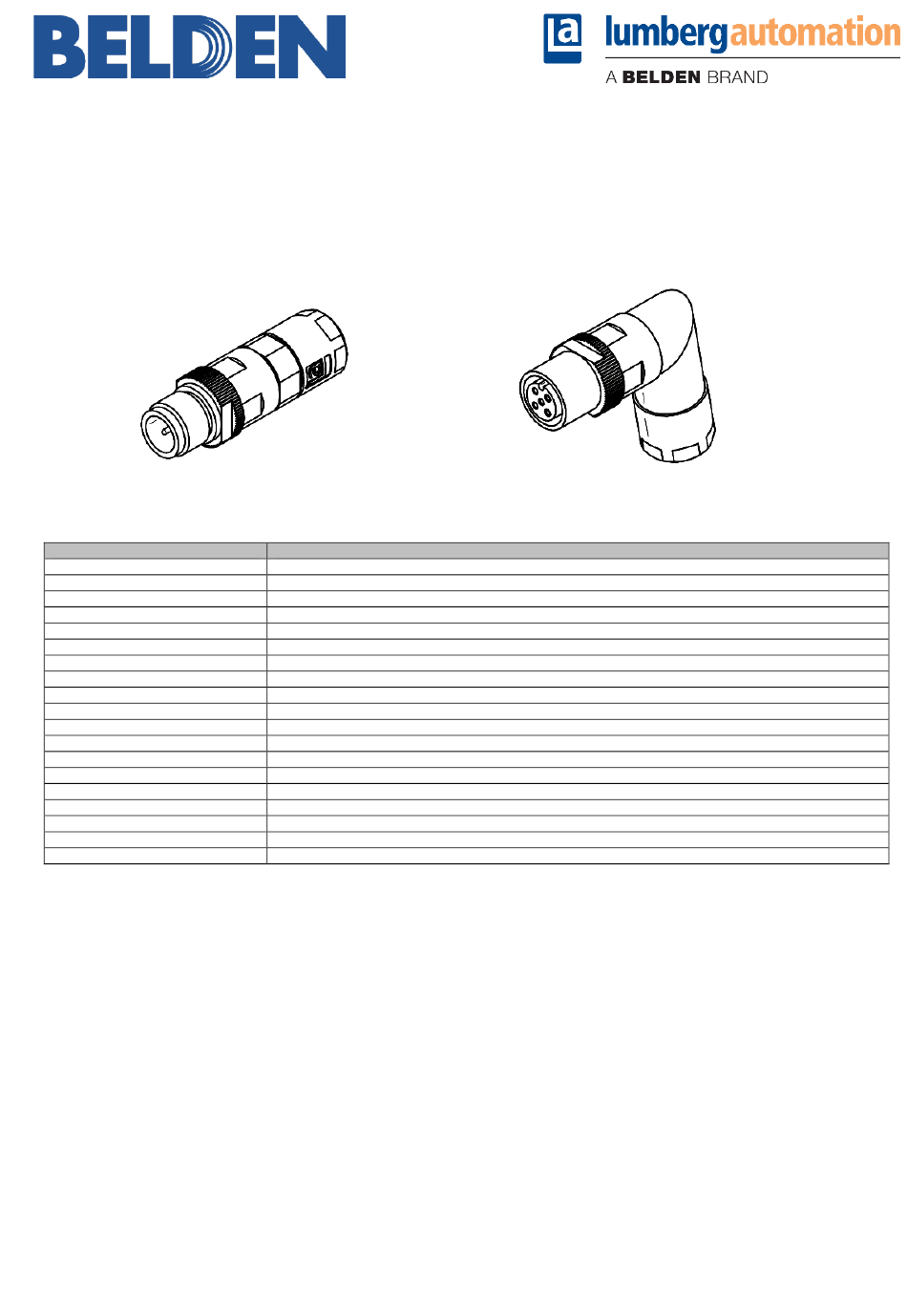

Assembly Instructions
RM12C Series
Listed products:
Product no.
935092001
935092002
935092003
935092004
935093001
935093002
935093003
935093004
935092006
935092007
935092009
935092005
935092008
935093006
935093007
935093005
932507008
932507009
934959001
We have checked that the contents of the technical publication agree with the hardware and software described. However, it is not possible to
rule out deviations completely, so we are unable to guarantee complete agreement. However, the details in the technical publication are
checked regularly. Any corrections which prove necessary are contained in subsequent editions. We are grateful for suggestions for
improvement. We reserve the right to make technical modifications. Permission is not given for the circulation or reproduction of this
document, its use or the passing on of its contents unless granted expressly. Contravention renders the perpetrator liable for compensation for
damages. All rights reserved, in particular in the case of patent grant or registration of a utility or design.
© 2024 Belden Inc.
Manuals are protected by copyright. All rights reserved.
Belden reserves the right to change the contents of this document without prior notice. Belden can give no guarantee in respect of the
correctness or accuracy of the information in this document
Note
We would point out that the content of these operating instructions is not part of, nor is it intended to amend an earlier or existing agreement,
permit or legal relationship. All obligations on Belden arise from the respective purchasing agreement which also contains the full warranty
conditions which have sole applicability. These contractual warranty conditions are neither extended nor restricted by comments in these
operating instructions.
Description
RM12C-MSSV4A
RM12C-FSSV4A
RM12C-MSSV5A
RM12C-FSSV5A
RM12C-MASV4A
RM12C-FASV4A
RM12C-MASV5A
RM12C-FASV5A
RM12C-MSSV4AD-CAT5
RM12C-FSSV4AD-CAT5
RM12C-FSSR4D-CAT5
RM12C-MSSV8A
RM12C-MSSV8X-CAT6a
RM12C-MASV4AD-CAT5
RM12C-FASV4AD-CAT5
RM12C-MASV8A
Crimping tool XZC 0708 RM12
XZC 0708 RM12 Locator
DMEWKZ P12-16
