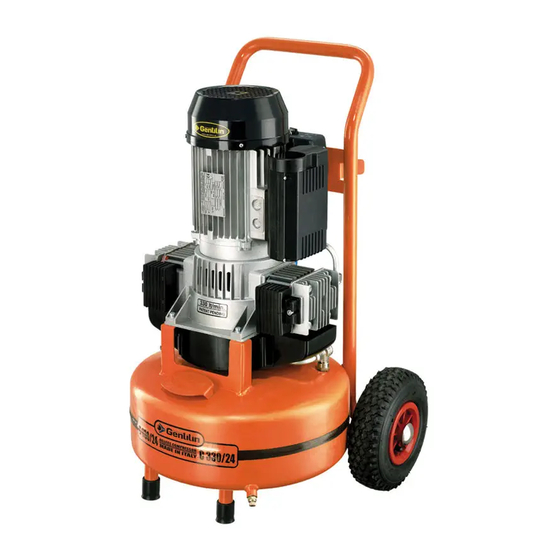

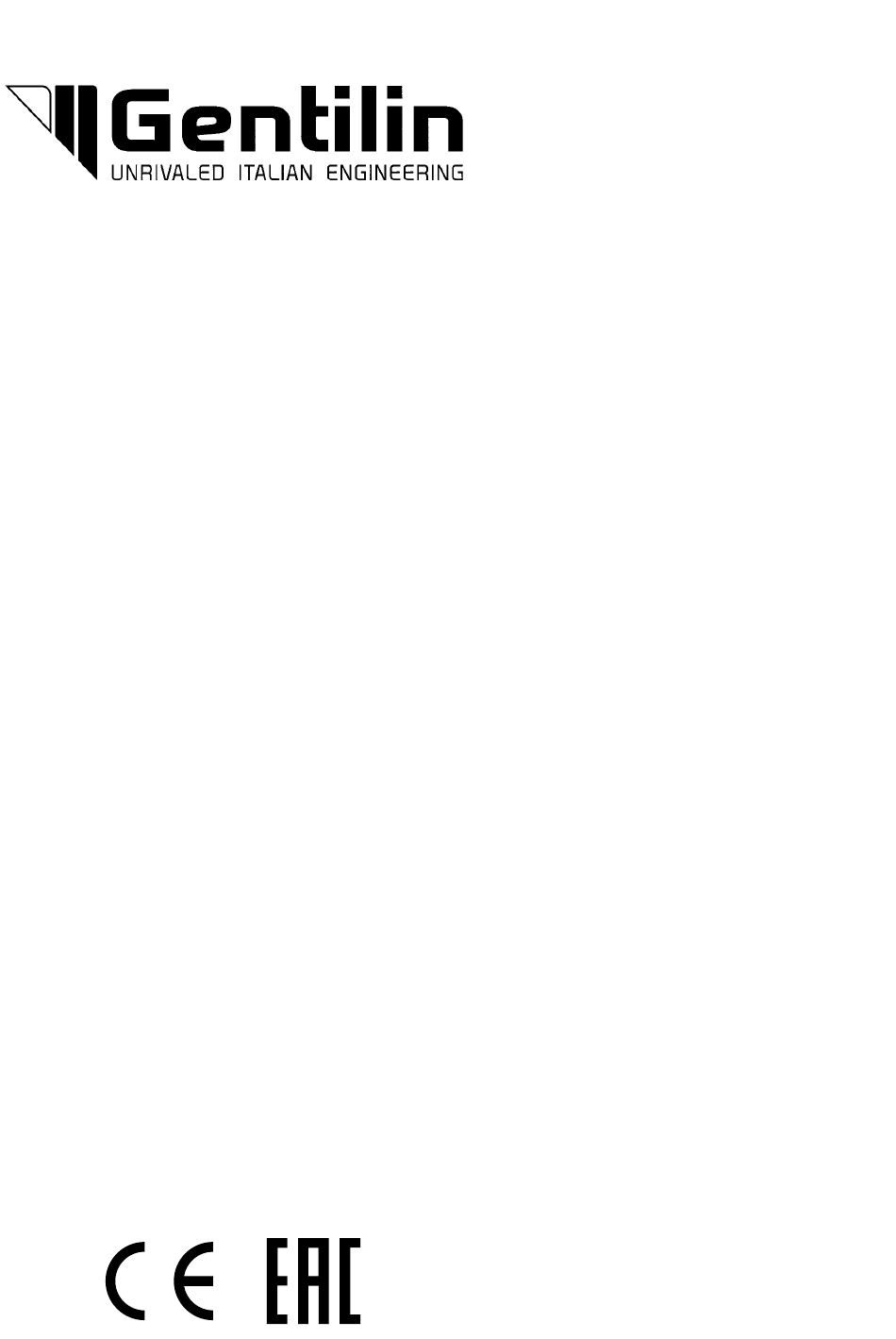

- Page 1 Instruction Manual Compressors CSK 330/03 CSK 330/24 CSK 330/50 CSK 330/100...
- Page 3 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 INDEX PARTS LIST ........................... 4 TECHNICAL SPECIFICATIONS ......................6 CE DECLARATION OF CONFORMITY ....................7 CE LABEL ............................7 IMPORTANCE OF THE MANUAL ......................7 RECIPIENTS ...........................
-
Page 4: Parts List
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 PARTS LIST Non-return valve ON (I) – OFF (O) switch Outlet pressure regulator Tank pressure gauge Air outlet spigot Tank outlet gauge Wheels Plug with cable for power supply... - Page 5 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 MOD. CSK 330/24 - CSK 330/50 MOD. CSK 330/100 www.gentilinair.com 41074102 - 05/2022...
-
Page 6: Technical Specifications
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 TECHNICAL SPECIFICATIONS MODEL CSK 330/03 CSK 330/24-50 CSK 330/100 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz Supply voltage/Frequency 110 V... -
Page 7: Ce Declaration Of Conformity
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 CE DECLARATION OF CONFORMITY Gentilin S.r.l. - Via delle Tezze, 20/22 36070 Trissino (VI) - Italy - VAT N.: 01262520248 Declares that the following machine:... -
Page 8: Importance Of The Manual
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 IMPORTANCE OF THE MANUAL BEFORE USING THE APPLIANCE IN QUESTION, AUTHORISED USERS MUST READ AND UNDERSTAND THE PRESENT INSTRUCTION MANUAL IN ITS ENTIRETY. • The “Instruction Manual” was compiled according to the instructions as specified in Machinery Directive 2006/42/CE, in order to guarantee easy and correct understanding of subjects relevant to operators authorised to use and oversee main- tenance of the appliance in question. Should operators find errors, please do not send incorrect personal interpretations/... - Page 9 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 COMPANY SAFETY MANAGER: A qualified technician nominated by the employer (where the appliance is used in a business context), who possesses the required professional, technical skills as specified by the legislations currently in force on health and safety of workers at the work place. MANUFACTURER’S TECHNICIAN: A qualified technician offered by the Manufacturer and/or Supplier authorised to provide required technical assistance, standard and extraordinary maintenance interventions and/ or operations which are not presently included which necessitate specialist knowledge of the appliance, whilst using the dedicated personal safety device items.
-
Page 10: Warranty
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 WARRANTY 1) GUARANTEE DECLARATION: the Manufacturer gives an undertaking to the End-User to replace, repair or otherwise intervene in the machine, if it has conformity defects that compromise its correct use and operation, but only if such defects are attributable to the actual liability of the Manufacturer. -
Page 11: Incorrect Use
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 PLACE OF OPERATION Interior locations with sufficient lighting, ventilation, with temperature and air humidity values as per details provided in Pa- ragraph “TECHNICAL SPECIFICATIONS”, in compliance with legislation governing health and safety in the work place in force in the country of usage. The appliance must rest on a surface that ensures the appliance is stable with respect to its weight and overall dimensions (see Paragraph “TECHNICAL SPECIFICATIONS”). - Page 12 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 TRANSPORTATION AND MOVEMENT OF THE APPLIANCE The appliance may be manually transported by two qualified operators, gripping it by the foot (A) and the handle (B) or manually moved by a qualified operator using the handles (C) and the wheels (D) which feature as part of the appliance.
-
Page 13: Electrical Connection
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 STORAGE • In the instance where the appliance is not to be used for an extended period of time, it must be stored in a safe place, with suitable temperature and air humidity values, where it is protected from dust. - Page 14 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 SAFETY DEVICES ADOPTED • SAFETY VALVE (15): a certified safety valve (set to 10.5 bar), installed to the pneumatic system, under the pressure switch. It tackles over-pressure in the instance where, owing to anomalies, the pressure switch does not function.
-
Page 15: Safety Signs
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 SAFETY SIGNS Safety signs used take the formof a sticky label, applied to the appliance exterior. Sign definitions: Warning – electrical power. Warning – automatic start-up. -
Page 16: Residual Risks
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 RESIDUAL RISKS Although the Manufacturer has adopted all technical construction solutions in order to make the appliance as safe as pos- sible, authorised operators please be aware that residual risks remain. -
Page 17: Pre-Start-Up Checks
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 COMMAND DEVICES The command devices are: Air outlet spigot Outlet pressure regulator “ON-OFF” switch Pressure switch Electrical supply cable Tank outlet gauge Tank pressure gauge... - Page 18 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 APPLIANCE ACTIVATION DANGER OF BURNS UPON ACCIDENTAL CONTACT WITH THE TWIN CYLINDER PUMP SYSTEM AND ELECTRIC MOTOR. WARNING – RESIDUAL RISK (SEE PARAGRAPH “RESIDUAL RISKS”).
- Page 19 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 APPLIANCE DEACTIVATION At the end of operations, switch off the appliance as follows: 1) Switch off the appliance using the “ON-OFF” switch (3) ensuring it is set to “OFF (0)”.
-
Page 20: Emergency Stop
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 RESET INTERVENTION – THERMAL RESTORE In the instance where current overload and/or a short circuit of the appliance electrical system is noted, the thermal restore intervenes, disabling the electric motor. -
Page 21: Once A Day
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 STANDARD MAINTENANCE TABLE FREQUENCY INTERVENTION AREA INTERVENTION TYPE ONCE A DAY Safety devices. Ensure they are intact, correctly installed and functioning. Electrical cable and plug. -
Page 22: Extraordinary Maintenance
Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 EXTRAORDINARY MAINTENANCE All activities carried out to ensure use and operation of the appliance, via various intervention types (regulation, valve checks, cleaning of air filters, etc.) executed by the Manufacturer’s technicians according to preestablished time intervals and in the instance of faults or wear and tear. - Page 23 Instruction Manual - Compressors CSK 330/03 - CSK 330/24 - CSK 330/50 - CSK 330/100 ABNORMALITIES CAUSE SOLUTION The appliance restarts nu- Leakages from the air pipe, • Check that the pneumatic system is not damaged. merous times even without utensil or pneumatic system.
