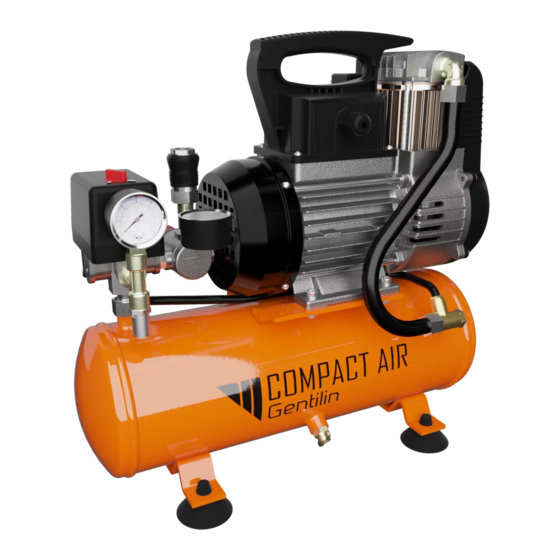

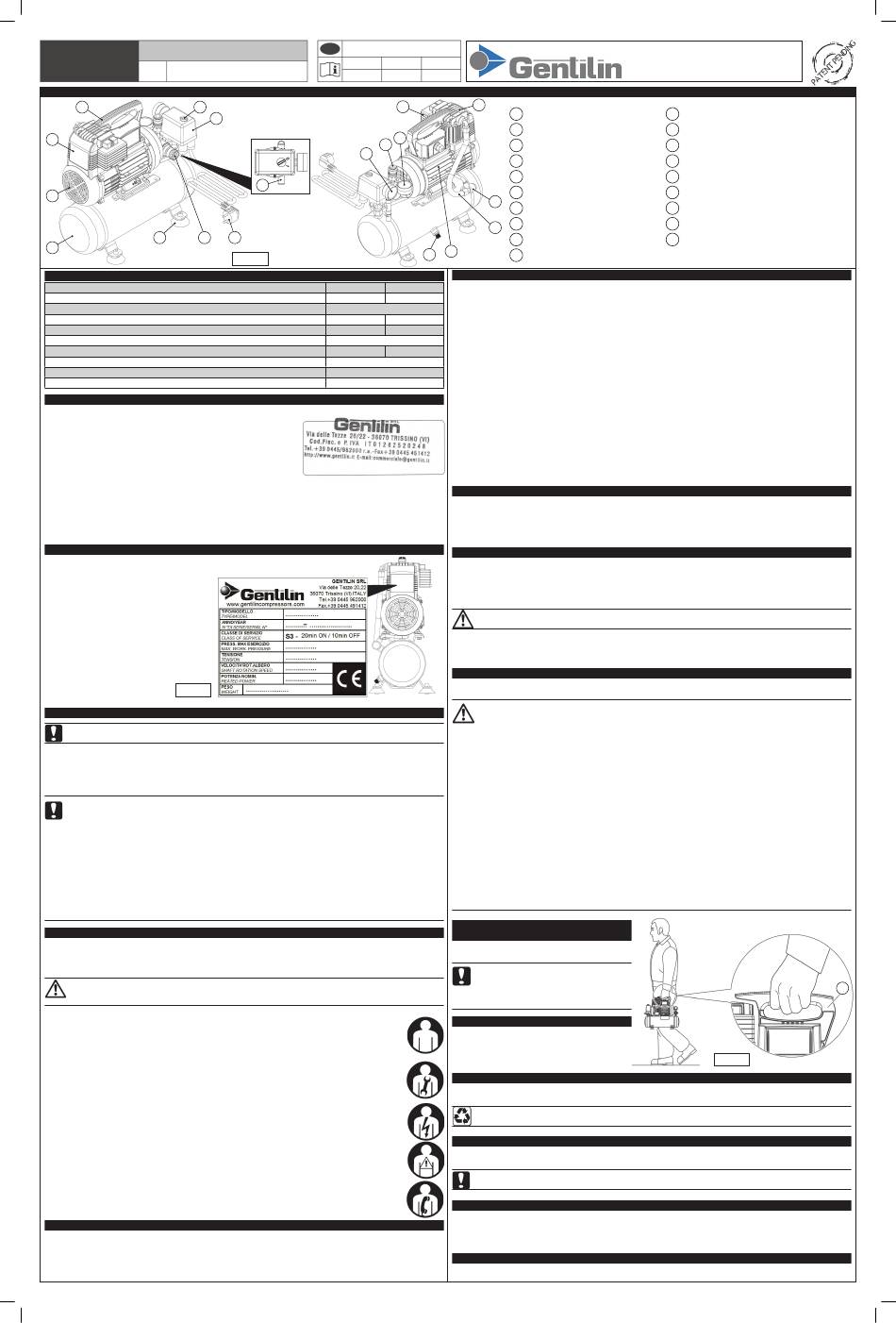

GENTILIN B110 Instruction Manual

COMPRESSOR B110
INSTRUCTION
MANUAL
MOD. B110/05 - PICK UP - PICO
1 3
2
18
8 9
6
RH side view

2. TECHNICAL SPECIFICATIONS

Supply voltage/Frequency
Nominal power
Max. operating pressure
Level of output noise levels A at the work stations (Leg. 2006/42/cE)
Driveshaft rotation speed
Tank volume
Performance (aspirations/yield)
Temperature/air humidity
Total weight
Dimensions (lxwxh)

3. CE DECLARATION OF CONFORMITY

Gentilin S.r.l. - Via delle Tezze, 20/22 36070 Trissino (VI) - Italia - VAT N.: 01262520248
Declares that the following machine: COMPRESSOR B110/05 - PICK-UP - PICO
MAcHINE: Air volumetric compressor
SERIAL NUMBER: ________________________________
complies with the following directives:
• 2006/42/EC Directive of the European Parliament and the council of 17 May 2006
on machinery and amending Directive 95/16/Ec (recast)
• 2014/30/UE Directive of the European Parliament and of the council of 26 February 2014, replacing 2004/108/Ec Directive of the
European Parliament and of the council of 15 December 2004, on the approximation of the laws of the Member States relating to
electromagnetic compatibility and repealing Directive 89/336/EEc
• 2014/35/UE Directive of the European Parliament and of the council of 26 February 2014, replacing Directive 2006/95/Ec of the
European Parlament and council, of December 12, 2006
Person authorized to prepare the Technical Dossier: Gentilin Giuseppe, in quality of Technical Manager.
Place: Via delle Tezze, 20/22 - 36070 Trissino (VI) ITALY
The cE marking certifies the compliance of the machine
with the essential health and safety requirements esta-
blished by the product Directives applied.
It takes the formof a polyester sticker, with a black
thermal transfermould, which are applied on themotor
frame (Fig. 2).
Fig. 2
5. IMPORTANCE OF THE MANUAL
BEFORE USING THE APPLIANCE IN QUESTION, AUTHORISED USERS MUST READ AND UNDERSTAND THE PRESENT
INSTRUCTION MANUAL IN ITS ENTIRETY.
• The "Instruction Manual" was compiled according to the instructions as specified in Machinery Directive 2006/42/CE, in order
to guarantee easy and correct understanding of subjects relevant to operators authorised to use and oversee maintenance of
the appliance in question. Should operators find errors, please do not send incorrect personal interpretations/amendments that
may threaten safety, rather, we advise you immediately request the Manufacturer send the correct explanations or further details.
• The "Instruction Manual" must be accessible by authorised operators at all times and must be always be kept in a safe place within
close proximity of the appliance.
THE PRESENT INSTRUCTION MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE AND MUST BE KEPT FOR FUTU-
RE REFERENCE AND UP UNTIL THE END OF APPLIANCE LIFE. IT MUST ALWAYS BE ACCESSIBLE TO AUTHORISED OPE-
RATORS AND IT MUST BE SAFELY STORED AND KEPT WITHIN CLOSE PROXIMITY OF THE APPLIANCE ITSELF.
THE MANUFACTURER DECLINES ANY RESPONSIBILITY FOR DAMAGE TO PERSONS, ANIMALS AND OBJECTS CAUSED BY
INOBSERVATION OF REGULATIONS ANDWARNINGS DESCRIBED IN THE PRESENT INSTRUCTION MANUAL.
IN THE INSTANCE WHERE THE INSTRUCTION MANUAL IS LOST OR DAMAGED, RERQUEST A COPY FROM THE MANUFACTU-
RER OR THE AUTHORISED SUPPLIER, SPECIFYING THE APPLIANCE MODEL AND THE EDITION NUMBER PROVIDED WITHIN
THE TITLE.
THE PRESENT INSTRUCTION MANUAL COMPLIES WITH TECHNICAL PROVISIONS AT THE TIME OF PURCHASE OF THE AP-
PLIANCE AND CANNOT BE CONSIDERED INCORRECT IN THE INSTANCE WHERENEWEXPERIMENTATION RESULTS IN UPDATES
OF SUCH TECHNICAL PROVISIONS.
THE PRESENT INSTRUCTION MANUAL MUST BE PASSED OVER IN THE INSTANCE WHERE THE APPLINACE IS HANDED OVER
TO ANOTHER USER.
6. RECIPIENTS
• This "Instruction Manual" is aimed exclusively at operators authorised to carry out operations according to specific technical skills
necessitated for the operation type.
• The below described symbols appear at the beginning of paragraphs in order to indicate the identity of operators affected by
the subject described.
AUTHORISED OPERATORS MUST ONLY CARRY OUT OPERATIONS FOR WHICH THEY ARE QUALIFIED.
BEFORE CARRYING OUT ANY OPERATIONS, AUTHORISED OPERATORS MUST POSSESS ADEQUATE PSHYCHO-
PHYSICAL CAPABILITES IN ORDER TO ALWAYS ENSURE SAFETY.
ASSIGNED OPERATOR:
an operator over the age of 18 (private user or employee) and, who, in compliance with
current legislation on health and safety in the work place in force within the country of usage, is capable of exclusively
activating, using and deactivating the appliance whilst completely complying with the instructions presently provided,
whilst using the dedicated personal safety device items.
MECCHANICAL/PNEUMATIC MAINTENANCE PERSON:
exclusive interventions on mechanical/pneumatic parts in order to oversee the regulation, maintenance and/or re-
pairs even with protective devices disabled in complete compliance with the instructions presently provided or with
any other specific document supplied by the Manufacturer, whilst using the dedicated personal safety device items.
ELECTRICAL MAINTENANCE:
a qualified technician, capable of carrying out exclusive interventions on electrical
devices in order to oversee the regulation, maintenance and/or repairs even where an electric supply is present and even
with protective devices disabled in complete compliance with the instructions presently provided or with any other specific
document supplied by the Manufacturer, whilst using the dedicated personal safety device items.
PERSON IN CHARGE: a person who, depending on his professional skills and within the limits of the hierarchic and
functional powers appropriate to the nature of the task he has been appointed to perform, supervises work activities
and assures the Directives he receives are implemented, checking the correct performance of the workers and exer-
cising a functional power of initiative.
MANUFACTURER'S TECHNICIAN: a qualified technician offered by the Manufacturer and/or Supplier authorised
to provide required technical assistance, standard and extraordinary maintenance interventions and/or operations
which are not presently included which necessitate specialist knowledge of the appliance, whilst using the dedicated
personal safety device items.
7. STATUS "APPLIANCE OFF"
Before carrying out any type of maintenance and/or regulation operation on the appliance, you must:
1) Shut off the power supply ensuring that the "ON (I)" switch is in the "OFF (0)" position (3 - Fig. 1).
2) Unplug the power cable (7 - Fig. 1) from the plug located near the appliance.
3) Empty the tank (14 - Fig. 1) (no pressure).
MAN_B110_A001
Translation of the
EN
Original instructions
code
MAN_B110_A001
4
11
17
5
7
LH side view
Fig. 1
110-230/50 V/Hz 110-230/60 V/Hz
0,75 kW
9 bar
72 dB
2800 rpm
5 lt
110/60 l/min
+5°c ÷ +40°c / 5% ÷ 95%
12,5 Kg
191×414×392 mm
Stamp:
Date: _________________________

4. CE LABEL

a qualified technician, capable of carrying out
Issue Revision
16.12.10 REV00_06_2016

1. PARTS LIST

19
12
1 Carrying handle
2
Air conveyor
10
3 ON (I) – OFF (O) switch
4
Pressure switch
5 Safety valve (set to 10.5 bar)
6 Air tank
16
7
Power plug and cable
8 Feet
15
9 Outlet pressure regulator
13
14 10
Tank outlet gauge
1) WARRANTY DECLARATION: the Manufacturer guarantees the Acquirer, the replacement, repair and intervention relative to
all appliances, where the aforementioned display conformity defects which comprise correct usage and operation, only where
1.1 kW
such defects are owing to the fault of the Manufacturer. The Manufacturer reserves the right to adopt the best solution in order
to restore appliance conformity within a reasonable amount of time.
73 dB
2) ACQUIRER: the Acquirer is defined as a "consumer" where the purchase was made by a physical person and where the appliance
3400 rpm
is not to be used for commercial or professional purposes. The Acquirer is defined as a "professional or company" where the
purchase was made by a professional or company who aims to use the appliance for commercial or professional purposes.
130/60 l/min 3) TERMS: the Manufacturer is responsible where the defect of conformity is discovered within the following time frame from the
purchase date:
24 months, where the purchase was made by a "consumer" as described under point 2);
12 months, where the purchase was made by a "professional or company" as described under point 2).
4) VALIDITY: the warranty is valid if the buyer notifies the manufacturer of any lack of conformity within 2 months from the date on
which the lack was detected. The above mentioned notification must necessarily be accompanied by a regular proof of purchase
(till receipt or invoice).
5) EXPIRY: the warranty expires in the instance where the Acquirer uses the appliance in an inappropriate and/or in such a way that
goes against the details in the "Instruction Manual" supplied by the Manufacturer, or in the instance where the defect is owing
to the inexperience of the Acquirer or an accident.
6) RESPONSIBILITY: the Manufacturer is exempt from all responsibility from harm caused to the Acquirer in terms of lack of or
reduced performance owing to conformity defects.
7) FEES: the fees relative to the work force and materials necessary to restore the appliance are charged to the Manufacturer. The
fees and delivery methods are to be agreed upon with the Authorised Supplier.
• Rights reserved with regards the "Instruction Manual" remain with the Manufacturer.
• No parts of the present manual, in full or in part, may be copied and/or passed on in any way, without written authorisation from
the Manufacturer.
• All the brands mentioned belong to the respective owners.
FIELD OF OPERATION:
Industrial, handicraft and civil.
PLACE OF OPERATION:
Interior locations with sufficient lighting, ventilation, with temperature and air humidity values as per
details provided in Paragraph 2, in compliance with legislation governing health and safety in the work place in force in the country
of usage. The appliance must rest on a surface that ensures the appliance is stable with respect to its weight and overall dimensions
(see Paragraph 2).
WARNING!
THE APPLIANCE MUST BE KEPT OUT OF REACH OF CHILDREN.
INTENDED USE:
compressing air (no oil) to be used with suitable pneumatic utensils according to current legislation in force
(E.g. blowing, pumping, washing, veneering and sandblasting, etc...).
OPERATORS AUTHORISED USE:
The appliance was designed and manufactured exclusively for the aim as described in Paragraph 10; in order to ensure the safety of
authorised operators and appliance efficiency at all times, any other use is completely forbidden.
Front side
IT IS COMPLETELY FORBIDDEN TO OPERATE THE APPLIANCE IN ENVIRONMENTS PRONE TO EXPLOSIONS AND/OR
WHERE COMBUSTIBLE SUBSTANCES ARE PRESENT (E.G. WOOD GRAINS, FLOUR, SUGAR AND GRANULES).
PERICOLO DI SCOTTATURE PER CONTATTO ACCIDENTALE CON GRUPPO POMPANTE BICILINDRICO E MOTORE ELET-
TRICO.ATTENZIONE ESISTE UN RISCHIO RESIDUO (see Paragraph 22).
IT IS ABSOLUTELY FORBIDDEN TO USE THE MACHINE IN AREAS CONTAINING SOLID OR ABRASIVE PARTICLES.
THE MACHINE MUST BE USED IN COMPLIANCE WITH LEGISLATION GOVERNING EMISSIONS (NOISE) IN FORCE IN THE
COUNTRY OF USE.
DURING USE, ENSURE THAT UNAUTHORISED PERSONS DO NOT COME WITHIN PROXIMITY OF THE APPLIANCE.
THE APPLIANCE MUST BE KEPT OUT OF THE REACH OF CHILDREN.
IT IS STRICTLY FORBIDDEN TO USE THE MACHINE OUTDOORS.
INCORRECT USE OF THE APPLIANCE OR USE WHICH DIFFERS FROM THAT SPECIFIED IN PARAGRAPH 10 IS FORBIDDEN.
THE USE OF UNSUITABLE AIR PIPES (EXTENSIONS), CONNECTIONS AND UTENSILS OR THOSE WHICH DO NOT CONFORM
WITH CURRENT LEGISLATION IN FORCE ARE COMPLETELY FORBIDDEN.
IT IS FORBIDDEN TO LIFT THE APPLIANCE WITH CRANES AND/OR LIFTING DEVICES.
IT IS FORBIDDEN TO DIRECT COMPRESSED AIR JETS AT PERSONS AND/OR ANIMALS.
IT IS FORBIDDEN TO USE THE APPLIANCE TO MOVE AND/OR LIFT PERSONS, ANIMALS OR OBJECTS.
T IS FORBIDDEN TO MOUNT THE APPLIANCE.
IT IS FORBIDDEN TO TOW THE APPLIANCE USING ANY TYPE OF MEDIUM AND/OR VEHICLE.
IT IS FORBIDDEN TO MANUALLY MOVE THE APPLIANCE UPHILL AND/OR DOWNHILL WHERE DANGEROUS INCLINATIONS
ARE PRESENT.
12. TRANSPORTATION AND
MOVEMENT OF THE APPLIANCE
Themachine can be carried by an operator using the handle
(A - Fig. 3).
THE MACHINE MUST BE MOVED BY AN OPERATOR
IN OBSERVANCE OF THE REGULATIONS GOVERNING
THE „MANUAL HANDLING OF LOADS" IN ORDER TO
PREVENT UNFAVOURABLE ERGONOMIC CONDITIONS
THAT COULD CAUSE BACK INJURY.
13. PACKAGING
The machine is packed by the Manufacturer on a pallet, fixed
with straps and covered by a cardboard box and can only
be moved using a fork lift truck or a transpallet. The pack
contains 1 compressor and 1 instructions manual.
Once the package has been placed on the floor on a flat surface which ensures stability, proceed with unpacking; remove the ap-
pliance from its packaging as per the instructions provided in Paragraph 12.
PLEASE DISPOSE OF THE PACKAGING DIVIDING IT UP ACCORDING TO THE VARIOUS WASTE MATERIALS AND IN
COMPLIANCE WITH LEGISLATION CURRENTLY IN FORCE IN THE COUNTRY OF USAGE.
The appliance must be placed in a work place which satisfies the characteristics described in Paragraph 10; it must be placed on a
flat surface which ensures stability with regards to overall dimensions and weight (see Paragraph 2).
IN ORDER TO ENSURE A SAFE WORKING ENVIRONMENT FOR AUTHORISED OPERATORS, WE RECOMMEND PLACING THE
APPLIANCE AT A MINIMUM DISTANCE OF 1m FROM OTHER OBJECTS/ENTITIES.
• In the instance where the appliance is not to be used for an extended period of time, it must be stored in a safe place, with suitable
temperature and air humidity values, where it is protected from dust.
• Before storing the appliance, we recommend drainingmoisture fromthe air tank.
The machine can be connected to the mains electrical supply by plugging the power cable (7 - Fig. 1) into the special socket.
GENTILIN SRL
Via delle Tezze, 20/22 - 36070 Trissino (VI) ITALY
Tel. +39 0445 962000 - Fax +39 0445 491412
commerciale@gentilin.it - www.gentilin.it
11 Air outlet spigot
12
Air filter
13 Electric motor
14
Condensate pump
15 Pump/Tank connection pipes
16 Non-return valve
17
Tank pressure gauge
18 Fixed cooling fan protective net
19 Single-cylinder pumping assembly

8. WARRANTY

9. RIGHTS RESERVED

10. INTENDED USE

An authorised operator with professional, technical skills as described in Paragraph 6.

11. INCORRECT USE

Fig. 3

14. UNPACKING

15. LOCATION

16. STORAGE

17. ELECTRICAL CONNECTION

A
Rev. 00_06_2016
