200C Series
(Capacitive Ceramic)
Continuous Submersible Level Transmitter

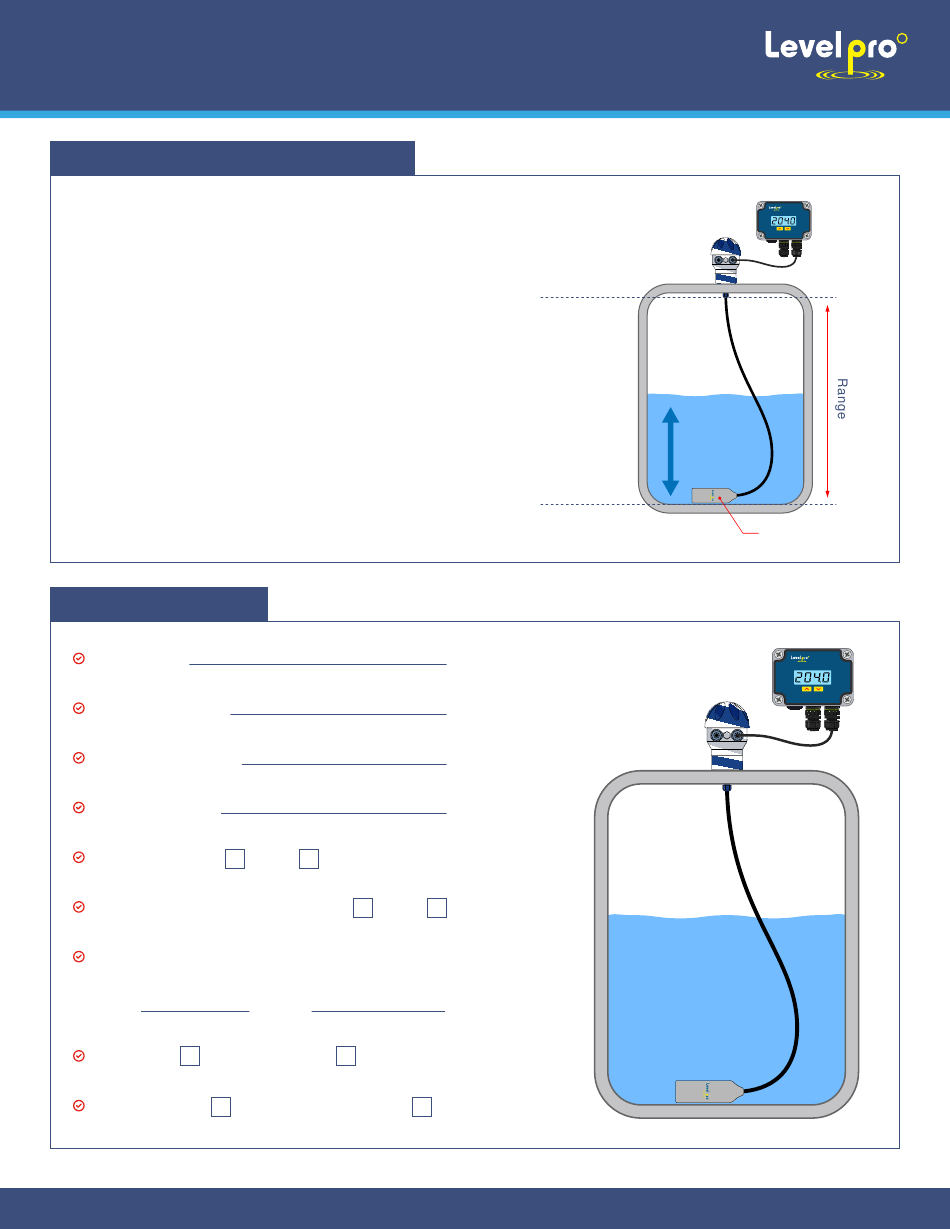

Understanding Level Measurement
Submersible Sensors
All Submersible Sensors have a Calibrated Range that is Based on
H
O that has a Specific Gravity or Density = 1
2
1.
Range Value : The Overall Measuring Distance
that the Sensor has been calibrated to by
the Factory - The Range will be Located on the Sensor Body
2.
Empty : The Pressure being exerted on
from the sensor diaphragm at Lowest Point
Normally this is when the Tank is Empty within the Tank
Empty = 4mA setting.
3.
Full : The Pressure being exerted on the sensor's
diaphragm at the highest point Liquid Level within
the Tank
Full = 20mA setting.
Application Details
Chemical
Concentration
Specific Gravity
Temperature
Solids :
Yes
Out-gassing or Vapors :
Tank Dimensions W x H inches :
W =
Vertical :
Flat Bottom :
No
Yes
No
H =
Horizontal :
Conical Bottom :
20mA = Full
Liquid
Exerts
Pressure on
Diaphragm
4mA = Empty
Diesel
DEF
Chemicals
www.iconprocon.com | sales@iconprocon.com | 905.469.9283
R
R
100%
0%
Sensor Diaphragm
R
13
