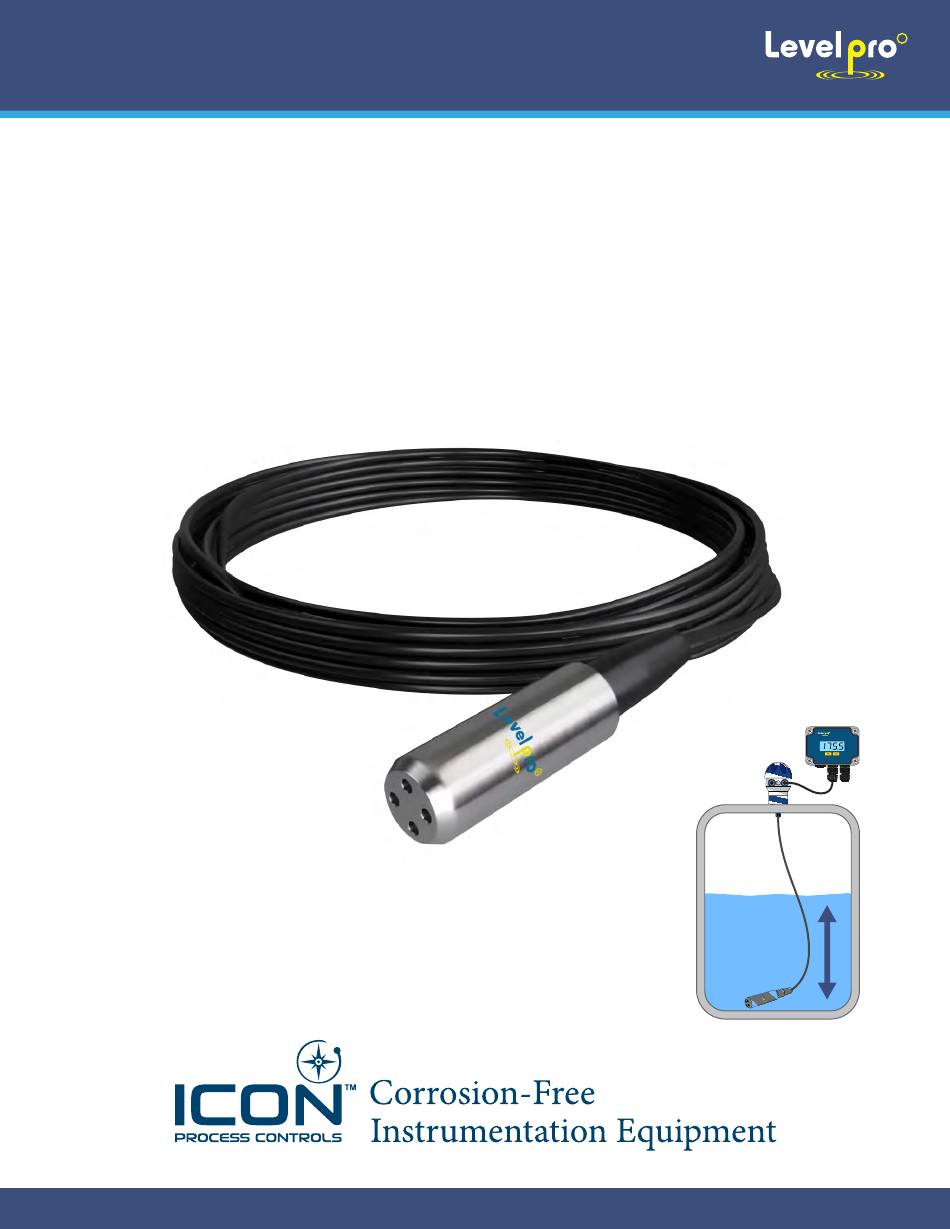

- Page 1 300S Series Continuous Submersible Level Sensor 300S Series Submersible Level Sensors Operating Manual Diesel Chemicals www.iconprocon.com | sales@iconprocon.com | 905.469.9283...
-
Page 2: Table Of Contents
300S Series Continuous Submersible Level Sensor Table of Contents Safety Information Introduction General Information Technical Specifications 300S Series Identification LP100 Junction Box External Tank Level Display & Controller Sensor & Junction Box Installation Sensor & Junction Box Wire Connection Connection Diagram - Sensor + 250B Display Connection Diagram - Sensor + TVL Display Connection Diagram - Sensor + Sentinel LTE + TVL Display Understanding Level Measurement... -
Page 3: Safety Information
300S Series Continuous Submersible Level Sensor Safety Information IMPORTANT! Warning | Caution | Danger Indicates a potential hazard. Failure to follow all indicates situations or cases which, if not avoided, warnings may lead to equipment damage, injury, or could result in damage or failure of the Products death equipment. - Page 4 Carefully remove the pressure measuring device from the package and dispose of the package properly. Mount the device according to your demands. If the probe has been delivered without mounting accessories. Please Contact Icon Process Controls (www.iconprocon.com) for tank connection LP100 Junction Box.
-
Page 5: Technical Specifications
300S Series Continuous Submersible Level Transmitter Technical Specifications Input Pressure Range Level ft/H 2 O 210 | 290 Overpressure Output Signal | Supply Standard 4-20mA | 4-20mA + Hart 2 Wire | 0.5-4.5 VDC Ratiometric | 0-5 VDC | RS-485 3 Wire Power Supply 24 VDC | 5VDC Performance... -
Page 6: 300S Series Identification
300S Series Continuous Submersible Level Transmitter 300S Series Identification Nominal Type Ordering Serial Pressure Range Designation Code Number pressure measurement ® Gortex Breather www. iconprocon.com Type: Code: SN: 0143693 Connector Pinout: Input : 0 - 10 m WC The 300S Series Vs+: Red Signal Output :... -
Page 7: External Tank Level Display & Controller
300S Series Continuous Submersible Level Transmitter External Tank Level Display & Controller ITC-250B Series Tank Level Display (Battery Powered) Features Battery Operated Battery Powered Super Bright LED Digits NEMA 4X Enclosure Security Protection Momentary or Adjustable Relay Timer* NEMA 4X Enclosure LED Display All Plastic - Corrosion Resistant Diesel... -
Page 8: Sensor & Junction Box Installation
300S Series Continuous Submersible Level Transmitter Sensor & Junction Box Installation ® Remove Cord Grip Cut Zip Tie to Retrieve VaporBloc Push Wires & Breather Remove Heat Shrink Discard Heat Shrink Through Cable Gland Remove Filter from Vent Tube ® ®... -
Page 9: Sensor & Junction Box Wire Connection
300S Series Continuous Submersible Level Transmitter ® Ensure VaporBloc has a Snug Fit Place Filter back on Vent Tube Insert Wire into the Junction Box Ensure Cable is fully Inserted Thread Cord Grip Into Junction Box ® VaporBloc Installed Sensor & Junction Box Wire Connection 1/4 Turn Sensor Cable Lid is... -
Page 10: Connection Diagram - Sensor + 250B Display
300S Series Continuous Submersible Level Transmitter Clamp Down Sensor Wire Connection : Sensor Wire Wire Clamp Up wire Terminals # 1 Black wire Terminals # 3 2" NPT Connection Do Not Use Tools Carefully Lower the Sensor Hand Tighten Only Do Not Drop Sensor Thread into Tank Fitting Connection Diagram -... -
Page 11: Connection Diagram - Sensor + Tvl Display
300S Series Continuous Submersible Level Transmitter Connection Diagram - Sensor TVL Display Wiring to a Loop Powered Display : Alarm ProAlert-1000 Audible / Vesual Examples : Pump Shut-Off Valve Shut-Off Output Relays Magnetic Contactor Relay Output Relays Contactor-Valve Pump Power Supply 120VAC Terminal 1 &... -
Page 12: Connection Diagram - Sensor + Sentinel Lte + Tvl Display
300S Series Continuous Submersible Level Transmitter Connection Diagram - Sensor Sentinel LTE TVL Display Junction Box Terminals Power Supply Junction Box Terminals 120VAC wire Terminal 6 Black wire Terminal 1 13 12 11 10 09 08 07 04 03 02 01 TVL Terminals TVL Terminals wire Terminal 8... -
Page 13: Understanding Level Measurement
300S Series Continuous Submersible Level Transmitter Understanding Level Measurement Submersible Sensors All Submersible Sensors have a Calibrated Range that is Based on H O that has a Specific Gravity or Density = 1 20mA = Full Range Value : The Overall Measuring Distance 100% that the Sensor has been calibrated to by Liquid... -
Page 14: Getting Started
300S Series Continuous Submersible Level Transmitter Getting Started Submersible Pressure Sensore are designed to be completely submersed within the liquid. The transmitters can rest along the bottom of the tank or be suspended at any desired level within the tank. Please note that the physical location of the level transmitter will indicate the lowest level of measurement within the tank. -
Page 15: Calculating Max Range Of Sensor
300S Series Continuous Submersible Level Transmitter Calculating Max Range of Sensor Lets assume a the calibrated range of the submersible sensor is 34" or 408. The range is always referenced H O which has a specific gravity S.G or (Density) equal to 1 Calibrated Range/S.G = Liquid Level Measurement Range 34/1 = 34' or 408/1 = Liquid Level Range = 408"... -
Page 16: Correction Sensor Position
300S Series Continuous Submersible Level Transmitter Correction Sensor Position Fig A The Submersible Level Sensor is designed to operate while submerged in the actual application liquid. Avoid installing the level transmitter along the bottom of the tank if materials such as sludge will build up and coat/cover the transmitter. -
Page 17: Trouble Shooting
300S Series Continuous Submersible Level Transmitter Trouble Shooting DIGITAL MULTIMETER Trouble Shooting the Sensor 1. First, verify that the sensor is wired correctly. 2. Next, check if the power supply is providing the required power. 1000 24V DC POWER SUPPLY 2000 2000 4.00... -
Page 18: Warranty, Returns & Limitations
(MRA) request form and follow the instructions therein. All warranty and non-warranty product returns to Icon Process Controls must be shipped prepaid and insured. Icon will not be responsible for any products lost or damaged in shipment.
