Connection Diagram - Sensor + Tvl Display - ICON Level pro 200C Series Operating Manual

200C Series
(Capacitive Ceramic)
Continuous Submersible Level Transmitter

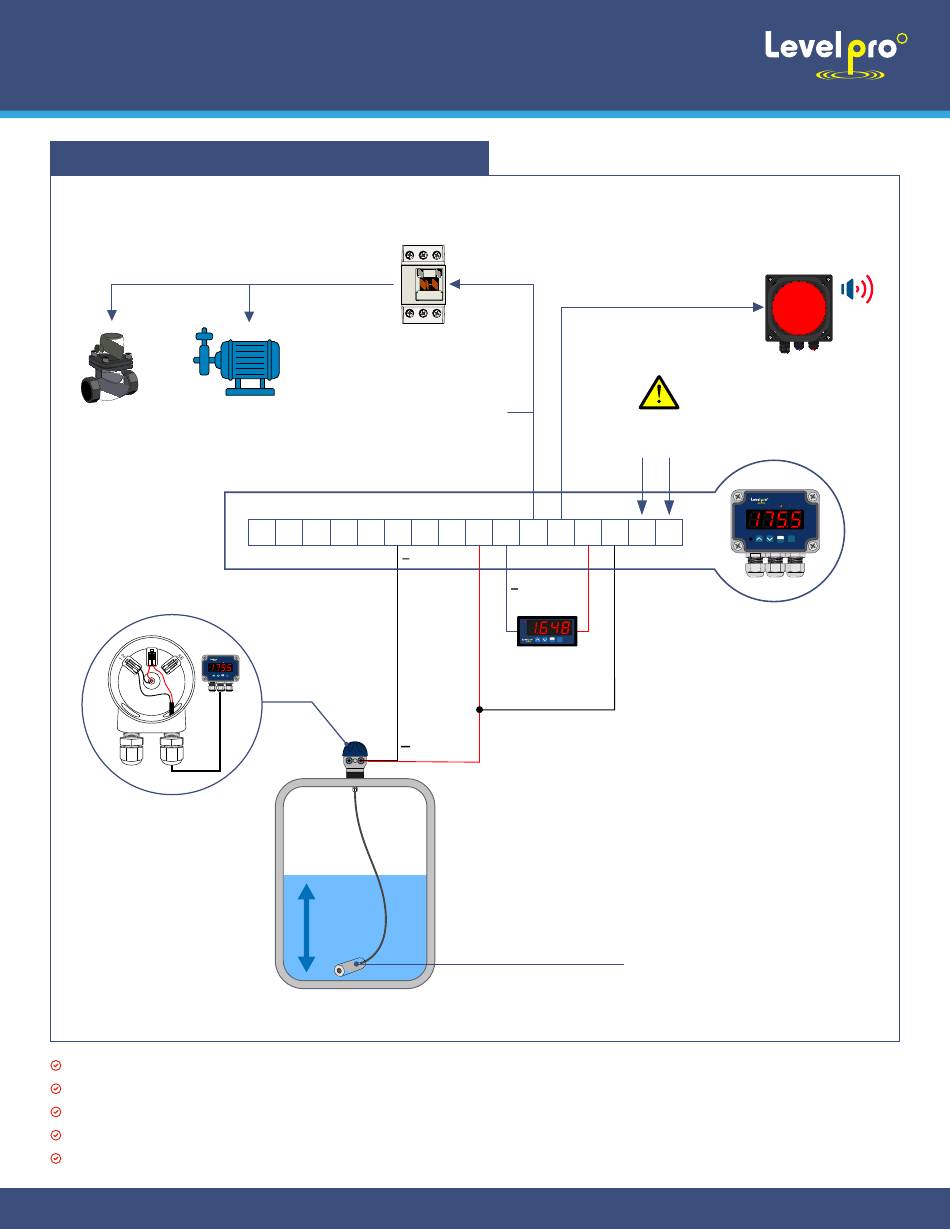

Connection Diagram -
Wiring to a Loop Powered Display :
Examples : Pump Shut-Off
Valve Shut-Off
Contactor-Valve
TVL Channel Terminals
3 4
R
A L R 1 R 2
ESC
ENTER
MENU
Wiring LP 100
Junction Box
Wiring to the Levelpro Series Tank Level Controller
The default for the Input 1 is 4 mA and this will not change.
Typically, the Empty setting will be the tank is empty (example. 000.0 Gallons, 000.0 inches, 000.0 feet etc.).
20mA typically reflects the Full setting will be when the tank is full (example: 500.0 Gallons, 120.0 inches, 10.0 feet, etc.)
Shielded cable is recommended for control loop wiring.
Use the Red wire as the (+) and the Black wire as the (-)
Sensor + TVL Display
Magnetic
Contactor Relay
Output Relays
Pump
16 15 14 13 12 11 10 9
Output Relays
Power Supply 120VAC
Terminal 1 & 2
8 7 6 5 4 3
+
4-20
+
Output
AL
R1
R2
R3
R4
R ESC
ENTER
MENU
External
Display
Jumper wire
3 to 8
+
200C Series Level Sensors
www.iconprocon.com | sales@iconprocon.com | 905.469.9283
Alarm
ProAlert-1000
Audible / Vesual
R
A L R 1 R 2
2 1
ESC
ENTER
MENU
TVL Series
Level Process
Display | Controller
R
