Summary of Contents for Fieldmann FZR 2041-E

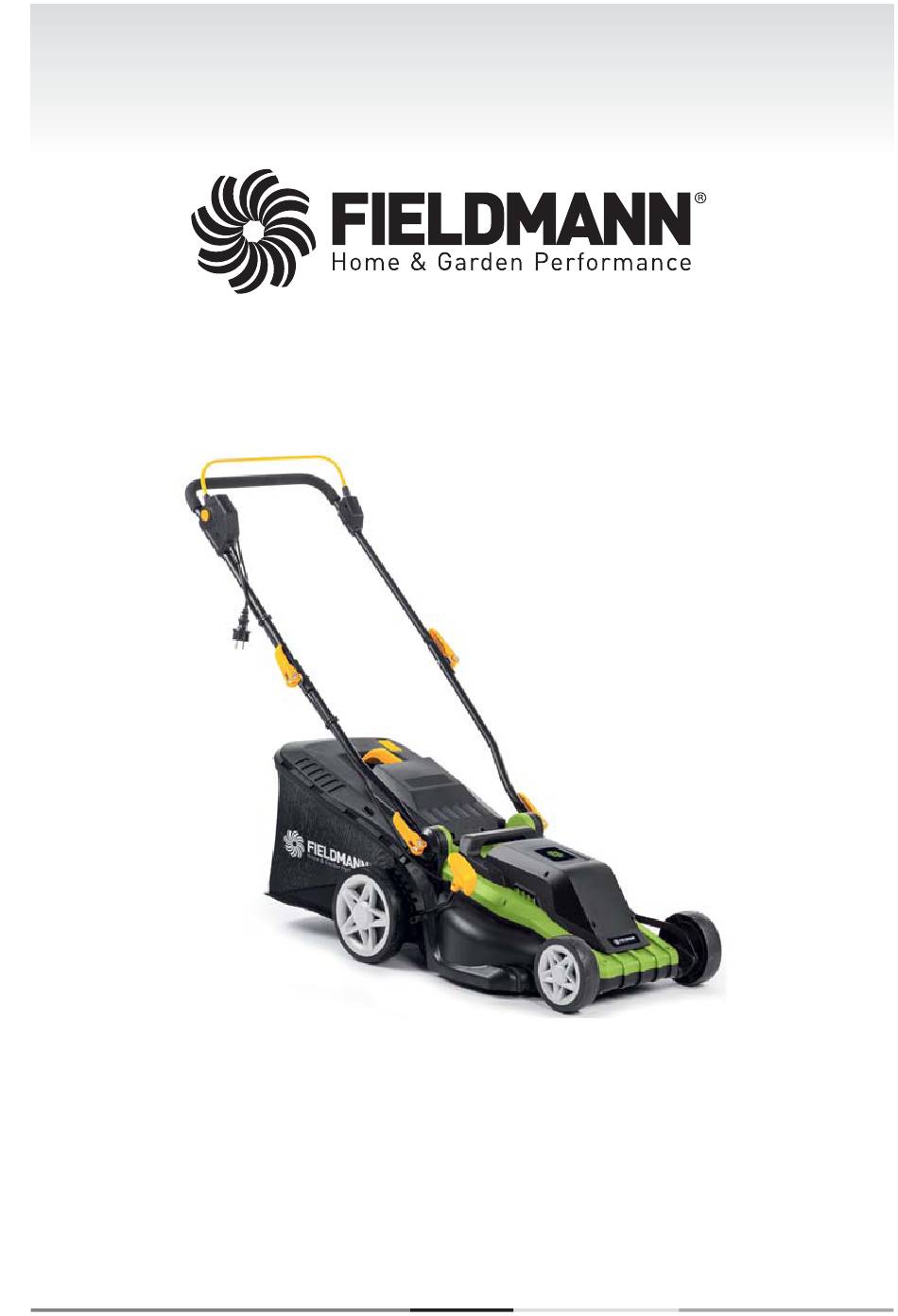

- Page 1 FZR 2041-E...
- Page 2 English ........................................3 - 16 Čeština........................................17 - 30 Slovenština ......................................31 - 44 Magyarul ......................................45 - 58 Polski .........................................59 - 78 FZR 2041-E...
-
Page 3: Table Of Contents
Table of contents Electric Lawn mower USER MANUAL Thank you for purchasing this rotary electric lawn mower. Before you start using it, please read this user manual carefully and save it for future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 Important safety notice ............................4 Packaging ..................................4 User manual ...................................4... -
Page 4: General Safety Regulations
User manual. The User manual also contains operating, maintenance, and repair instructions. The manufacturer takes no responsibility for accidents or damages from not following the instructions in this manual. FZR 2041-E... -
Page 5: Symbols
Symbols 2. SYMBOLS Read the manual with the instructions before using this machine. Bystanders must be at a safe distance. Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cable is damaged, disconnect the plug from the mains. -
Page 6: Description (Fig. 1.)
3. Top part of the handle 4. Handle fast clamp 5. Bottom part of the handle 6. Transport handle 7. Mowing height adjustment lever 8. Bottom handle quick couplers - handle height adjustment 9. Power cord plug FIG. 1 FZR 2041-E... -
Page 7: Basic Work Safety
Basic work safety 4. BASIC WORK SAFETY Never use the machine if the power cable is damaged or visibly worn. If the lawnmower is connected to a power source using a damaged power cable and the place that is not insulated is touched before the lawnmower is disconnected from the power source, you risk being electrocuted. -
Page 8: Before You Start Using The Lawn Mower
The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. Be very careful when changing direction on a slope. Never use the lawn mower on extremely steep slopes. FZR 2041-E... -
Page 9: Maintenance And Storage
Basic work safety If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the lawnmower, be very careful. Always stop the blades from turning when transporting the machine or moving over an un-grassed area. Never use the machine if any covers are damaged or if any of its safety elements are missing such as defl... -
Page 10: Assembly
Put the lawnmower wheel on to the axle. Figure 3. 1 , pos. 1. Put on the washer and secure in place using the cotter pin. Figure 3. 1 , pos. 2 and 3. Finally put on the wheel cover. Repeat this procedure for all 4 wheels. FIG. 2.2 FIG. 2.1 FIG. 3.1 FZR 2041-E... -
Page 11: Assembling And Mounting The Grass Catcher
Assembly 5.3 ASSEMBLING AND MOUNTING THE GRASS CATCHER. FIG. 4.1 Insert the handle into the grass catcher cover. See Fig. 4. 1 . Mount textile part on the cap of catcher and the frame. Fig 4.2. Fitting the grass catcher: Lift the rear cover, keep it lifted and attach the catcher. -
Page 12: Operation
6.4.2 Turning it off: Release the switching lever, see Fig. 6, point 2 ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. ATTENTION: Do not turn the lawn mower off and on in quick succession. FZR 2041-E... -
Page 13: Technical Specifications
Technical specifications 7. TECHNICAL SPECIFICATIONS Model FZR 2041-E Power source 230-240 V, 50 Hz Power input 1800 W Idling speed 3500 rpm Coverage width (blade length): 380 mm Mowing heights 25-75 mm (6 positions) Grass catcher volume 45 l Weight when empty:... -
Page 14: Troubleshooting
Repair the mower before starting it again. If the vibrations continue, call the free client line. The blade is not balanced. Balance the blade evenly by grinding each cutting edge. FZR 2041-E... -
Page 15: Maintenance
Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 9.1 BLADE REPLACEMENT Contact an authorised service centre. -
Page 16: Disposal
This appliance meets all the basic requirements of the EU directives. The text, design and technical specifi cations can be changed without prior notice and we reserve the right to make these changes. User manual in the original language. FZR 2041-E...
