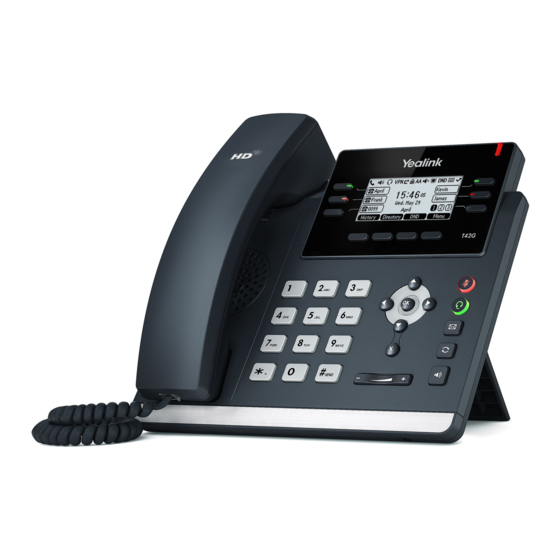

Yealink T42G User Manual
Hide thumbs
Also See for T42G:
- User manual (29 pages) ,
- Quick start manual (12 pages) ,
- Configuring (10 pages)
Related Manuals for Yealink T42G
Summary of Contents for Yealink T42G
- Page 1 Claranet | Hosted Voice v2 Yealink T42 User Guide | All Rights Reserved © 2010 Claranet Contents Claranet Hosted Voice v2 Yealink T42G User Guide March 2018...
-
Page 2: Table Of Contents
2 - Title Yealink SIP-T42G ............................. 3 Phone Installation ............................ 4 Provisioning ............................. 7 Getting to know your phone ......................... 7 Hardware Component Instructions ....................7 Icon Instructions ..........................8 Phone Display (Views) ........................10 Basic Call Features ..........................11 Placing Calls .......................... -
Page 3: Yealink Sip-T42G
• Handset • Handset cord • Ethernet cable • If you have any problems setting Phone stand up or using your Yealink IP • Quick start guide Phone, please contact Claranet • Power adapter (Optional) Support • Wall mount bracket... -
Page 4: Phone Installation
4 - Title Emergency Calls – important information please note Access to Emergency Services is provided but calls including emergency calls to 999 or 112, made via Hosted Voice may not work in the event of power or broadband connection failure. These failures may be caused by reasons outside our control. - Page 5 Title 7.0 - 5 Connect the handset and optional headset Connect the network and power You have two options for power and network connections. Your system administrator will advise you which one to use. • AC power (Optional) • Power over Ethernet (PoE) AC Power (Optional) To connect the AC power: Connect the DC plug on the power adapter to the DC5V port on the phone and connect the other...
- Page 6 6 - Title Power over Ethernet With the included or a regular Ethernet cable, the SIP-T42G IP phone can be powered from a PoE- compliant switch or hub. To connect the PoE: Connect the Ethernet cable between the Internet port on the phone and an available port on the in-line power switch/hub.
-
Page 7: Provisioning
Title 7.0 - 7 Provisioning Your Yealink SIP-T42G IP Phone will be pre-loaded with all the information it needs to automatically provision once all the connections have been made. Once connected to the network port that is providing network access the phone will do a series of firmware updates (please allow the phone time to complete). -
Page 8: Icon Instructions
8 - Title Item Description Shows information about calls, messages, soft keys, time, date and other relevant data: • Call information—caller ID, call duration • Icons (for example , ① LCD Screen • Missed call text or second incoming caller information •... - Page 9 Title 7.0 - 9 Icon Description Headset mode Voice Mail Auto Answer Do Not Disturb Call Hold Call Mute Ringer volume is 0 Keypad Lock Alphanumeric input mode Numeric input mode Multi-lingual lowercase letters input mode Multi-lingual uppercase letters input mode Multi-lingual uppercase and lowercase letters input mode Call Forward/Forwarded Calls...
-
Page 10: Phone Display (Views)
10 - Title Phone Display (Views) Idle Status The idle screen displays the label of current account, time and date, and four soft keys. Phone Status You can view phone status via phone user interface or web user interface. Available information of phone status includes: •... -
Page 11: Basic Call Features
Title 7.0 - 11 Basic Call Features Placing Calls You can place a call in three ways using your SIP-T42G IP phone: • Using the handset • Using the speakerphone • Using the headset You can also dial the number first, and then choose the way you want to speak to the other party. -
Page 12: Transferring Calls
12 - Title Transferring Calls You can transfer a call to another party in one of the three ways: • Blind Transfer: Transfer a call directly to another party without consulting. • Semi-Attended Transfer: Transfer a call when the target phone is ringing. •... -
Page 13: Do Not Disturb (Dnd)
Title 7.0 - 13 • Press the Cancel soft key to drop the conference call. Do Not Disturb (DND) Press the DND soft key when the phone is idle. icon on the idle screen indicates that DND is enabled. Incoming calls will be rejected automatically and "n Missed Call(s)" ("n" indicates the number of the missed calls) will prompt on the LCD screen. -
Page 14: General Information
14 - Title 1. When the phone user interface prompts receiving new voice mails and the power indicator LED slow flashes red, press or the Connect soft key to dial out the voice mail access code. Follow the voice prompt to listen to voice mails. General information Important •... - Page 15 Title 7.0 - 15 • Your IP Phone is guaranteed for a period of 12 months from the date of purchase. • Subject to the terms listed below, the guarantee will provide for the repair of, or at the Service Provider or its agent’s discretion, the option to replace the Phone or any component thereof, (other than batteries), which is identified as faulty or below standard, or as a result of inferior workmanship or materials.
