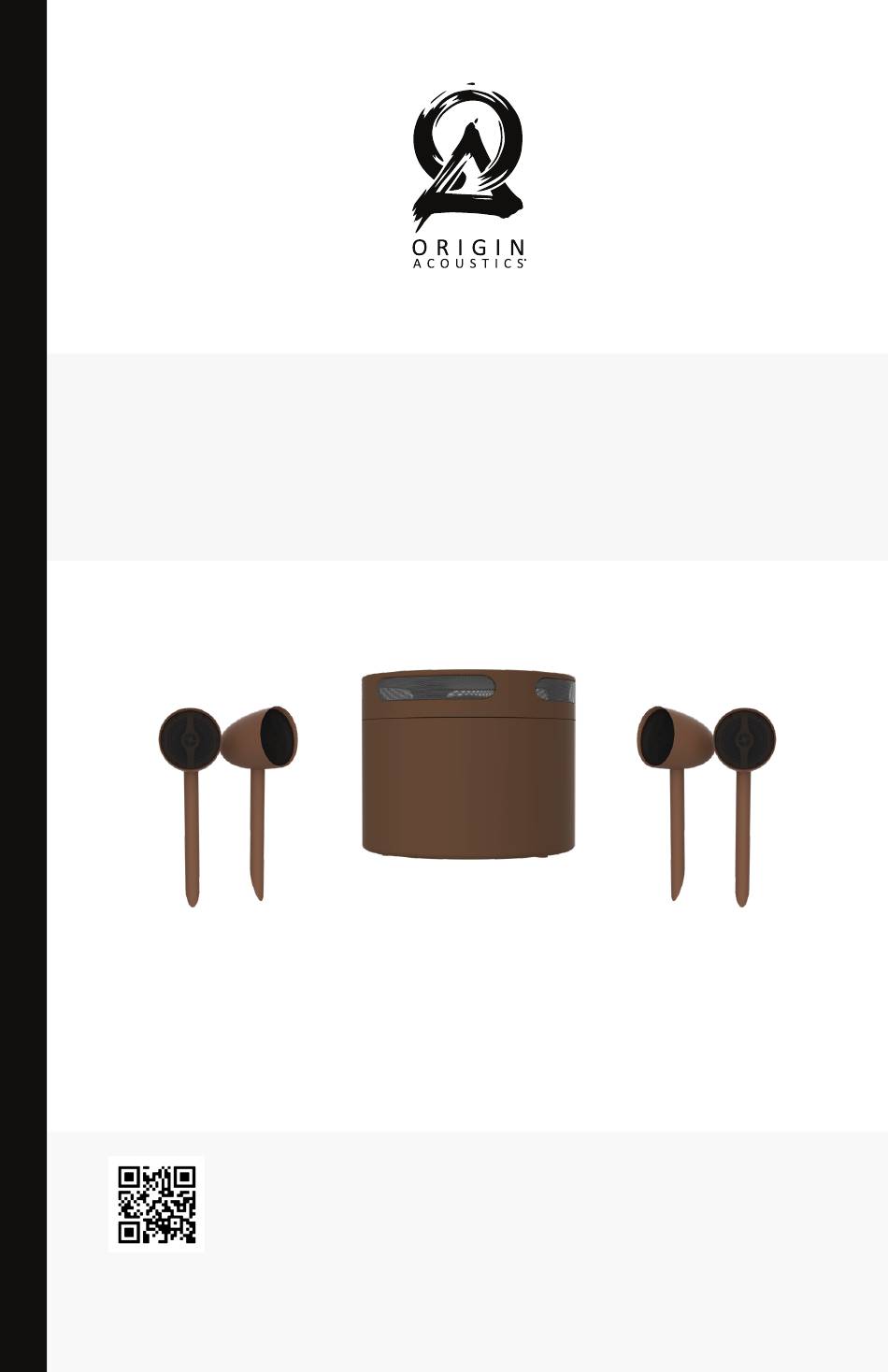

ACOUSTIC LANDSCAPE COLLECTION
AS50SYS
Installation Manual
AS50SYS
Please visit docs.originacoustics.com or scan this QR code using your smart device for the
most up to date safety information and use instructions for this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACOUSTIC LANDSCAPE COLLECTION AS50SYS and is the answer not in the manual?

Questions and answers

Summary of Contents for Origin Acoustics ACOUSTIC LANDSCAPE COLLECTION AS50SYS

  • Page 1 ACOUSTIC LANDSCAPE COLLECTION ™ AS50SYS Installation Manual AS50SYS Please visit docs.originacoustics.com or scan this QR code using your smart device for the most up to date safety information and use instructions for this product.
  • Page 2: Table Of Contents

    Table of Contents Introduction Specifications What’s Included Tools Needed Wire Recommendation System Planning System Location Amplifier & Wiring Plan Wiring Plan with Origin PRO ProA250.2 Amplifier Wiring Plan with Origin DSP2-200 Amplifier About Speaker Wire Installing the System Installing the Wire Troubleshooting Technical Assistance Warranty...
  • Page 3: Introduction

    Introduction Thank you for purchasing the AS50 Hi-Fi Landscape Audio System. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process.
  • Page 4: Specifications

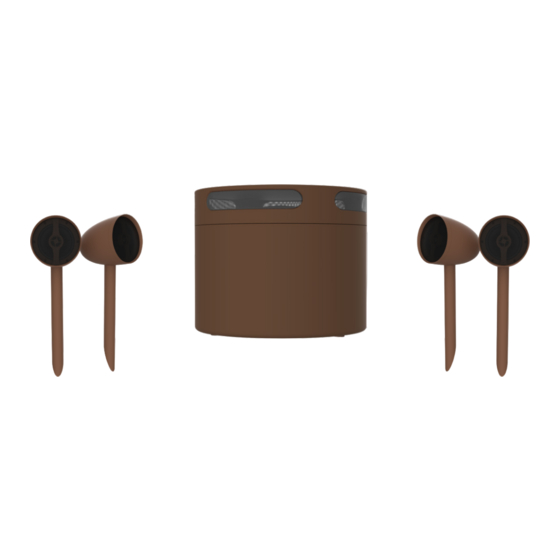

    Specifications MODEL AS50SYS PART AS5000SYS ( 4 Satellites & 1 Subwoofer) Satellite Woofer 5 1/ 4 '' Poly/Rubber Woofer Satellite Tweeter 1'' Titanium Subwoofer 10'' Dual Voice Coil Poly/Rubber Woofer Frequency Response 35Hz-20kHz System Power Handling 160W RMS/ 400W Peak (per Channel) Impedance 6 Ω...
  • Page 5: What's Included

    Pencil • Shovel Wire Recommendation Origin Acoustics The gauge of wire used can have an impact on the performance of your speakers. ® Use a multi-stranded wiring designed for amplifier to speaker connections. Which gauge to select depends on the length of wire to be used on any particular speaker.
  • Page 6: System Planning

    System Planning The Acoustic Landscape speakers and subwoofer should be strategically placed to evenly distribute sound throughout the outdoor area. Fully plan out the locations of all speakers, subwoofers and buried wires before beginning the installation process. Subwoofer Speakers AS5SAT •...
  • Page 7: Wiring Plan With Origin Pro Proa250.2 Amplifier

    /SUB Right Channel Speakers /SUB Wiring Plan with Origin PRO ProA250.2 Amplifier Origin ProA250.2 Ampli er Speakers & Subwoofer Amp Output mode set to Hi-Z -70V/100V [Bridge mode] • OUTPUT CH1/CH2 for Satellites • OUTPUT CH3/CH4 for Subwoofers Speakers & Subwoofer Origin ProA250.2 Ampli er Fig.
  • Page 8: Wiring Plan With Origin Dsp2-200 Amplifier

    Speakers & Subwoofer Wiring Plan with Origin DSP2-200 Amplifier SPEAKER 100-120V~60Hz/220-240V~50Hz 400W SUB OUT BRIDGED IN(L) EQ PRESET Speakers & Subwoofer AUTO ON OPTICAL OPTICAL +12V UPDATE FUSE T6.3AL/250 V TRIGGER IN Fig. 1 - With 4 Satellites SPEAKER /SUB /SUB Speakers &...
  • Page 9: About Speaker Wire

    About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle.
  • Page 10 4 in 326 mm 6-8.5 in 2-4 in D. Place subwoofer, as level as possible, not tilted, in the center of hole & use loose dirt to level the subwoofer, ensuring the subwoofer is not in direct contact with any large rocks or large empty holes. E.
  • Page 11: Installing The Wire

    Installing the Wire A. Wire from Amplifier to Satellite Speakers Bundle all three of the left channel positive wires (wire from the amplifier, wire to the first speaker, and wire to the rest of the speakers) together and connect them with the first wire nut.
  • Page 12 ers & Subwoofer B. Wire from Amplifier to Subwoofer The subwoofer should have four input connections. Using the wire nuts, connect both left and right channels to the subwoofer, making sure positive is connected /SUB to positive and negative is connected to negative. Continue down the line and connect the rest of the speakers.
  • Page 13: Troubleshooting

    Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them.
  • Page 14: Technical Assistance

    Technical Assistance If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674-4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: sales@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared to answer these questions over the phone.
  • Page 15: Warranty

    Limited 5 Year Warranty Acoustic Landscape warrants to the original retail purchaser only that this Acoustic Landscape product will be free from defects in materials and workmanship, provided the speaker was purchased from an Acoustic Landscape authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Acoustic Landscape’s discretion.
  • Page 16: Return Process

    Not Covered by Warranty • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Acoustic Landscape or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues •...
