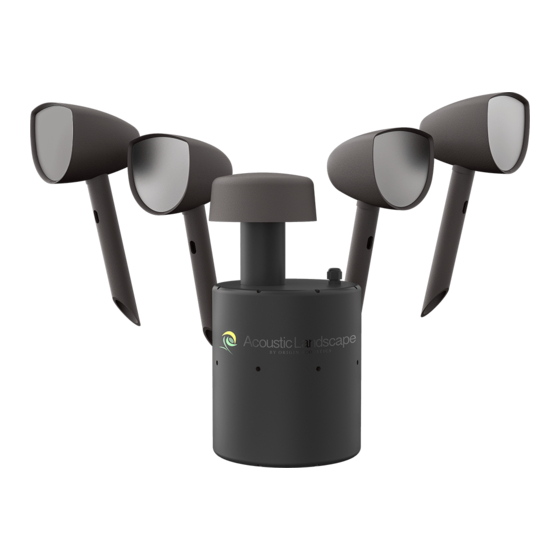

- Page 1 Seasons Outdoor Collection ™ AS41SYS Installation Manual AS41SYS...
-
Page 2: Table Of Contents
Seasons Outdoor Collection™ Manual Table of Contents Introduction Specifications What’s Included Tools & Items Wire Recommendation Planning System Location Amplifier & Wiring About Speaker Wire Installing the System Installing the Wire Troubleshooting Technical Assistance Warranty Return Process... -
Page 3: Introduction
Seasons Outdoor Collection™ Manual Introduction Thank you for purchasing the AS41 Hi-Fi Landscape Audio System. At Acoustic Landscape, we take pride in providing you with a high quality product. All of Acoustic Landscape’s speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
Seasons Outdoor Collection™ Manual Specifications MODEL AS41SYS PART AS4100SYS (4 Satellite & 1 Subwoofer) Satellite Woofer 4 1/ 2 ” Poly Tweeter 3/ 4 ” PEI Subwoofer 8” Poly Frequency Response 39Hz-20kHz Power RMS 100 Watts (System) Power Peak 200 Watts (System) Impedance 8 ohm (systems) Enclosure... -
Page 5: What's Included
Seasons Outdoor Collection™ Manual What’s Included Speaker Subwoofer Wire Nuts Tools & Items • Drywall Saw • Wire Stripper • Screwdriver • Speaker Wire • Measuring Tape • Pencil • Shovel Wire Recommendation The gauge of wire used can have an impact on the performance of your speakers. Use a multi-stranded wiring designed for amplifier to speaker connections. -
Page 6: Planning
Seasons Outdoor Collection™ Manual Planning The Acoustic Landscape speakers and subwoofer should be strategically placed to evenly distribute sound throughout the outdoor area. Fully plan out the locations of all speakers, subwoofers and buried wires before beginning the installation process. System Location Speakers should be fairly evenly Subwoofer... - Page 7 Seasons Outdoor Collection™ Manual Fig. 1 Speakers Source Expansion Subwoofer Packs Speakers 2-Ch Amplifier Fig. 2 Speakers Source Expansion Subwoofer Packs Subwoofer Amplifier Amplifier 2-Ch Fig. 3 3-Ch...
-
Page 8: About Speaker Wire
Seasons Outdoor Collection™ Manual About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle. -
Page 9: Installing The Wire
Seasons Outdoor Collection™ Manual 2. Installing the Wire Bundle all three of the left channel Wire Nuts positive wires (wire from the amplifier, wire to the first speaker, and wire to the rest of the speakers) together To Speaker From Amplifier and connect them with the first wire nut. -
Page 10: Troubleshooting
Seasons Outdoor Collection™ Manual Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them. -
Page 11: Technical Assistance
Seasons Outdoor Collection™ Manual Technical Assistance If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674-4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: techsupport@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 12: Warranty
Seasons Outdoor Collection™ Manual Limited 5 Year Warranty Acoustic Landscape warrants to the original retail purchaser only that this Acoustic Landscape product will be free from defects in materials and workmanship, provided the speaker was purchased from an Acoustic Landscape authorized dealer. -
Page 13: Return Process
Seasons Outdoor Collection™ Manual Not Covered by Warranty • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Acoustic Landscape or an authorized dealer • Damage caused by improper installation •... - Page 14 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
