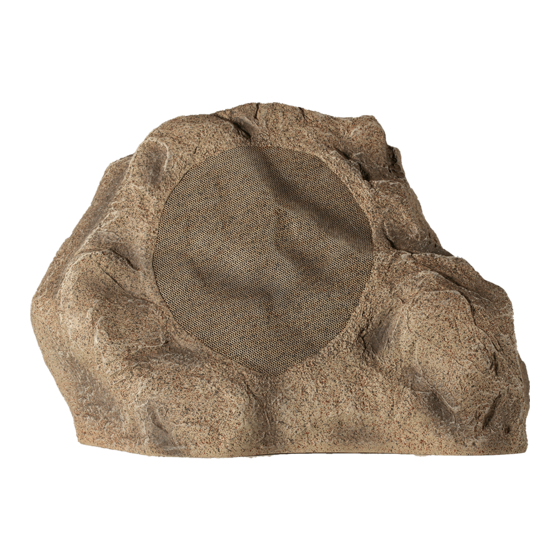

- Page 1 Seasons Outdoor Collection ™ Rock Speakers OSR85 OSR65 OSR8SUB Installation Manual OSR85, OSR65, OSR8SUB...
-
Page 2: Table Of Contents
Seasons Outdoor Collection™ Table of Contents Introduction --------------------------------------------- Models & Specifications ------------------------------ Items Included ------------------------------------------ System Design ------------------------------------------ Tools & Items -------------------------------------------- Speaker Wire -------------------------------------------- Wire Recommendation ------------------------------- Installation ----------------------------------------------- Speaker Placement Connecting the Wires Testing & Adjustments -------------------------------- Maintenance and Care ------------------------------- Troubleshooting ---------------------------------------- Technical Assistance ----------------------------------- Warranty --------------------------------------------------... -
Page 3: Introduction
At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Models & Specifications
Seasons Outdoor Collection™ Specifications MODEL OSR85 PART OSR8500 Woofer 8” Injection Polypropylene with Rubber Surround Tweeter 1” (25mm) Titanium Frequency Response 40Hz – 20kHz Power RMS 100 Watts Dimensions 15 x 21 x 16” (38 x 52 x 39 cm) Weight 11 lbs (5 kg) Impedance... -
Page 5: System Design
Seasons Outdoor Collection™ System Design 70V / 8 Ω System 70-volt systems are advantageous when the design calls for multiple speakers from the same amplifier and/or long-distance wire runs. The 70V/8 ohm Rock Collection speakers feature multiple taps off the transformer adjusted by a rotary switch on the bottom side of the speaker. -
Page 6: Tools & Items
Seasons Outdoor Collection™ Tools & Items • Trench Spade/Shovel • Measuring Tape • Speaker Wire/Direct Burial wire • Wire Stripper • Waterproof Wire Nuts (Included) About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. -
Page 7: Installation
Seasons Outdoor Collection™ Installation 1) Speaker Placement Determine the location of your ROCK speakers. Designate the general area where the speakers would be most ideal. The speakers should face the general listening area and be placed at or close to the same distance from that point for good stereo sound. Place the speakers in the location where they will camouflage with your surroundings. - Page 8 Seasons Outdoor Collection™ 5. Run the wire through the trench from your amplifier to the speaker locations. Do not connect the wires to the amplifier at this time. 6. Connect the speaker wires you ran from your amplifier to the wires that came attached to the speakers.
-
Page 9: Testing & Adjustments
Seasons Outdoor Collection™ Testing & Adjustments Turn your amplifier on and test the system with music of your choice. Sound Distribution • Connecting all Rock speakers in Stereo connection gives an even sound distribution of both Left and Right channel at any location. •... -
Page 10: Troubleshooting
Seasons Outdoor Collection™ Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 11: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 12: Warranty
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 13: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 14 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
