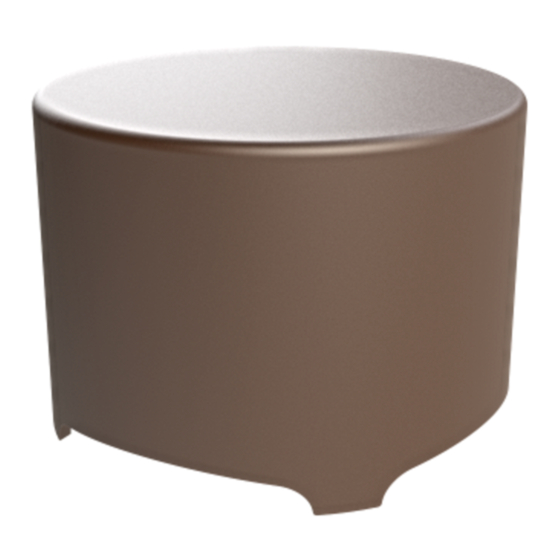

- Page 1 OSUB Series Seasons Landscape Collection Installation Manual OSUB10P...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications What’s Included Tools & Items Wire Recommendation Planning About Speaker Wire Installing the Wire Wire Routing Connecting the Wire Placing the Subwoofer Troubleshooting Technical Assistance Warranty Return Process... -
Page 3: Introduction
Introduction Thank you for purchasing the Seasons Landscape OSUB Subwoofer. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. This instruction booklet covers the necessary information for a smooth installa- tion, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information. -
Page 4: Specifications
Specifications Model OSUB10P Part Number OSUB10P1000 Woofer Cone Polypropylene Woofer 10” (254mm) Diameter Frequency 35 Hz - 150 Hz Response Impedance 8 ohm / 70 V Dimensions 15.75 x 11.25 x 15.75” (400 x 286 x 400mm) -
Page 5: What's Included
What’s Included Subwoofer Tools & Items • Direct Burial Wire • Wire Stripper • Shovel • Speaker Wire • Measuring Tape • Screwdrivers Wire Recommendation The gauge of wire used can have an impact on the performance of your speakers. Use a multi-stranded wiring designed for amplifier to speaker connections. -
Page 6: Planning
Planning The Landscape satellite speakers and subwoofers should be strategically placed to evenly distribute sound throughout the outdoor area. Fully plan out the loca- tions of all satellite speakers, subwoofers and buried wires before beginning the installation process. Origin satellite speakers have been specially designed so that you can set them in the 70v configuration for large installs, or for small installs they can be set to 8Ω... -
Page 7: Installing The Wire
colors or patterns are used. You can choose whichever color of wire you want to be positive and negative as long as you remain consistent throughout the install. On both your amplifier and your speaker the connectors will be identified as red for positive and black for negative. -
Page 8: Connecting The Wire
Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be baseboard by cutting a groove out of sure to avoid all obstacles such as AC the back of the baseboard, or by buy- wiring, pipes, and ducts. -
Page 9: Placing The Subwoofer
3. Placing Subwoofer Select a location for the subwoofer somewhat near the middle of the satellite speaker arrangement. One subwoofer will provide bass to about 1000 to 2000 sq ft. When using multiple subwoofers, space them out evenly and about equal- distance from the listening area. -
Page 10: Troubleshooting
Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them. -
Page 11: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return at- tempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 12: Warranty
Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, pro- vided the speaker was purchased from an Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Ori- gin Acoustics’... -
Page 13: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 14 Mission Inn Rotunda, 3649 Mission Ave, 1st Floor, Riverside CA 92501 • www.originacoustics.com • 844-674-4461 ©2016 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
