- Page 1 ACOUSTIC LANDSCAPE COLLECTION ™ AS41SYS AS41SYS Installation Manual AS41SYS...
-
Page 2: Table Of Contents
Acoustic Landscape Collection™ Manual Table of Contents Introduction Specifications What’s Included Tools & Items Wire Recommendation Planning System Location Amplifier & Wiring About Speaker Wire Installing the System Installing the Wire Troubleshooting Technical Assistance Warranty Return Process... -
Page 3: Introduction
Acoustic Landscape Collection™ Manual Introduction Thank you for purchasing the AS41 Hi-Fi Landscape Audio System. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications

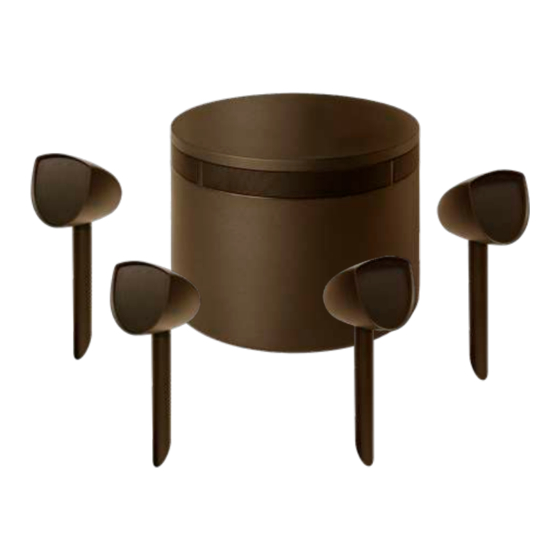

Acoustic Landscape Collection™ Manual Specifications MODEL AS41SYS PART AS4100SYS (4 Satellite & 1 Subwoofer) Satellite Woofer ” Injection Molded Polypropylene Tweeter 3/ 4 ” PEI Mylar Subwoofer 10” Dual Voice Coil Polypropylene Frequency Response 35Hz-20kHz (±3 dB) Power RMS 120 Watts (System) Power Peak 240 Watts (System) Impedance... -
Page 5: What's Included
Acoustic Landscape Collection™ Manual What’s Included Speaker Subwoofer Wire Nuts Tools & Items • Drywall Saw • Wire Stripper • Screwdriver • Speaker Wire • Measuring Tape • Pencil • Shovel Wire Recommendation The gauge of wire used can have an impact on the performance of your speakers. Use a multi-stranded wiring designed for amplifier to speaker connections. -
Page 6: Planning
Acoustic Landscape Collection™ Manual Planning The Acoustic Landscape speakers and subwoofer should be strategically placed to evenly distribute sound throughout the outdoor area. Fully plan out the locations of all speakers, subwoofers and buried wires before beginning the installation process. System Location Speakers should be fairly evenly Subwoofer... - Page 7 Acoustic Landscape Collection™ Manual Fig. 1 Speakers Speakers Sub Right Ch. Sub Right Ch. Right Ch. Right Ch. Expansion Subwoofer Expansion Packs Subwoofer Packs Subwoofer DSP2-200 Ampli er Subwoofer Ampli er DSP2-200 Ampli er Ampli er Left Ch. Left Ch. Sub Left Ch.
-
Page 8: About Speaker Wire
Acoustic Landscape Collection™ Manual About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle. - Page 9 Acoustic Landscape Collection™ Manual 4 in 326 mm 6-8.5 in 2-4 in D. Place subwoofer, as level as possible, not tilted, in the center of hole & use loose dirt to level the subwoofer, ensuring the subwoofer is not in direct contact with any large rocks or large empty holes.
-
Page 10: Installing The Wire
Acoustic Landscape Collection™ Manual 2. Installing the Wire 2a. Wire from Amplifier to Satellite Speakers Bundle all three of the left channel positive wires (wire from the amplifier, wire to the first speaker, and wire to the rest of the speakers) together and connect them with the first wire nut. - Page 11 Acoustic Landscape Collection™ Manual 2b. Wire from Amplifier to Subwoofer The subwoofer should have four input connections. Using the wire nuts, connect both left and right channels to the subwoofer, making sure positive is connected to positive and negative is connected to negative. Continue down the line and connect the rest of the speakers.
-
Page 12: Troubleshooting
Acoustic Landscape Collection™ Manual Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the tele- vision, DVD player, or the cables connecting them. -
Page 13: Technical Assistance
Acoustic Landscape Collection™ Manual Technical Assistance If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674-4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: techsupport@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 14: Warranty
Acoustic Landscape Collection™ Manual Limited 5 Year Warranty Acoustic Landscape warrants to the original retail purchaser only that this Acoustic Landscape product will be free from defects in materials and workmanship, provided the speaker was purchased from an Acoustic Landscape authorized dealer. -
Page 15: Return Process
Acoustic Landscape Collection™ Manual Not Covered by Warranty • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Acoustic Landscape or an authorized dealer • Damage caused by improper installation •... - Page 16 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
