Summary of Contents for DITTING KE640 Triple

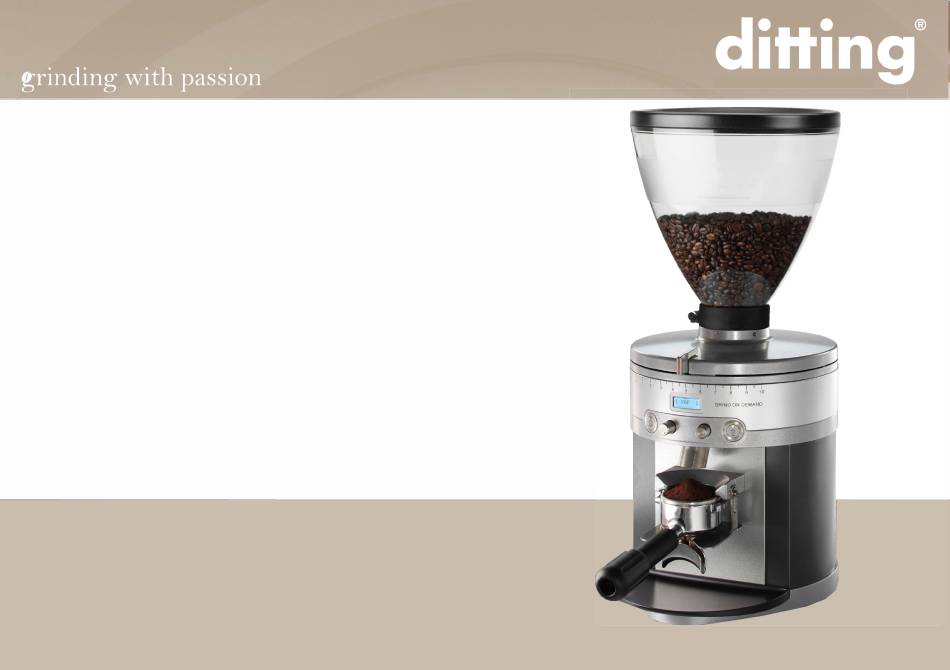

  • Page 1 Instruction manual KE640 Triple Grind-on-Demand...
  • Page 2 Dear customer, with the "KE640 Triple" you have acquired a grinder of the proven Ditting quality. We have developed this product with many years of experience in the manufacture of coffee grinders assuring you of high quality grinding of espresso and other types of coffee beans.
  • Page 3: Table Of Contents

    Content 7. Operating faults Safety 1.1 Symbols 8. Cleaning 1.2 Safety instructions 8.1 Cleaning with GRINDZ™ grinder cleaner 1.3 Usage purpose 8.2 Cleaning the grinder placement surface 1.4 User requirements 8.3 Cleaning the grinder casing 8.4 Cleaning of the hopper Technical Data 9.
  • Page 4: Safety

    1. Safety Always remove the electrical plug from the outlet prior to conducting maintenance or cleaning work on the grinder. Also, prior to removing the hopper, the plug must be removed from the Please carefully read observe electrical outlet. following safety instructions. Failure to do so can result in damage to the grinder and Never operate a grinder with a damaged electrical cord.
  • Page 5: Usage Purpose

    1.3 Usage purpose 2. Technical Data Only whole, unground, roasted, cleaned coffee beans may be ground in the KE640 Triple grinder. Never use the grinder to grind Type KE640 Triple other products or objects. 200-230V / 50/60Hz 1.4 Personnel requirements Voltage/Frequency...
  • Page 6: Description

    3. Description The main components and operating elements are pictured in the illustration. 1 Hopper with lid 2 Lock screw for hopper 3 Grinding fineness adjustment 4 Lock screw for grind adjustment lid 5 Grind adjustment lid 6 Grinding scale 7 Display 8 Pre-selection button "Arrow down"...
  • Page 7: Safety Devices Of The Grinder

    4. Safety Devices of the Grinder 5. Set-up and Basic Adjustment A grinding test run is carried out on each grinder in our factory. Thermal overload circuit breaker This is why you may find ground material residue in the grinding The motor of the grinder is protected by a thermal overload circuit mechanism! breaker, which interrupts the motor’s electric circuit in the event...
  • Page 8: Electrical Installation

    6. Operation plate. Only use the KE640 Triple espresso grinder for whole roasted nsert the plug into the corresponding grounded outlet. coffee beans. See chapter 1.3. 5.4 Adjustment of the port-a-filter rest Observe the safety instructions under 1.2!
  • Page 9: Handling The Grinder

    6.1 Handling the grinder 6.2 Grind adjustment (grinding fineness) Proper operation necessitates the steps described in the Adjust the grinding fineness by pulling the sliding detent out to following: the front and turning the lid / grinding fi neness adjustment. 6.1.1 Actuate the main switch on the rear of the grinder (pos.
  • Page 10: Software Menu

    • 6.3.3 Use the left potentiometer (pos. 9) to adjust the grinding • Chose the dosage quantity/grinding time which should be time. changed, with the buttons (pos. 8+10). • 6.3.4 After the adjustment of any setting. Simultaneously press • By turning the right potentiometer (pos. 11) you can mark the and hold both buttons (pos.
  • Page 11 6.4.4 Cleaning counter The grinder can still be used but the discs Irrespective to the shot counters described above a cleaning should be changed regularly in order to counter is running in the background. After the fixed amount assure best possible grinding quality and of 5,000 single shots the display will show CLEAN interchanging speed.
  • Page 12: Operating Faults

    Defect Cause Remedy 7. Operating faults The grinder does The main plug is Insert the main plug into Defect Cause Remedy not start, the display not inserted. the socket. The grinder hums The spout is grinding fineness is not lit. but does not grind.
  • Page 13: Cleaning

    8. Cleaning • Start the grinder and grind through all GRINDZ™ into your port-a-filter or a seperate bin (several shots needed). You should clean your espresso grinder regularly, just like your espresso machine. Grind-on-demand grinders in particular have • Open the hopper slider. to be kept clean and residue free in order to ensure dosing accuracy for every shot and every customer.
  • Page 14: Cleaning The Grinder Casing

    8.3 Cleaning the grinder casing From time to time clean the outside of the casing and the drip tray (pos. 17) using a damp cloth. 8.4 Cleaning of the hopper The hopper should be cleaned daily with a damp cloth inside and outside in order to remove coffee and oil residues which could negatively influence the taste in the cup.
  • Page 15: Certificate

    2. The warranty covers all damages that can be attributed to Konformitätserklärung inferior materials or defective workmanship. Corresponding Zu der Maschinenrichtlinie 89/392/EWG Ditting Maschinen AG Bramenstrasse 11, CH-8184 Bachenbülach grinders will be repaired or replaced free-of-charge, with the Telefon : +41 44 864 18 00 Telefax : +41 44 864 18 01 exception of transport or freight charges.
  • Page 16 Quick manual K30 3_32_0_160602.xls Quick Manual 3.32.0 Stand 31.05.2016; BP Display Menu Start Press 3sec. MENÜ   0,1-10,0sec set as favorite   Press 0,1-10,0sec set as favorite Setting first (S) shot time *= setting for favorite 2* 4.0 ...
  • Page 17 Counter shots total Y or N Y or N CLEAN oder Y_______ _______N or (back to menu)      Setting Clean counter 5-30kg 5-30kg 25______KG or (back to menu)   200-1500kg 200-1500kg DISC 700___KG   oder ...
  • Page 18 Ditting Maschinen AG Länggenstrasse 34 CH- 8184 Bachenbülach, Switzerland Tel.: +41 44 864 1800 Fax: +41 44 864 1801 info@dittingswiss.ch www.dittingswiss.ch Januar 2016 Änderungen ohne Vorankündigung vorbehalten!
