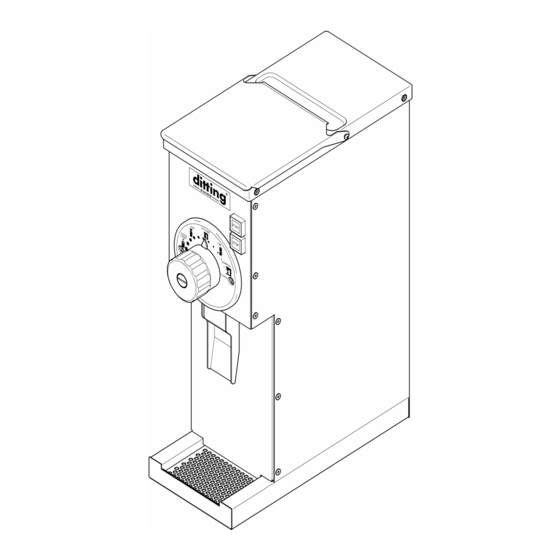

DITTING KS 3 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TYPE
Voltage
Manuf. no.
Your service centre ...............................................
Operating instructions
KS 1 / KS 3
...............................................
...............................................
...............................................
...............................................
64426 A 03/35
page 1 - 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS 3 and is the answer not in the manual?

Questions and answers

Related Manuals for DITTING KS 3

Summary of Contents for DITTING KS 3

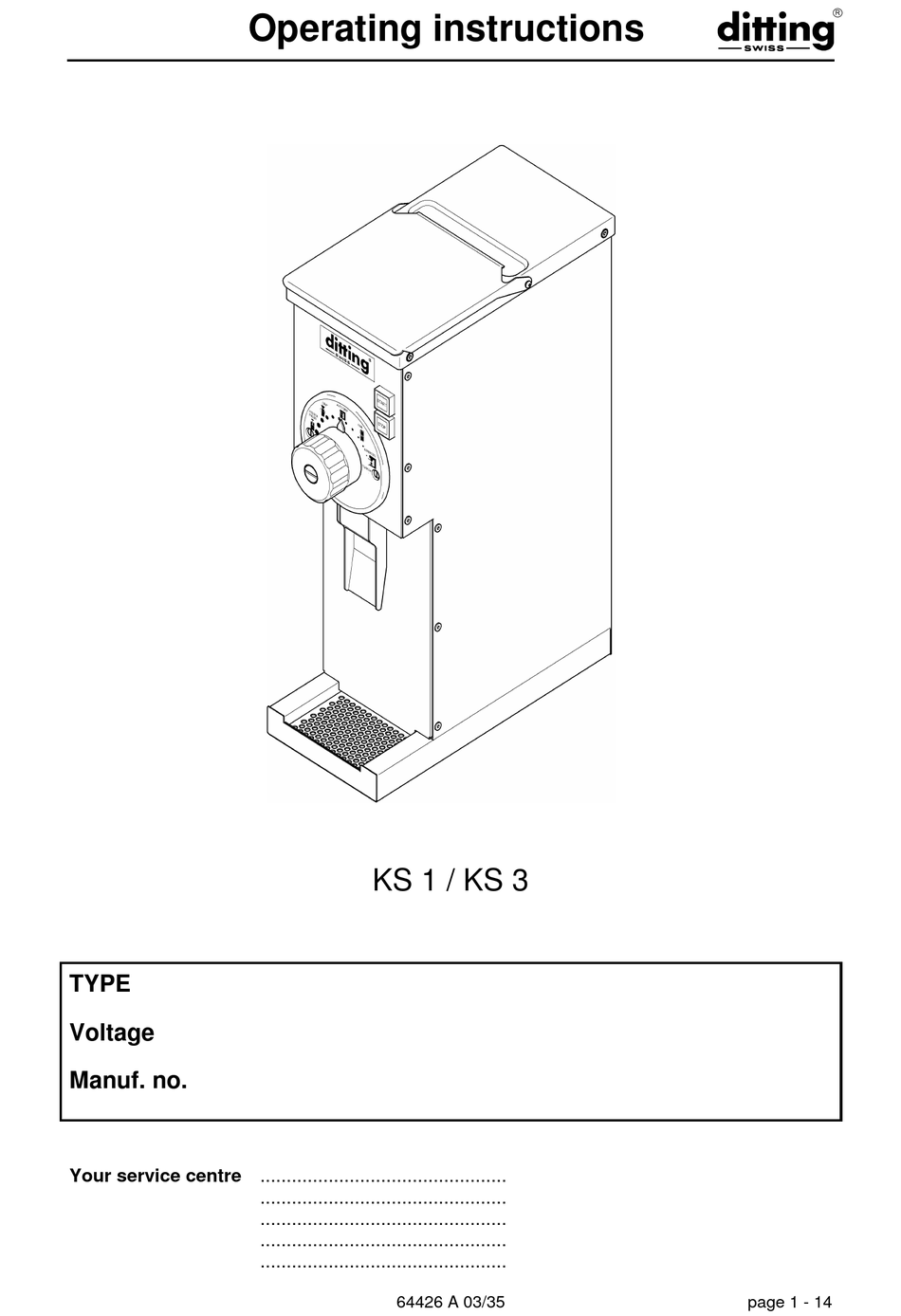

  • Page 1  Operating instructions KS 1 / KS 3 TYPE Voltage Manuf. no. Your service centre ................................................64426 A 03/35 page 1 - 14...

  • Page 2: Table Of Contents

     Operating instructions Contents page General Warranty information Transfer declaration General safety instructions 1.3.1 Information and safety symbols Description and Safety Device Safety devices Setting up and Basic Adjustment Setting up area Initial Set-up Installation Basic Setting Operation Operating controls Care / Maintenance / Adjustment Cleaning of the coffee grinder Maintenance and repair...

  • Page 3: General

     Operating instructions General Dear Customer, We congratulate and thank you for purchasing a quality product. These operating instructions have been prepared to simplify your use of the coffee grinder. They contain information, advice and instructions for the best use of your unit. Warranty information ALTHOUGH YOUR COFFEE GRINDER IS DISTINGUISHED BY A HIGH QUALITY AND SAFETY STANDARD, DAMAGE TO MATERIAL OR RISK OF INJURY CANNOT BE...

  • Page 4: Transfer Declaration

     Operating instructions Transfer declaration To ensure transfer of the operating instructions to final consumers Note: The following declaration should be completed by the dealer and the purchaser. The purchaser undertakes to return this declaration to the dealer. The purchaser thereby certifies that the dealer has drawn his attention to the contents of operating instructions no.

  • Page 5: General Safety Instructions

    • The machine must be placed in the sales areas so that the sales personnel responsible can be reached by the customer without difficulty. • The model KS 1 / KS 3 was developed and built for intermittent duty only and is therefore not suitable for continuous operation. The max. grinding time, without interruption, is 40 minutes.

  • Page 6: Information And Safety Symbols

     Operating instructions 1.3.1 Information and safety symbols Two information symbols are used in these operating instructions to emphasise important comments in the text: Information This symbol indicates information containing important data concerning efficient use. Non-observance can lead to faults. Safety This symbol indicates information which if not observed can lead to danger to persons and/or substantial material damage.

  • Page 7: Setting Up And Basic Adjustment

    "Turkish fine" to "percolator" with an adjusting knob provided with a scale. The KS 1 / KS 3 coffee grinders are suitable for use in small food stores, coffee shops. The simple method of operation enables customers to use the grinder themselves in self-service stores.

  • Page 8: Operating Controls

     Operating instructions Operation Use the KS 1 or KS 3 grinder only in accordance with the instructions listed under 1.3. Never place fingers or objects into the grinding gears! Never exceed the maximum allowable operating time of 40 minutes.

  • Page 9: Care / Maintenance / Adjustment

     Operating instructions Care / maintenance / adjustment Cleaning of coffee grinder The coffee grinder must only be cleaned with a paper towel. If necessary use suitable mild dish washer detergent. Do not use an alkaline cleaning agent. Do not spray coffee grinder with water and/or steam. Reason: 1- It can result in a short-circuit and therefore damage the unit.

  • Page 10: Maintenance And Repair

     Operating instructions Maintenance and Repair Always pull the plug out of the socket before you perform any maintenance or clean the grinder. Always check the grinder regularly for damage, especially damage to the power cord, plug, finger protector etc. Any repairs necessary may only be performed by an authorised specialist.

  • Page 11: Changing The Scale Setting

     Operating instructions 5.4.2 Changing the scale setting (adjustment for customer settings) The purpose of setting the scale on the rotary knob is to ensure that the fineness of the ground coffee matches the fineness setting shown on the scale. The machine is supplied complete with a factory setting and is ready for operation.

  • Page 12: Replacing The Grinding Discs

     Operating instructions Replacing the grinding discs Cleaning the grinding mechanism CAUTION The grinding discs must not be removed until the machine is completely at rest! Before beginning this task, switch off the main switch (if fitted), ensure the machine cannot be switched on by accident and pull out the mains plug from the mains socket.

  • Page 13: Faults / Action

     Operating instructions Faults / action Action in event of a fault When operated by customers, it must be ensured that personnel are notified in the event of a fault and that customers do not try to repair the machine themselves.

  • Page 14: Thermal Protector

    Data such as manufacturing number and type of power supply as specified on the rating/serial no. plate of the coffee grinder should be stated on orders for grinding discs, spare-parts and accessories to ensure rapid and efficient advice and delivery. Ditting Maschinen AG Bramenstrasse 11 CH-8184 Bachenbülach...
