DITTING KE640 2.0 Original Instruction Manual

Single espresso grinder
Hide thumbs Also See for KE640 2.0:

Advertisement

Quick Links

EN
Original instruction manual
Single Espresso Grinder
KE640 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KE640 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for DITTING KE640 2.0

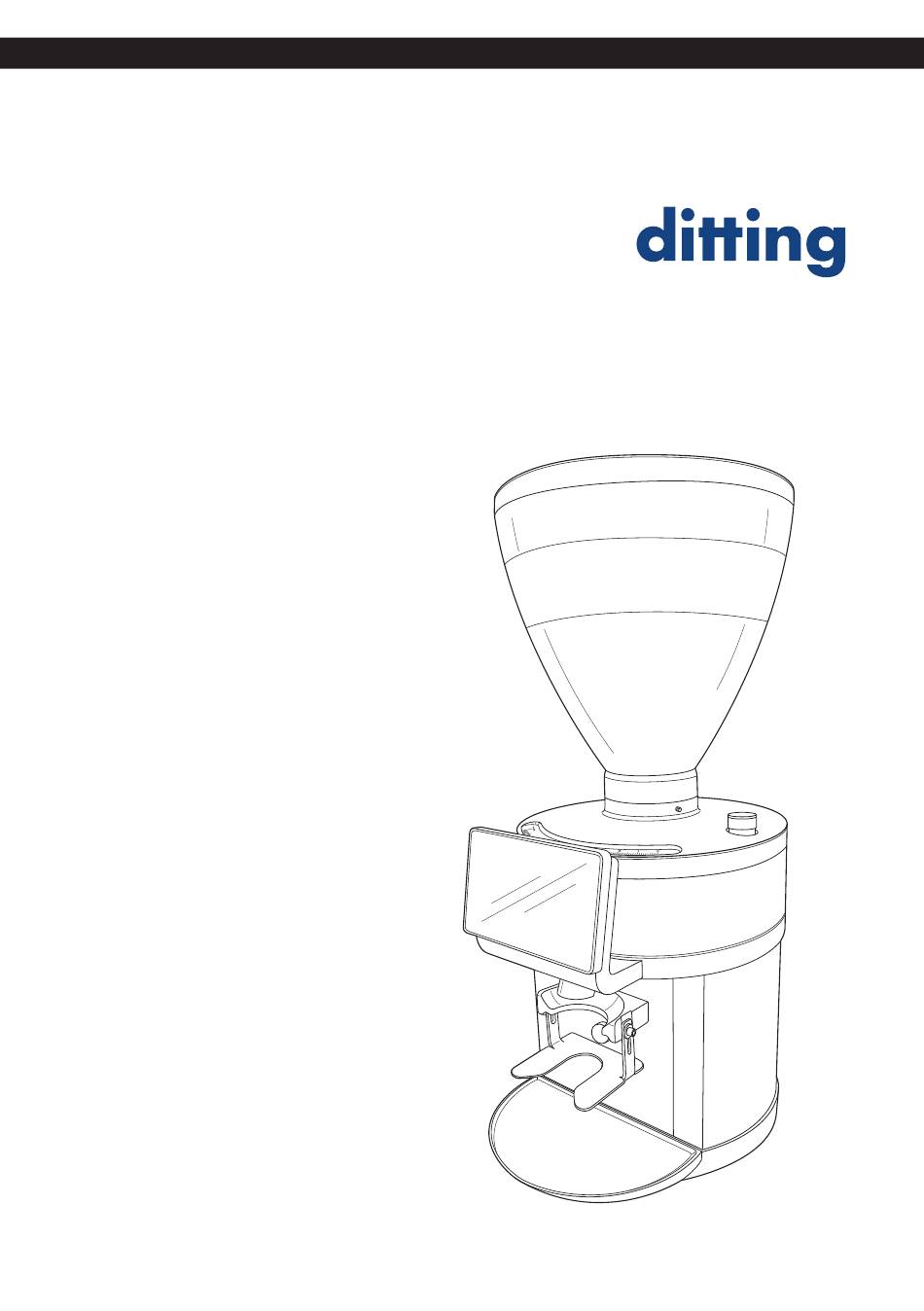

  • Page 1 Original instruction manual Single Espresso Grinder KE640 2.0...
  • Page 2: Overview

    Single eSpreSSo grinder Overview...
  • Page 3 KE640 2.0 | EN...
  • Page 4 Single eSpreSSo grinder...
  • Page 5 KE640 2.0 | EN...
  • Page 6: Table Of Contents

    Single eSpreSSo grinder KE640 2.0 Contents Changing settings ....21 Overview ......2 Display/navigation symbols ..21 Scope of delivery ....7 retrieving and leaving General information .... 8 main menu ........22 Read operating instructions Unlocking service menu ..... 22 and keep safe ........
  • Page 7: Scope Of Delivery

    KE640 2.0 | EN Scope of delivery Name Bean container (incl. lid) Locking screw for the bean container Bean container intake Locking screw for adjusting the grinding degree Adjusting the degree of grinding Screw for adjusting the portafilter support (left and right) Portafilter support Feet, 4×...
  • Page 8: General Information

    European Union. Please also note the guidelines and laws of your specific country if abroad. For better clarity, the Single Espresso Grinder KE640 2.0 shall be referred to hereinafter simply as the “grinder”. Please keep this original instruction manual safe for later queries.
  • Page 9 KE640 2.0 | EN This symbol provides you with important information concerning operation or handling. Conformity declaration (see chapter “Conformity declaration”): Products marked with this symbol fulfill all applicable community provisions of the European Economic Area. ETL Listed seal of approval: Products marked with this symbol meet the requirements for electrical product safety of the United States of America.
  • Page 10: Safety

    Single eSpreSSo grinder Safety Intended use The grinder is only suitable for grinding whole roasted espresso beans. Do not use the grinder to grind other products or objects. It is intended for commercial use and may only be serviced by trained personnel. It may, however, be operated by other persons in a place where use is supervised.
  • Page 11 KE640 2.0 | EN – Do not immerse the grinder or the power cable / power plug in water or any other liquids. – Do not clean the grinder with a water jet. – Do not clean the grinder with compressed air (e.g.
  • Page 12 Single eSpreSSo grinder WARNING! Danger for children and persons with reduced physical, sensory and mental abilities (e.g. partially disabled persons, older persons with limited physical and mental abilities) or a lack of experience and knowledge (e.g. older children). – This grinder may be used by children older than eight years and by persons with reduced physical, sensory or mental disabilities or a lack of experience and knowledge if they are supervised or instructed on the safe use of the grinder and have understood...
  • Page 13: Before Using

    Functioning and basic settings The shot sizes, i.e. the volume of grounds per withdrawal, are defined by the grinding time on the KE640 2.0 grinder. The user can specify up to six different recipes (grinding times / recipe mode) for each of the grinders and also has the possibility of controlling the grinding time manually (manual grinding).
  • Page 14: Setting Up The Grinder And Inserting The Bean Container

    Single eSpreSSo grinder Setting up the grinder and inserting the bean container INFORMATION! Risk of damage! Improper use can lead to damage to the bean container. – Make sure during installation to position the bean container in such a way that the locking screw for the bean container reaches into the appropriate recess of the bean container when screwing in.
  • Page 15: Setting Up The Portafilter Support

    KE640 2.0 | EN 6. Seal the bean container by swiveling in the sliding valve (16) (see Fig. D). 7. Place the drip tray (10) into the corresponding opening under the outlet (13). 8. Make sure that the grinder is switched off (On/Off switch (19) to “0”) and connect the grinder to the power supply by inserting the power plug (18) into a properly installed safety socket.
  • Page 16: Operation

    Single eSpreSSo grinder Operation INFORMATION! Danger of overheating! Exceeding the maximum permissible operating cycle can cause the grinder to overheat. – Do not exceed the maximum operating cycle (see chapter “Technical data”). – Observe the recommended pause when the maximum permis- sible operating cycle is reached (see chapter Technical data “...
  • Page 17: Adding Espresso Beans

    KE640 2.0 | EN Adding espresso beans 1. Remove the lid from the bean container (1). 2. Pour whole roasted espresso beans into the bean container from above. • The maximum filling quantity should be approx. 1 cm below the edge of the bean container.
  • Page 18: Setting The Grinding Degree

    Single eSpreSSo grinder Setting grinding degree • The tightened locking screw for adjusting the grinding degree prevents any unwanted adjustment of the grinding degree. • The grinding degree can be set continuously when the grind- ing degree adjustor is unlocked. •...
  • Page 19: Grinding Espresso Beans

    KE640 2.0 | EN 3. Set the desired grinding time by swiping up/down over the appropriate areas on the time display. 4. Click on the symbol to confirm the set grinding time or click on the symbol to cancel the process without making any changes.
  • Page 20: Pausing Grinding (Stop Function)

    Single eSpreSSo grinder Pausing grinding (stop function) The stop function automatically suspends grinding when you remove the portafilter from the portafilter intake (12) and continues grinding when you insert the portafilter into the portafilter intake again and trigger the start button (11).
  • Page 21: Changing Settings

    KE640 2.0 | EN Changing settings You can retrieve appliance data and change the settings in the main menu. If you take longer than 3 minutes to make or confirm a selection in the main menu or in a sub-menu, you will automatically be taken back to the home screen.
  • Page 22: Retrieving And Leaving Main Menu

    Single eSpreSSo grinder Retrieving and leaving main menu – symbol on the display (14) to go to the main menu. Click on the – Click on the symbol on the display to go back one level in the main menu. –...
  • Page 23: Editing Recipe Number

    KE640 2.0 | EN Editing recipe number You will find the menu item “Editing recipes” in both the main menu and the service menu. 1. Go to the main menu or the service menu (see chapter “Retrieving and leaving main menu” / “Retrieving service menu”).
  • Page 24: Setting The Date And Time

    Single eSpreSSo grinder 8. Set the desired grinding time by swiping up/down over the appropriate areas on the time display. 9. Click on the symbol to confirm your entry and to finish editing the recipe details. Setting the date and time 1.
  • Page 25 KE640 2.0 | EN Restoring factory settings You will find the menu item “Delivery state” in both the main menu and the service menu if it has been unlocked. 1. Go to the main menu or the service menu (see chapter “Retrieving and leaving main menu”...
  • Page 26 Single eSpreSSo grinder Changing supervisor PIN 1. Go to the service menu (see chapter “Retrieving service menu”). 2. Swipe up/down on the display (14) and select the menu item “Change supervisor PIN”. 3. Enter the desired PIN using the text block. 4.
  • Page 27: Retrieving Counts And Logs

    KE640 2.0 | EN 4. Follow the instructions on the display to import/export data or click on symbol to cancel the process. Retrieving counts and logs 1. Go to the main menu (see chapter “Retrieving and leaving main menu”). 2. Swipe up/down on the display (14) and select the desired menu item: •...
  • Page 28: Cleaning

    Single eSpreSSo grinder Cleaning CAUTION! Risk of injury! The grinder can fall over when moved and cause injury. – Place the grinder on a stable, tilt-proof surface. – Ask another person for help if the grinder is too heavy. INFORMATION! Risk of short-circuit! Water penetrating the grinder can cause a short-circuit.
  • Page 29: Cleaning The Grinder Installation Surface

    KE640 2.0 | EN Cleaning the grinder installation surface 1. Switch off the grinder (On/Off switch (19) to “0”) and remove the power plug (18) from the socket. 2. Lift the grinder by the casing with both hands and place onto a clean surface.
  • Page 30: Cleaning The Grinder

    Single eSpreSSo grinder Cleaning the grinder • The manufacturer recommends using the grinder cleaner grindZ . For more information about GRINDZ visit www.dittingswiss.ch. • The grinder should be cleaned every 2–5 days. 1. Close the bean container (1) by swiveling in the sliding valve (16) (see Fig.
  • Page 31: Troubleshooting

    KE640 2.0 | EN Troubleshooting Error Cause Remedy The grinder is • The outlet is t Set the grinding degree adjustor humming but clogged. to “10” and trigger the grinding not grinding. process. The grinder will grind itself clear. Then set the desired grinding degree during operation.
  • Page 32 Single eSpreSSo grinder Error Cause Remedy The grinder is • The power plug t Insert the mains plug into a properly not grinding, is not plugged installed wall socket. the display is into a socket. not lit up. • The thermal t Check whether the overcurrent overcurrent circuit-breaker’s release button...
  • Page 33 KE640 2.0 | EN Error Cause Remedy The grinder • The start but- t Contact your supplier (see chapter does not grind ton is faulty. “Maintenance and service”). continuously or the grinding process stops intermittently. The grinder’s • The outlet is...
  • Page 34: Technical Data

    Single eSpreSSo grinder Technical data Model: KE640 2.0 Voltage / frequency: 100–127 V; 50/60 Hz 200–230 V; 50/60 Hz 220–240 V; 50/60 Hz Protection type: ipX1 Protection class: Fuse: 16 A-slow Idle speed: 50 Hz 1420 rpm 60 Hz 1640 rpm...
  • Page 35: Disposal

    Maintenance and service In the event of service or maintenance, contact an Authorized Service Center for Ditting products. Customer Service can answer your questions about repairing and maintaining your product and spare parts. Exploded diagrams and information on spare parts are also available at: www.dittingswiss.ch...
  • Page 36: Ce Conformity Declaration

    Hereby declares that the below mentioned product: Product: Device for food processing Machine model: Coffee grinder Type of machine: KE640 2.0 Following directives, regulations and standards have been applied: 2006/42/EG The provisions of the Machinery Directive 2014/35/EU The Low Voltage Directive...
  • Page 37: Notes

    KE640 2.0 | EN Notes...
  • Page 38 Single eSpreSSo grinder...
  • Page 39 KE640 2.0 | EN...
  • Page 40 HEMRO International AG +41 44 864 18 00 info@hemrogroup.com Länggenstrasse 34 CH 8184 Bachenbülach Switzerland...
