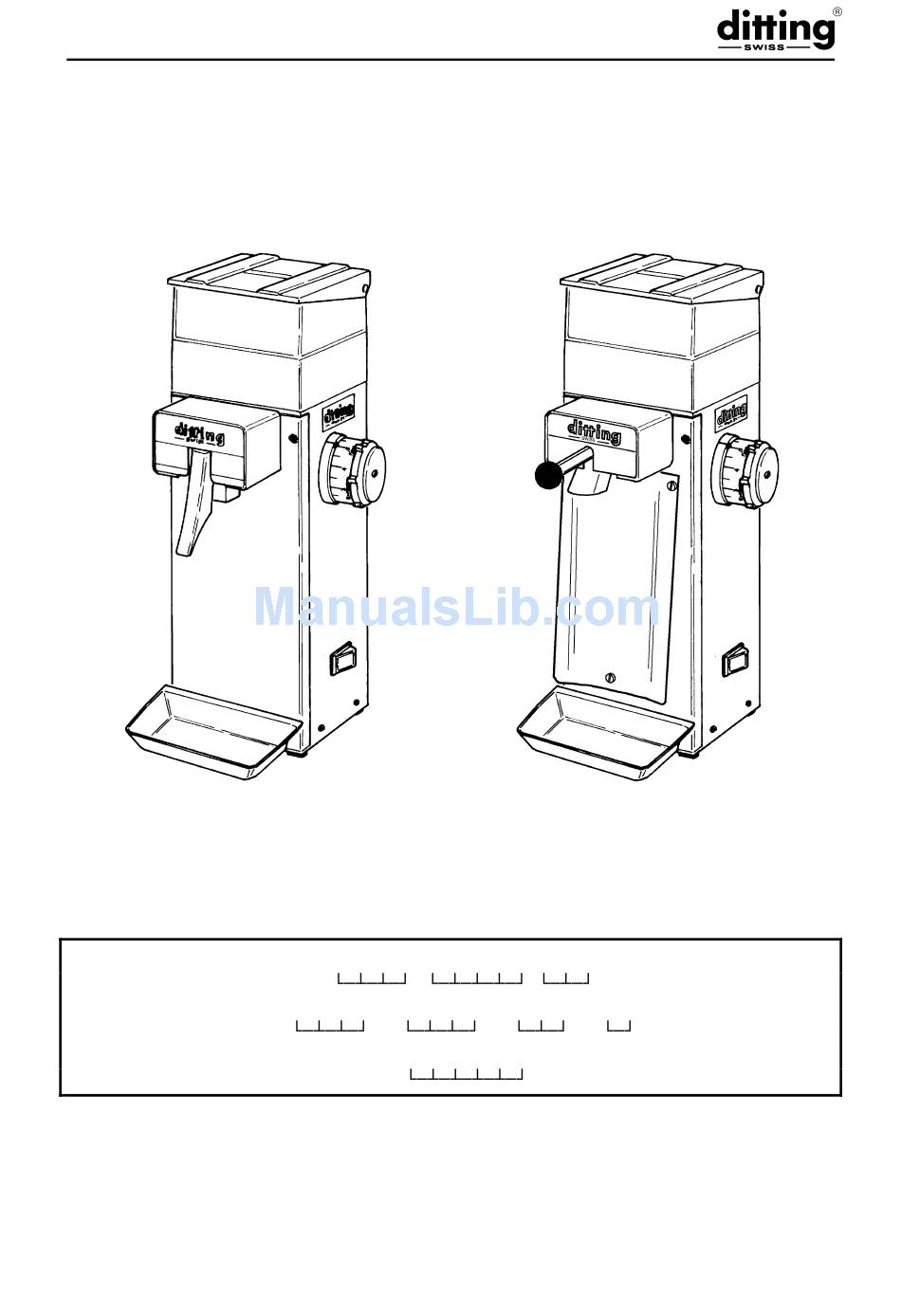

  • Page 1 Operating instructions KF 804 KR 804 TYPE Voltage Manuf. no. Your service centre ................................................64420 A 98/16 page 1 - 17...

  • Page 2: Table Of Contents

    Operating instructions Contents page General Warranty information Transfer declaration General safety instructions 1.3.1 Information and safety symbols Installation of coffee grinder Description and installation of unit How to use the coffee grinder Care / Maintenance / Adjustment Care and cleaning of the coffee grinder Maintenance Setting the scale (adjustment) 3.3.1...

  • Page 3: General

    General Dear Customer, We congratulate and thank you for purchasing a DITTING quality product. These operating instructions have been prepared to simplify your use of the coffee grinder. They contain information, advice and instructions for the best use of your unit.

  • Page 4: Transfer Declaration

    Operating instructions Transfer declaration To ensure transfer of the operating instructions to final consumers Note: The following declaration should be completed by the dealer and the purchaser. The purchaser undertakes to return this declaration to the dealer. The purchaser thereby certifies that the dealer has drawn his attention to the contents of operating instructions no.

  • Page 5: General Safety Instructions

    • Only original grinding discs sharpened by DITTING must be used. • Never reach into the hopper opening while the machine is running. • Never touch electrical components with conducting objects, such as needles, pins, cutlery, etc.

  • Page 6: Information And Safety Symbols

    Operating instructions Information and safety symbols Two information symbols are used in these operating instructions to emphasise important comments in the text: Information This symbol indicates information containing important data concerning efficient use. Non-observance can lead to faults. Safety This symbol indicates information which if not observed can lead to danger to persons and/or substantial material damage.

  • Page 7: How To Use The Coffee Grinder

    Operating instructions How to use the coffee grinder Set the required grinding fineness on the scale with adjusting knob (1). Open the filling cover (2) and place coffee beans in hopper (3). Clamp empty paper bag over discharge tube (5) with bag holding lever (4) and release bag.

  • Page 8: Care / Maintenance / Adjustment

    Operating instructions Care / maintenance / adjustment Care and cleaning of coffee grinder The coffee grinder must only be cleaned with a paper towel. If necessary use suitable mild dish washer detergent. Do not use an alkaline cleaning agent. Do not spray coffee grinder with water and/or steam. Reason: 1- It can result in a short-circuit and therefore damage the unit.
  • Page 9 Operating instructions The grinding discs and grinding chamber should be cleaned at least once a week. UNPLUG THE COFFEE GRINDER Dismantle hopper according to 4.2.2 Use a paper towel and/or a brush to clear the hopper and built-in magnet from any coffee particles.

  • Page 10: Maintenance

    Operating instructions Place the spring over the gear cone, followed by the Aluminum backing plat and screw. Turn the screw only 3 full turn ( you will tighten the after calibration of step 3.3.1). Clean the mating surfaces free from dirt and coffee, and install the top stationary disc and install and tighten the screws Install the hopper.

  • Page 11: Basic Setting (Calibration)

    Operating instructions 3.3.1 Basic setting (calibration) If the basic setting is incorrect, friction can occur between the grinding discs, resulting in excessive wear. Switch on motor. Unscrew screw (1) at centre of adjusting knob (2) approx. 3 - 5 mm, do not remove. Pull out (3) adjusting knob (2) and turn 1/4 of a revolution anti-clockwise (4).

  • Page 12: Changing The Scale Setting (Customer Setting)

    Operating instructions 3.3.2 Changing the scale setting (adjustment for customer settings) Switch off motor. Unscrew screw (1) at centre of adjusting knob (2) approx. 3 - 5 mm, do not remove. Set required number of divisions by pulling out adjusting knob (2), turning in the corresponding direction and re-engaging.

  • Page 13: Replacing The Grinding Discs

    Operating instructions Replacing the grinding discs Before changing grinding discs switch off motor without fail and disconnect power cable ! The grinding discs must only be replaced by persons familiar with operation of the machine according to the following instructions. Switch off motor and pull out power cable.

  • Page 14: Faults / Action

    Operating instructions Plug in power cable, switch on coffee grinder briefly. If it blocks or there is a sound of metal parts rubbing together, the scale setting must be adjusted according to 3.3.2. Retighten screws (6) of the stationary disc flange.

  • Page 15: Repairs

    Operating instructions Repairs Switch off motor and pull out power cable before all major repairs requiring work inside the machine, in order to avoid danger of injury while working on motor while running and electric shock ! The electrical wiring diagram for this unit can be found inside the front panel. 4.2.1 Unblocking the discharge tube Switch off motor and pull out power cable.

  • Page 16: Replacing The Rubber Bolt

    Operating instructions Remove foreign bodies. Check grinding discs, rotating and stationary disc flange, etc. for damage. All supporting surfaces of stationary disc flange, rotating disc flange, grinding discs and grinding case must be absolutely clean before assembly. Only in this way can perfect grinding be guaranteed. Then re-assemble parts...

  • Page 17: Customer Service

    Data such as manufacturing number and type of power supply as specified on the nameplate of the coffee grinder should be stated on orders for grinding discs, spare-parts and accessories to ensure rapid and efficient advice and delivery. DITTING MASCHINEN LTD. Bramenstrasse 11 P.O. Box 241 CH-8184 Bachenbülach...

This manual is also suitable for:
