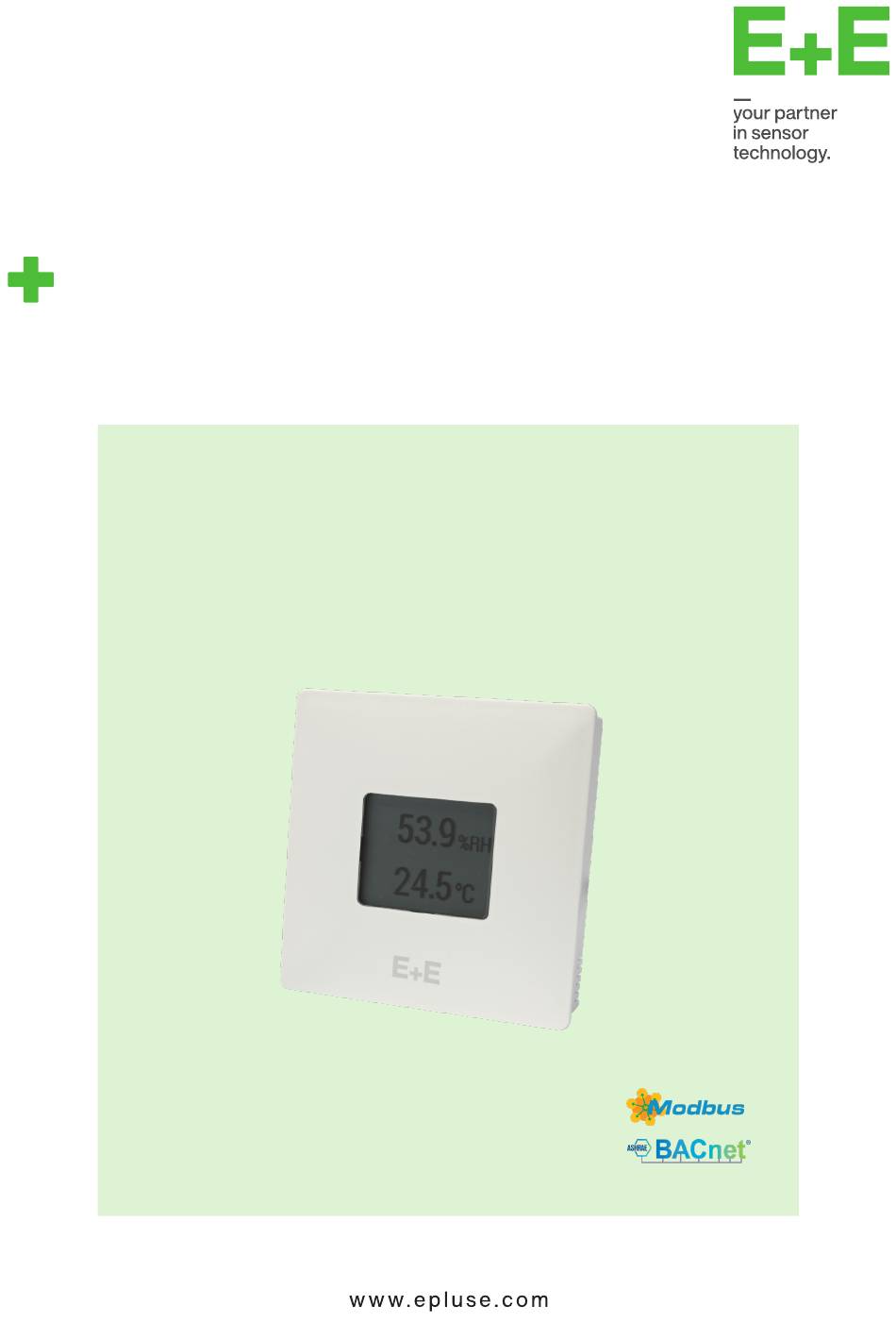

- Page 1 User Manual HTS201 Humidity and Temperature Room Sensor...
-
Page 2: Table Of Contents
User Manual HTS201 Content General Information ............................3 Explanation of Warning Notices and Symbols ..................3 Safety Instructions ..........................4 1.2.1. General Safety Instructions ......................... 4 1.2.2. Intended Use ............................... 4 1.2.3. Mounting, Start-up and Operation ........................ 4 Environmental Aspects.......................... 5 ESD Protection ............................ -
Page 3: General Information
The user manual may not be used for the purposes of competition without the written consent of E+E Elektronik Ges.m.b.H. and may not be forwarded to third parties. Copies may be made for internal purposes. All information, technical data and diagrams included in these instructions are based on the information available at the time of writing. -
Page 4: Safety Instructions
Failing to follow the instructions in this user manual may lead to measurement inaccuracy and device failures. ▪ The HTS201 may only be operated under the conditions described in this user manual and within the specification included in chapter 8 Technical Data. ▪... -
Page 5: Environmental Aspects
Environmental Aspects PLEASE NOTE Products from E+E Elektronik Ges.m.b.H. are developed and manufactured in compliance with all relevant environmental protection requirements. Please observe local regulations for the disposal of the device. For disposal, the individual components of the device must be separated according to local recycling regulations. -
Page 6: Product Description
3.2 Dimensions. The electronics of HTS201 is located in the front cover, which can be easily snapped on/off once the back cover is fixed onto the wall and wired. The back cover contains just the push-in terminals. No tools are needed for mounting or changing the active part. -
Page 7: Dimensions
Electrical Connection 0.20 30 / 1.18 For connecting the power supply and the outputs, the HTS201 features push-in spring terminals for max. 1.5 mm (AWG 16). The cables are fed into the enclosure via the rear side. WARNING Incorrect installation, wiring or power supply may cause overheating and therefore personal injuries or damage to property. -
Page 8: Display
User Manual HTS201 15 - 35 V DC 24 V AC ±20 % HTS201 current output Connection scheme put: 0-5 V 0-10 V 15 - 35 V DC 15 - 35 V DC tput: 4-20 mA Connection on the electronics board... -
Page 9: Mounting And Installation
User Manual HTS201 4 Mounting and Installation As the room sensor is generally mounted onto a conduit box, for accurate measurement results it is important to tighten the conduit box for avoiding false air ingress (along the electrical tubes inside the wall) into the room sensor enclosure. -
Page 10: Setup And Configuration
30 (1.2) 5 Setup and Configuration The HTS201 is ready to use and does not require any configuration by the user. The factory setup of HTS201 corresponds to the type number ordered. Please refer to the datasheet at www.epluse.com/hts201. While the room sensors with analogue output do not provide a configuration interface, the digital versions offer some options for customization. -
Page 11: Rs485 Digital Interface
User Manual HTS201 NOTICE The HTS201 may not be connected to any additional power supply when using the USB configuration adapter HA011066. HA011066 Fig. 1 HTS201 connected to a PC running PCS10 RS485 Digital Interface 5.2.1. Hardware Bus Termination E+E room sensors with digital interface feature an internal 120 Ω resistor for bus termination HTS201 which can be activated using the jumper on the electronics board (see also chapter 3.3 Electrical Connection for details). -
Page 12: Bacnet Protocol Settings
Tab. 2 BACnet protocol settings PLEASE NOTE The recommended settings for multiple devices in a BACnet MS/TP network are 38 400, 8, none, 1. The HTS201 PICS (Product Implementation Conformance Statement) is available on the E+E website at www.epluse.com/hts201. BACnet address and baud rate can be set via: ▪ PCS10 Product Configuration Software and the USB configuration adapter HA011066. -
Page 13: Modbus Register Map
4074 0xFE9 1) The choice of measurement units (metric or non-metric) must be done according to the ordering guide, see HTS201 datasheet. Switching from metric to non-metric or vice versa by using the PCS10 is not possible. 2) Register number starts from 1 3) Register address starts from 0 4) Examples: For scale 100, the reading of 2550 means a value of 25.5. -
Page 14: Freely Configurable Custom Modbus Map
User Manual HTS201 5.2.6. Freely Configurable Custom Modbus Map It is possible to map measured value/status registers arbitrarily in a block with up to 20 registers provided for this purpose. This means that registers of interest may be mapped in an area with consecutive registers, so that important values can be queried with a single command in one block. -
Page 15: Device Status Indication And Error Monitoring
Device Status Indication and Error Monitoring ModBus The HTS201 features a status register which contains all status and error information. It is possible to read it from Modbus register 602 (0x259). If a critical error occurs, all Modbus values are set to NaN (according to IEEE754 for data type FLOAT32) or to 0x8000 (INT16). -
Page 16: Modbus Rtu Examples
Please refer to ▪ MODBUS APPLICATION PROTOCOL SPECIFICATION V1.1b3, chapter 6: www.modbus.org/docs/Modbus_Application_Protocol_V1_1b3.pdf ▪ E+E Application Note Modbus AN0103 (available at www.epluse.com/hts201) Read the temperature (FLOAT32) T = 23.4400005340576171875 °C from register address 0x3EA: Master (e.g. PLC) HTS201 Request [Hex]: Modbus... - Page 17 User Manual HTS201 Mapping a simple custom Modbus map assign RH [%] (address 0x3FC) and T [°C] (address 0x3EA) to the map, starting address 0xBB8: Master (e.g. PLC) HTS201 Request [Hex]: Modbus Function Starting Starting Qty. of Qty. of Byte...
-
Page 18: Maintenance And Service
6.2.2. Error Messages in PCS10 The PCS10 information section includes error messages from HTS201, if there are any errors present. The following table shows the error codes and their meaning. Please note that this table directly corresponds to Tab. 7 Device status indication register in chapter 5.2.7. -
Page 19: Technical Data
4 - 20 mA (2-wire) < (V+ - 10) / 0.02 < 500 Ω = load resistance Digital Digital interface RS485 (HTS201 = 1 unit load) Protocol Modbus RTU Factory settings Baud rate according to ordering guide, 8 data bits, parity even, 1 stop bit, Modbus address 45 Supported Baud rates 9 600, 19 200 and 38 400... - Page 20 As designated laboratory (NMI) responsible for maintaining the National Standard for humidity and temperature in Austria, E+E Elektronik represents the highest instance in humidity and temperature calibration. Humidity and Temperature Room Sensor | 20...
-
Page 21: Conformity
User Manual HTS201 9 Conformity Declarations of Conformity E+E Elektronik Ges.m.b.H. hereby declares that the product complies with the respective regulations listed below: European directives and standards. UK statutory instruments and designated standards. Please refer to the product page at www.epluse.com/hts201... - Page 22 E+E Elektronik Italia S.R.L. T +39 02 2707 86 36 info.it@epluse.com E+E Elektronik Korea Ltd. T +82 31 732 6050 info.kr@epluse.com E+E Elektronik Corporation T +1 847 490 0520 info.us@epluse.com Version v1.0 | 10-2023 © Copyright E+E Elektronik Ges.m.b.H. | Modification rights reserved.
