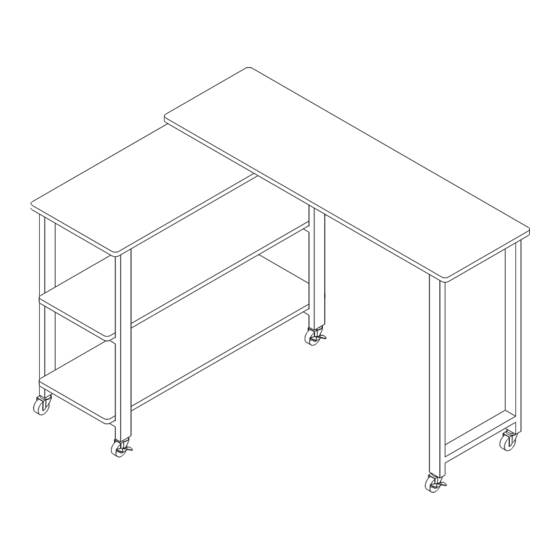

Swivel Out Sofa Table with Wheels
Instruction Manual
SKU: CART-ST1B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-st1b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo CART-ST1B
Summary of Contents for Vivo CART-ST1B
- Page 1 Swivel Out Sofa Table with Wheels Instruction Manual SKU: CART-ST1B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-st1b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
-
Page 3: Package Contents
PACKAGE CONTENTS A (x2) B (x1) C (x6) Frame Side Leg Crossbar D (x1) E (x2) F (x1) Top Shelf Lower Shelf Desktop G (x1) H (x6) Swivel Bracket Casters S-A (x27 ) S-B (x13) S-C (x9) S-D (x9) M6x30mm Screws M6x55mm Screw M6x10mm Screws ST3.5x14mm Screw... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Install Casters (H) onto the underside of Frames (A) and Side Leg (B). Each piece should get one Non-Locking Caster and one Locking Caster. Secure in place using Wrench (T-B). Non-Locking Caster Locking Caster... - Page 5 STEP 2 Connect the Frame (A) pieces together with the Crossbars (C) using M6x55mm Screws (S-B) and 6mm Allen Wrench (T-A). For ease of installation and stability, it is recommended to install the two crossbars on the lower part of Frame pieces first.
- Page 6 STEP 3 Install Lower Shelves (E) onto lower sets of Crossbars (C) and the Top Shelf (D) to the top Crossbar (C) using M6x30mm Screws (S-A). PLEASE NOTE: Top Shelf needs to installed with circular threaded hole pattern on top. D (x1) Take note of threaded Top Shelf...
- Page 7 STEP 4 Turn Swivel Bracket (G) so that the holes on Lower Plate (G1) are visable. Secure Lower Plate into the threaded circular pattern on Top Shelf (4) using the M6x10mm Screws (S-C) and 6mm Allen Wrench (T-A).
- Page 8 STEP 5 Install Side Leg (B) to Desktop (F) using M6x30mm Screws (S-A) and 6mm Allen Wrench (T-A). Use the ST3.5x14mm Screws (S-D) to further secure Side Leg (B) to Desktop (F).
- Page 9 STEP 6 Set assembled Side Leg (B) and Desktop (F) upright. Line up the mounting holes with the Upper Plate (G2) on Swivel Bracket (G). Make sure that the Upper Plate is oriented so that the through holes the Top Shelf (D) align with the mounting holes. Pass M6x10mm (S-C) through the holes in the Top Shelf (D) and fasten the Desktop (F) to Upper Plate (G2) using Phillips Screwdriver (T-C).
- Page 10 STEP 7 Press the lever on the Locking Casters on the desired stationary side, then rotate the remaining side to use the desk.
- Page 11 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 12 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
