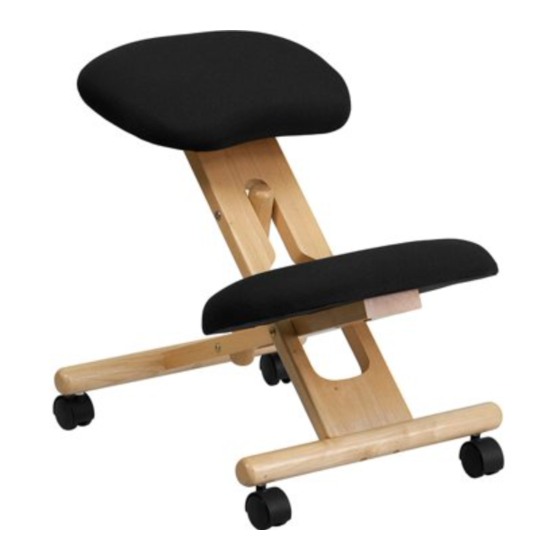

Wooden Kneeling Chair with Wheels
Instruction Manual
SKU: CHAIR-K03D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/chair-k03d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo CHAIR-K03D
Summary of Contents for Vivo CHAIR-K03D
- Page 1 Wooden Kneeling Chair with Wheels Instruction Manual SKU: CHAIR-K03D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/chair-k03d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Insert Lower Frame (A) into Upper Frame (B). Assemble frames using the Long Sleeve Nut (S-D) with M6x12 Screws (S-A) and tighten using 5mm Allen Wrenches (T-A).
- Page 4 STEP 2 Assemble Adjustable Support (C) to rear of Upper Frame (B) using Long Sleeve Nut (S-D) with M6x12 Screws (S-A) and tighten using 5mm Allen Wrenches (T-A). STEP 3 Connect Adjustable Support (C) to rear of Lower Frame (A) using Short Sleeve Nut (S-E) with M6x12 Screws (S-A) and tighten with 5mm Allen Wrenches (T-A).
- Page 5 STEP 4 Assemble Seat Pad (D) to rear of Upper Frame (B) using M6x40 Screws (S-C) and tighten with 5mm Allen Wrench (T-A). STEP 5 Assemble Knee Pad (E) to front of Lower Frame (A) using M6x35mm Screws (S-B) and tighten with 5mm Allen Wrench (T-A).
- Page 6 STEP 6 Thread Casters (F) into holes on underside of the frames using Hex Wrench (T-B).
- Page 7 STEP 7 Adjust seat height and angle by turning the knob on the Adjustable Support (C).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
