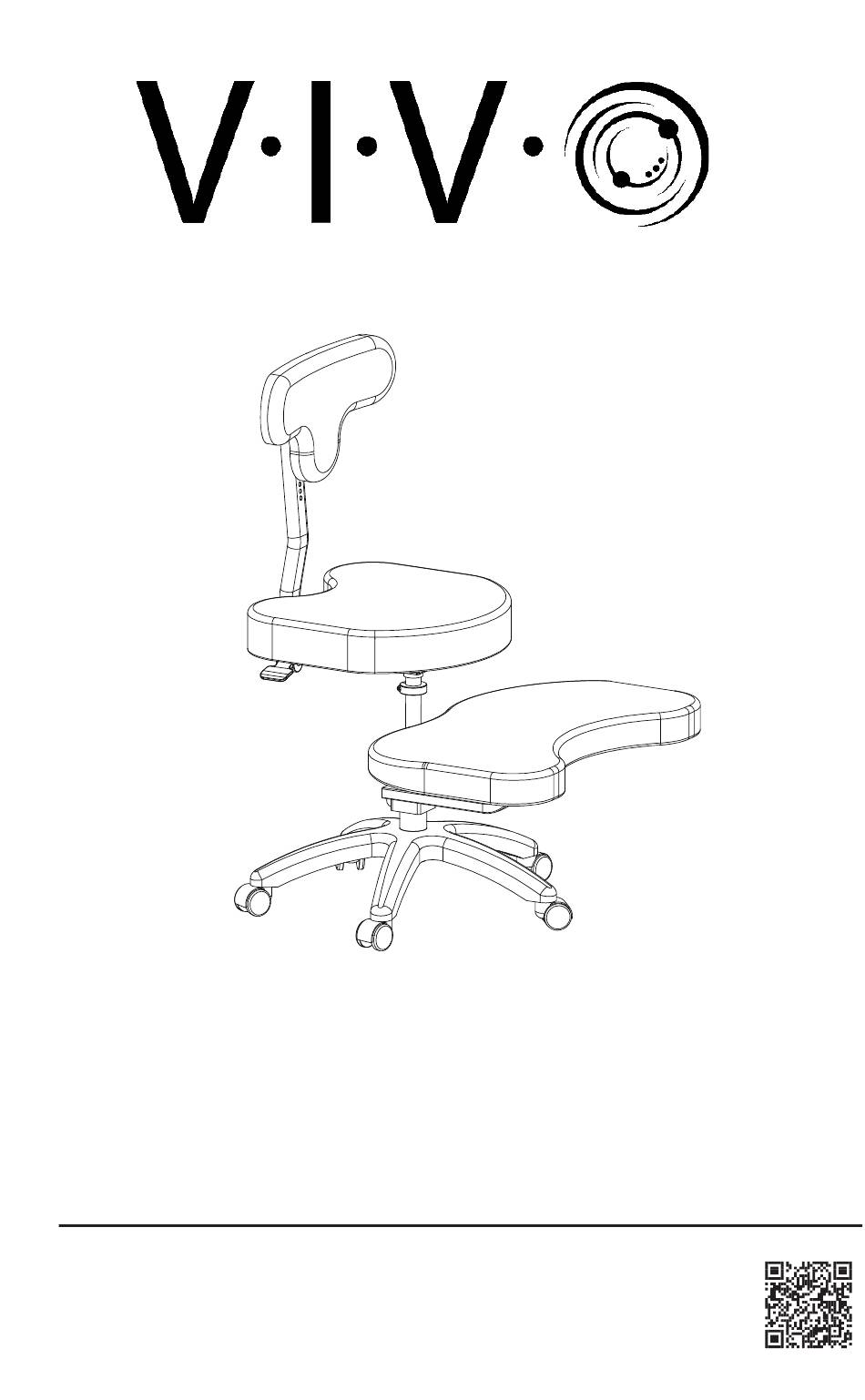

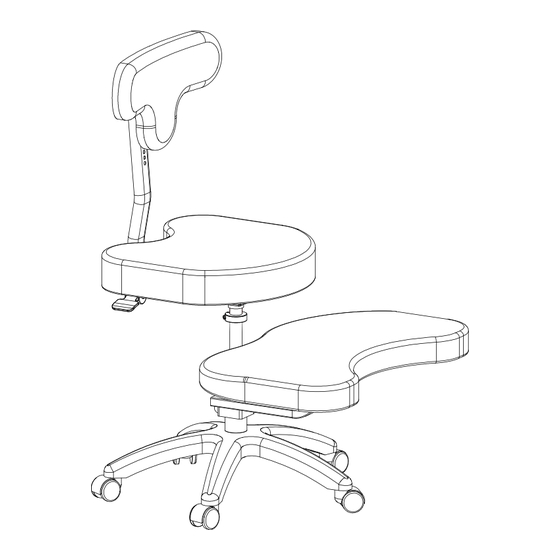

- Page 1 Cross Legged Chair with Wheels SKU: CHAIR-CL02B-R Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/chair-cl02b-r...
- Page 2 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents D (x1 ) B (x1) A (x1) C (x1 ) E (x1) Adjustment Gas Spring Lower Support Base Back Rest Screw Support F (x1) G (x1) H (x1) I (x1) J (x5) Back Rest Pad Seat Pad Foot Pad Back Rest Casters Bracket...
- Page 5 ASSEMBLY STEPS STEP 1 Connect Casters (J) to underside of Base (A). STEP 2 Secure the Foot Pad (H) to the Lower Support (C) using the M6x20mm Screws (S-A) and 5mm Allen Wrench (T-A).
- Page 6 STEP 3 Slide the Gas Spring (B) through the Lower Support (C). Secure using the M8x22mm Screws (S-C) and 5mm Allen Wrench (T-A). (Upside-down orientation of assembly shown) Flip the lower chair assembly rightside-up and insert into Base (A).
- Page 7 STEP 4 Slide the Back Rest Support (E) into the bracket on the underside of the Seat Pad (G). Choose one of the available mounting positions and secure the Back Rest Support (E) using the M8x30mm Screws (S-D) and 5mm Allen Wrench (T-A). The hole set closer to the middle of the Seat Pad (G) will position the Back Rest (installed in later step) further up, and the rear-set hole position will set it further back.
- Page 8 STEP 5 Place upper chair assembly on Gas Spring (B). If you find that the Seat (G) lowers too far down, you can adjust the Minimum Height, restricting how far down the Seat can lower. then you may want to set a minimum height. Use the 4mm Allen Wrench (T-B) to loosen the Adjustment Screw on the Collar and slide it down to the desired position to minimum height setting.
- Page 9 STEP 6 Attach Back Rest Bracket (I) to Back Rest Pad (F) using M6x16mm Screws (S-B) and 5mm Allen Wrench (T-A). Choose your preferred height on Back Rest Support (E) and secure assembled back rest using Adjustment Screw (D).
- Page 10 STEP 7 Adjust the height of the seat by pulling the handle below the Seat Pad (G). The Foot Pad’s Lower Support (C) should be resting on the chair’s base. Using the 5mm Allen Wrench (T-A), loosen the screws on the Lower Support, slide down against the base, and retighten.
- Page 11 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 12 LAST UPDATED: 7/22/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
