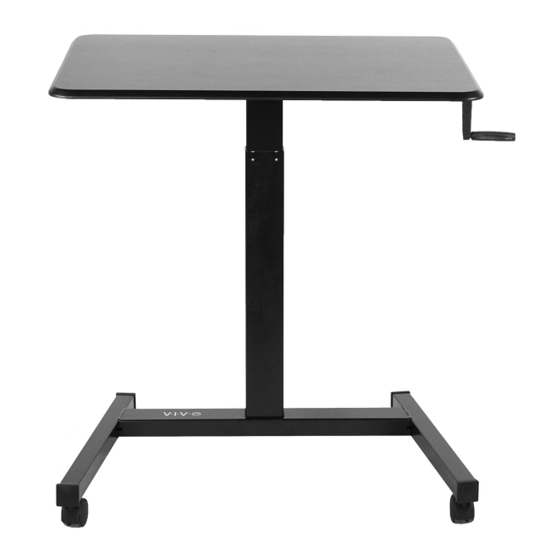

Black 32" Mobile Presentation Cart
Instruction Manual
SKU: CART-V07M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-v07m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo CART-V07M
Summary of Contents for Vivo CART-V07M
- Page 1 Black 32” Mobile Presentation Cart Instruction Manual SKU: CART-V07M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-v07m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Assemble the base (8) to the column (6) using M6x16 bolts (C) and tighten with the Allen wrench (A). Screw the casters (F) into the base, and tighten using the wrench (G). S=4mm... - Page 4 STEP 2 Place the support frame (2) on top of the column with the slots facing down and long end forward, making sure the pre-installed bolts on the column insert into the slots. Tighten bolts with Allen wrench (A).
- Page 5 STEP 3 Install the rear support bracket (3) and front support bracket (7) to the support frame (2) using x6 M6x12 bolts (B), and tighten with the Allen wrench (A). S=4mm STEP 4 Slide crank support (4) into the frame (3). Secure the crank support to the rear support bracket (3) using x6 M6x8 bolts (D).
- Page 6 STEP 5 Install the desktop (1) to the top of the frame using x6 M5x14 bolts (E) and tighten with a Phillips screwdriver.
- Page 7 STEP 6 Place monitor, keyboard, mouse and other items on the desk. Raise and lower the desk by turning the crank.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
