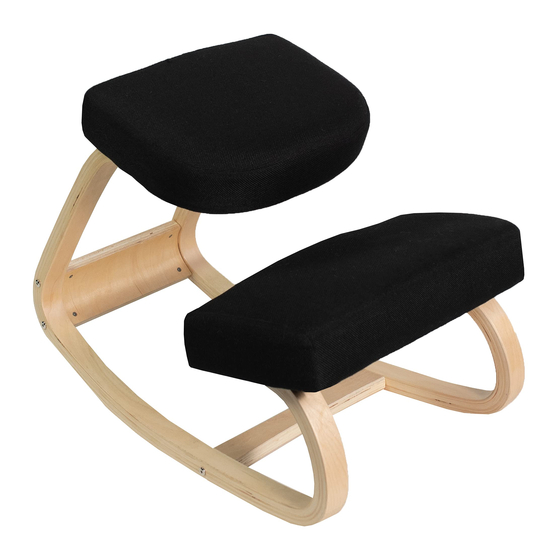

Wooden Rocking Kneeling Chair - Black Seat
Instruction Manual
SKU: CHAIR-K04R
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/chair-k04r
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo CHAIR-K04R
Summary of Contents for Vivo CHAIR-K04R
- Page 1 Wooden Rocking Kneeling Chair - Black Seat Instruction Manual SKU: CHAIR-K04R Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/chair-k04r GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Insert Wood Dowel Pins (S-A) into Front Frame Support (C).
- Page 4 STEP 2 Insert Barrel Nut (S-B) into the hole underneath Front Frame Support (C). Mount Front Frame Support (C) to Leftt Leg (B) with M6x80mm Screw (S-C), making sure the wider end of Front Frame Support (C) is facing forward. Tighten M6x80mm Screw (S-C) with 4mm Allen Wrench (T-A).
- Page 5 STEP 3 Mount Rear Frame Support (D) to Left Leg (B) with M6x80mm Screws (S-C) and Barrel Nuts (S-B), making sure the wider end of Rear Frame Support (D) is facing down. Tighten M6x80mm Screws (S-C) with 4mm Allen Wrench (T-A). STEP 4 Attach Right Leg (A) to chair assembly.
- Page 6 STEP 5 Mount Seat Pad (E) with the rounded end facing forward to the assembled frame using M6x25mm Screws (S-D) in one of two mounting positions, depending on user preference. Note, if you are taller, you will want to choose the set of holes closest to the front of the chair.
- Page 7 STEP 7 The chair is now ready for use. NOTE: The wood fibers may compress over time as the chair is used, causing the screws to loosen. 4mm Allen Wrench (T-A) should be kept available to periodically re-tighten the screws.
