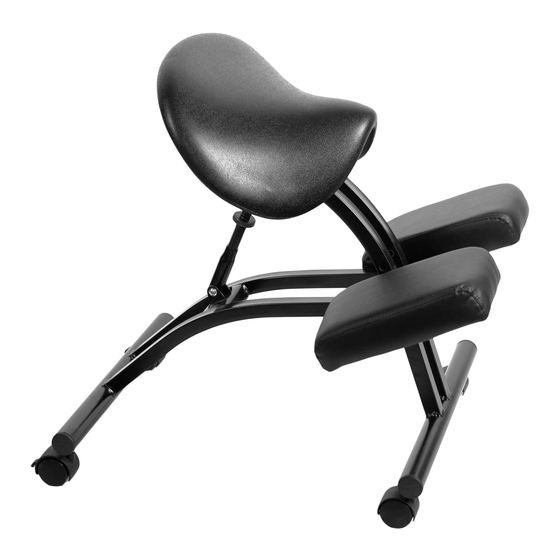

Black Saddle Seat Kneeling Chair with Wheels
Instruction Manual
SKU: CHAIR-K07SD
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/chair-k07sd
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo CHAIR-K07SD
Summary of Contents for Vivo CHAIR-K07SD
- Page 1 Black Saddle Seat Kneeling Chair with Wheels Instruction Manual SKU: CHAIR-K07SD Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/chair-k07sd GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Rotate the Front Frame (A) and slide it through the bars on the Rear Frame (B). Then rotate the Front Frame (A) again and align it with one of the four positions on the Front Frame (A). Note, you will want to pick a closer postion to the base pole the taller you are.
- Page 4 STEP 2 Install the Adjustable Support (C) to the Front Frame (A) using the Medium Sleeve Nut (S-C), Washers (S-E), and M6x10 Screws (S-A). The Washers (S-E) should be placed between the inside of the bars on the Front Frame (A) and the Adjustable Support (C). Tighten using the two 5mm Allen Wrenches (T-A). Attach the other end of the Adjustable Support (C) to the Rear Frame (B) using the Short Sleeve Nut (S-B) and Screws (S-A).
- Page 5 STEP 3 Attach the Knee Pad Set (D) to the brackets on the Rear Frame (B) using M6x18 Screws (S-F) and Locking Washers (S-G). Tighten using the 5mm Allen Wrench (T-A).
- Page 6 STEP 4 Install the Saddle Seat (E) onto the platform on the Front Frame (A) using one of the two sets of mounting hole locations on the Saddle Seat (E). Note, if you are taller, you will want to choose the set of holes closest to the front of the Saddle Seat (E).
- Page 7 STEP 5 Attach the Locking Casters (G) to the Front Frame (A) and the Non-Locking Casters (F) to the Rear Frame (B). Tighten using the Wrench (T-B). Step 6 Adjust the seat height and angle by turning the knob on the Adjustable Support (C).
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
