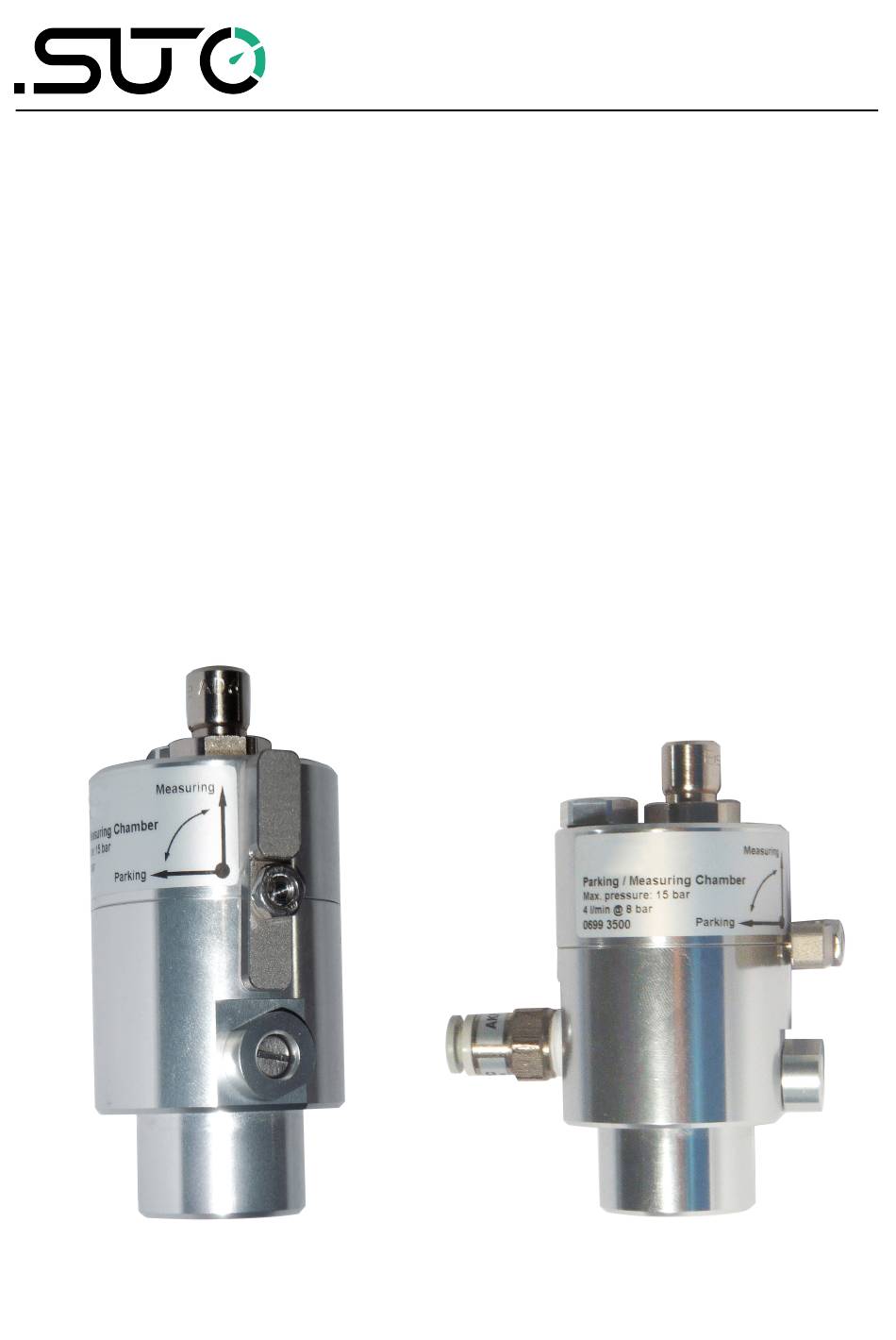

- Page 1 English Instruction and Operation Manual Measuring Chamber A699 3500/3501 with parking and measurement position...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
Table of contents 1 Safety Instructions..............4 2 Registered Trademarks..............5 3 Application.................6 4 Features..................6 5 Technical Data................6 6 Dimensional Drawing..............7 7 Installation ................7 7.1 Installation Requirements............7 7.2 Installation Procedure ............8 8 Maintenance................10 9 Disposal or Waste..............10 Measuring Chamber... -
Page 4: Safety Instructions
Safety Instructions 1 Safety Instructions Please check if this instruction manual matches with the product type. Please observe all notes and instructions indicated in this manual. It contains essential information which have to be observed before and during installation, operation and maintenance. -
Page 5: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage the humidity has to be <90%, no condensation. 2 Registered Trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA HART ®... -
Page 6: Application
Operating temperature 0°C ... 50°C Humidity of the meas. < 90%, no condensation medium Operating pressure 0.3 MPa ... 1.5 MPa (A699 3500) 0.001 MPa ... 1.0 MPa (A699 3501) Housing material Aluminium Dimensions See dimensional drawing on the page 7... -
Page 7: Dimensional Drawing
Please make sure that all components listed below are included in your package. Qty Description Item No. Measuring chamber A699 3500/A699 3501 Instruction manual No P/N 7.1 Installation Requirements The chamber is mounted to the S505 or S520 through the 1/2” G-type thread connection. -
Page 8: Installation Procedure
Installation 7.2 Installation Procedure The following steps explain the procedure of an appropriate installation. Installation of the measuring chamber 1. Screw the measuring chamber on the S505 or S520 through the 1/2” G-type thread connection. 2. Connect the teflon hose with the measuring chamber. - Page 9 Installation 5. After finishing the measurement, please return to the park position. Measuring position Parking position Remark Please ensure that the teflon hose remains dry and clean. Wet and contaminated hoses can effect the measurement and should be exchanged. By-pass version This chamber is equipped with a check valve 6mm connector which can be used to pass the air / gas through the chamber in one direction.
-
Page 10: Maintenance
Maintenance 8 Maintenance Please replace the desiccant if the dew point in parking position is above 2°C. Use a key to open the desiccant chamber and replace it. Please contact the manufacturer if a new desiccant is needed. Please replace the PE filter every 6 months. - Page 11 Measuring Chamber...
