ROCKING BASSINET
Model # 25201/35201 RBAV5
ASSEMBLY INSTRUCTIONS
ADULT ASSEMBLY REQUIRED
IMPORTANT: Read all instructions before assembly and use of the product
Keep the instructions for future reference
Customer Care Tel. 1-(800)-377-3777
Styles and colors may vary
(E)
www.DeltaChildrensProducts.com
DCP Cat # 07-07-11-V5
Advertisement
Table of Contents
Related Manuals for Delta 25201 RBAV5
Summary of Contents for Delta 25201 RBAV5

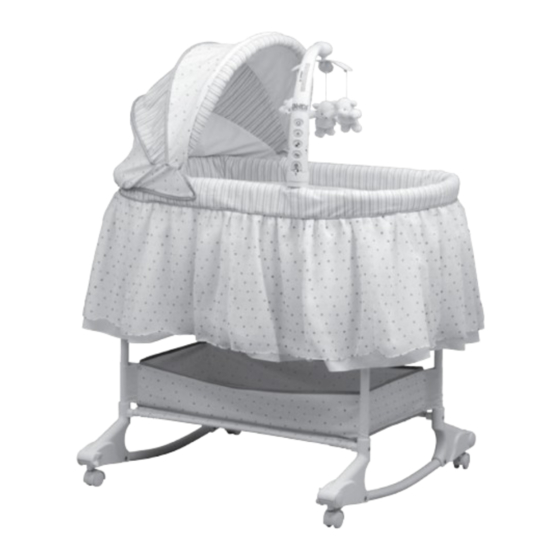

- Page 1 ROCKING BASSINET Model # 25201/35201 RBAV5 ASSEMBLY INSTRUCTIONS ADULT ASSEMBLY REQUIRED Styles and colors may vary IMPORTANT: Read all instructions before assembly and use of the product Keep the instructions for future reference www.DeltaChildrensProducts.com Customer Care Tel. 1-(800)-377-3777 DCP Cat # 07-07-11-V5...
-
Page 2: Consumer Information
NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Delta Children’s Product Customer Service Department at 1-800-377-3777 (8:00am ~ 4:30pm PST) for replacement parts, repair or instructions. - Page 3 Parts IMPORTANT! Please remove all parts from the package and identify them before assembly. Frame Base with Wheels - 2 Liner Mattress Support Mattress Pad Cross Tubes -2 Legs -2 Canopy Storage Basket M5 X 2.6cm Screw -2 Sheet M6 x 4cm Screw – 8 2.5.Pre-installed Screw in Mobile arm -2 Mobile Mobile arm...
-
Page 4: Bassinet Assembly
Bassinet Assembly Cross Tubes Storage Basket Tunnels Slots Base Note: You may need the help of another adult to help steady all parts for assembly. • Place a base on a flat surface with the slots facing up. • Fit a cross tube into each slot. Push down on each tube to be sure it is in place. - Page 5 Bassinet Assembly Receptacles Base Short Tunnels Cross Tubes Legs • First, fit the ends of a leg into short fabric sleeves in the storage basket. • Then, fit the ends of the leg into receptacle in each base. • Repeat this procedure to assemble the other leg to the storage basket and bases.
- Page 6 Bassinet Assembly M6 x 4cm Screws M6 x 4cm Screws PULL PULL • Turn the assembly upright. • Insert four M6 x 4cm screws through the holes in the frame and legs. • Check to be sure the legs are secure. While gently holding the base down, pull up on the legs.
- Page 7 Bassinet Assembly Mattress Support • While holding an M6 lock nut in place with the wrench, completely tighten a screw with the Phillips screwdriver. • Repeat this procedure tighten the other three screws. • Place the mattress support into the frame. •...
- Page 8 Bassinet Assembly Mobile Attachment Icon Liner M5 Lock Nuts Rounded Side • Attached a M5 lock nut to the end of the screw. Make sure the Mobile Arm rounded side of the lock nut faces down. Hand-tighten the lock Attachment Mount nuts onto the screws.
- Page 9 Bassinet Assembly Snaps Pocket Pocket Snaps Mattress Support • Stretch the pockets on the bottom of the liner around the ends of the Snap Mattress Support mattress support. • Snap both straps on the bottom of the liner to the bottom of the mattress support.
- Page 10 Bassinet Assembly Snap Canopy Ratchet Frame Snap • Position the canopy over the top end of the bassinet opposite the warning label. • Open the hook and loop fasteners on the liner and push aside foam to expose metal. • Fasten the hook and loop patches on each canopy flap to the side of •...
- Page 11 Consumer Information WARNING Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. • A mobile is intended for visual stimulation and is not intended to be grasped by the child. • From birth to 5 months. •...
-
Page 12: Battery Compartment Cover
Battery Installation Battery Compartment Cover 1.5V x 4 "AA" (LR6) In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). -
Page 13: Mobile Assembly
Mobile Assembly SLIDE TO REMOVE Latch • Place the mobile arm over the mobile icon located on the side rails. “snap” • Push down until you hear it into the bracket located inside the side rail. To Remove the Mobile Arm Assembly •... - Page 14 Mobile and Vibrations Unit Operation Rotate Mobile Toys Twinkling Lights Music Music/ Nature Sounds Night Light Music Volume Mobile Functions On/Off Switch Mobile Functions On/Off Switch Music Button • Slide the Mobile Functions On/Off switch at the base of the •...
-
Page 15: Retractable Wheels
