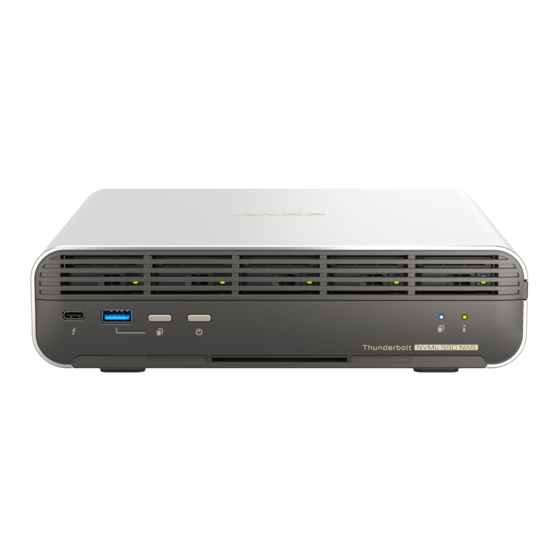

TBS-h574TX
User Guide
Document Version: 2
16/10/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBS-h574TX and is the answer not in the manual?

Questions and answers

Related Manuals for QNAP TBS-h574TX

Summary of Contents for QNAP TBS-h574TX

  • Page 1 TBS-h574TX User Guide Document Version: 2 16/10/2023...

  • Page 2: Table Of Contents

    TBS-h574TX User Guide Contents 1. Important Information Safety information..............................3 2. Product Overview About the TBS-h574TX...............................5 Hardware specifications............................5 Package contents...............................7 Components................................7 Front panel................................7 Rear panel................................8 Right panel................................9 Drive numbering..............................9 Installation requirements............................9 Setting up the NAS..............................10 3.
  • Page 3 myQNAPcloud Link..............................47 Qfinder Pro................................47 QTS.....................................47 QuTS hero................................. 47 8. Notices Limited warranty..............................48 Disclaimer................................. 48 Copyright and trademarks............................48 GNU General Public License........................... 49 CE notice................................... 56 UKCA notice................................56 FCC notice................................. 56 VCCI notice................................57 BSMI notice................................57 SJ/T 11364-2006................................58...

  • Page 4: Important Information

    Please keep the original packaging and packaging materials. If you want to return the product or send it for repairs, please use the original packaging to avoid damage. QNAP reserves the right not to provide a refund or warranty service for products that are damaged due to improper packaging.
  • Page 5 TBS-h574TX User Guide • To avoid potential battery explosion, causing injury or damage to components, ensure that you replace the existing battery with a battery of the same type. • Dispose of used batteries properly according to local regulations or the instructions of the battery manufacturer.

  • Page 6: Product Overview

    1.4b port and high-bandwidth data transfer through two Thunderbolt™ 4 ports. In addition to its five E1.S NVMe/M.2 NVMe SSD drive bays, the TBS-h574TX features one USB 2.0 Type-A port and two USB 3.2 Gen 2 Type-A ports, one of which supports One Touch Copy.
  • Page 7 TBS-h574TX User Guide Component TBS-h574TX-i3-12G TBS-h574TX-i5-16G 10 Gigabit network interface 1 x 10GBASE-T RJ45 Note The 10GBASE-T port supports the following network connectivity speeds: 10 GbE, 5 GbE, 2.5 GbE, 1 GbE, and 100 Mbps. 2.5 Gigabit network interface 1 x 2.5 GbE RJ45 Wake-on-LAN External I/O Ports &...

  • Page 8: Package Contents

    TBS-h574TX User Guide Component TBS-h574TX-i3-12G TBS-h574TX-i5-16G Relative humidity • Non-condensing relative humidity: 5% to 95% • Wet-bulb temperature: 27˚C (80.6˚F) Package contents Item Quantity TBS-h574TX AC power adapter Power cord Ethernet cables 1 x 10GBASE-T Ethernet cable Quick Installation Guide (QIG)

  • Page 9: Rear Panel

    TBS-h574TX User Guide Component Component Thunderbolt™ 4 port System status LED Note This port supports data transfer only. USB 3.2 Gen 2 One Touch Copy Type-A port Drive error LED USB One Touch Copy button Drive activity LED Power button...

  • Page 10: Right Panel

    TBS-h574TX User Guide Right panel Component Component Front cover latch Front cover lock Drive numbering Note This image shows the device without the front cover. Installation requirements Category Item Environment • Room temperature: 0˚C to 40˚C (32˚F to 104˚F) • Non-condensing relative humidity: 5% to 95% •...

  • Page 11: Setting Up The Nas

    TBS-h574TX User Guide Category Item Hardware and peripherals • Storage drives For the list of compatible drive models, go to https:// www.qnap.com/compatibility. • Network cable • Qfinder Pro installer • Computer Tools • Phillips #1 or #2 screwdriver • Flat head screwdriver •...

  • Page 12: Installation And Configuration

    The NAS is compatible with M.2 solid-state drives and E1.S solid-state drives with heights of up to 15 mm. Installing M.2 solid-state drives For a list of compatible M.2 SSDs, go to https://www.qnap.com/compatibility. Warning • Installing a drive deletes all data on the drive.
  • Page 13 The drive tray comes preinstalled with a QDA-E1SM adapter for installing M.2 SSDs. 3. Optional: Install a heatsink on the M.2 SSD. Note • Heatsinks are not included with the NAS and must be purchased separately. For details, contact an authorized reseller or go to https://shop.qnap.com/. Installation and Configuration...
  • Page 14 • Thermal pads are not included with the NAS and must be purchased separately. For details, contact an authorized reseller or go to https://shop.qnap.com. • The QNAP TPAD-M2SSD-04 thermal pads are recommended. The TPAD-M2SSD-04 includes thick and thin thermal pads for installing single-sided and double-sided SSDs.
  • Page 15 TBS-h574TX User Guide b. Install a thin thermal pad on top of the thick thermal pad. Note This step is for single-sided SSDs only. Skip this step if you are installing a double-sided SSD. 5. Install the M.2 SSD. a. Insert the M.2 SSD into the slot.
  • Page 16 TBS-h574TX User Guide b. Pull the locker and hold it in place. c. Carefully press down the M.2 SSD. d. Release the locker to secure the M.2 SSD. 6. Load the tray into the bay. a. Insert the tray into the bay.
  • Page 17 TBS-h574TX User Guide 7. Attach the front cover. a. Insert the left end of the front cover. b. Slide the front cover latch into the grove on the right side of the device. c. Slide the lock up to secure the front cover.
  • Page 18 TBS-h574TX User Guide Installing 5.9 mm E1.S solid-state drives For a list of compatible E1.S SSDs, go to https://www.qnap.com/compatibility. Warning • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components.
  • Page 19 TBS-h574TX User Guide c. Slide the front cover latch forward. d. Pull the front cover away from the device. 2. Remove the drive tray. a. Pull the tray handle outward. b. Pull the tray out. 3. Install the E1.S SSD.
  • Page 20 TBS-h574TX User Guide b. Remove the M.2 SSD adapter. c. Place the drive on the tray frame so that the holes on the drive align with the holes on the tray frame. d. Attach the screws that secure the drive to the tray frame.
  • Page 21 TBS-h574TX User Guide 5. Attach the front cover. a. Insert the left end of the front cover. b. Slide the front cover latch into the grove on the right side of the device. c. Slide the lock up to secure the front cover.
  • Page 22 TBS-h574TX User Guide Installing 9.5 mm and 15 mm E1.S solid-state drives For a list of compatible E1.S SSDs, go to https://www.qnap.com/compatibility. Warning • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components.
  • Page 23 TBS-h574TX User Guide c. Slide the front cover latch forward. d. Pull the front cover away from the device. 2. Remove the drive tray. a. Pull the tray handle outward. b. Pull the tray out. 3. Install the E1.S SSD.
  • Page 24 TBS-h574TX User Guide c. Place the drive on the tray base so that the holes on the drive align with the holes on the tray base. d. Attach the screws that secure the drive to the tray base. Attaching a 9.5 mm E1.S SSD...
  • Page 25 TBS-h574TX User Guide Attaching a 15 mm E1.S SSD 4. Load the tray into the bay. a. Insert the tray into the bay. b. Push the handle to secure the tray in place. 5. Attach the front cover. a. Insert the left end of the front cover.

  • Page 26: Connecting A Usb Expansion Unit

    Connecting a USB expansion unit The NAS supports USB expansion units. For details, please see the table below. You can purchase storage expansion accessories from QNAP or an authorized reseller. For details, go to https://shop.qnap.com/. For the list of compatible expansion units and the maximum number of applicable expansion units, go to https://www.qnap.com/go/compatibility-expansion.

  • Page 27: Quts Hero Installation

    You can also install the QNAP QTS operating system. If your NAS is connected to the internet, the option to install QTS will appear in the Smart Installation Guide wizard using any of the methods in the table. You can also manually download the QTS firmware from https://download.qnap.com.

  • Page 28: Initializing Quts Hero Using Qfinder Pro

    3. Run Qfinder Pro on a computer that is connected to the same local area network. Note To download Qfinder Pro, go to https://www.qnap.com/utilities. 4. Locate the NAS in the list and then double-click the name or IP address. The Smart Installation Guide opens in the default web browser.
  • Page 29 ASCII characters. 9. Click Next. 10. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 11. Click Next. The Configure the network settings screen appears.

  • Page 30: Initializing Quts Hero Using The Cloud Installation Website

    After the initialization, you can click Go to NAS Management to start using QuTS hero and configuring other settings. Initializing QuTS hero using the cloud installation website You can initialize QuTS hero on the cloud installation website, which is designed to help you set up QNAP devices. Warning Initializing QuTS hero deletes all data on the drives.
  • Page 31 TBS-h574TX User Guide 7. Click Next. The Smart Installation Guide opens in the default web browser. 8. Perform any of the following actions. • To check for the latest available version, click Start. The wizard downloads the latest available version, and then the NAS restarts after the download is complete.
  • Page 32 TBS-h574TX User Guide 13. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 14. Click Next. The Configure the network settings screen appears.

  • Page 33: Basic Operations

    TBS-h574TX User Guide 4. Basic Operations This chapter describes basic NAS operations. Power button Operation User Action Result Power on Press the button once. The device powers on. Power off Press and hold the button for 3 seconds. The device powers off.

  • Page 34: Usb One Touch Copy Button

    TBS-h574TX User Guide USB One Touch Copy button The USB One Touch Copy button allows you to copy data backups from a USB device to the QNAP device or from the QNAP device to a USB device. This feature supports incremental backups. The QNAP device only copies files that were modified or added after the last backup.
  • Page 35 TBS-h574TX User Guide Status Description Flashes red every 0.5 The device is in degraded mode (one member drive failed in RAID 1, RAID 5, or seconds RAID 6). Green The device is ready. Flashes green every 0.5 • The device is not configured.

  • Page 36: Audio Alert

    TBS-h574TX User Guide Status Description Orange The network connection is operating at 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, or 10 Mbps. There is no network connection. 2.5 Gigabit Ethernet Activity LED Status Description Orange A network connection has been established.
  • Page 37 TBS-h574TX User Guide Duration Frequency Description Long beep (1.5 3 (every 5 minutes) • A power error occurred. seconds) • A system fan is not functioning. • A fan module has been removed. • The NAS data cannot be copied to the external storage device connected to the USB One Touch Copy port.

  • Page 38: Nas Migration

    NAS migration requirements You can only migrate drives to specific NAS models, depending on your source NAS. For the list of NAS models compatible with direct NAS migration, see https://www.qnap.com/go/nas-migration. Your device must meet the following requirements: • QTS NAS supports several types of NAS migration: •...

  • Page 39: Migrating A Nas

    1. Power off the source NAS and the destination NAS. 2. Remove the drives. Important QNAP recommends following the source NAS drive order when installing the drives. Take note of the drive tray order when removing the drives. a. Remove the drives from the source NAS.

  • Page 40: Migrating Nas Data Using Hbs 3

    TBS-h574TX User Guide b. Remove the drive trays from the destination NAS. 3. Install the drives. a. Install source NAS drives onto the destination NAS drive trays. b. Insert the drive trays into the destination NAS. 4. Power on the destination NAS.
  • Page 41 TBS-h574TX User Guide Setting Description Password Specify a password that contains 1 to 16 characters from any of the following groups: • Letters: A to Z, a to z • Numbers: 0 to 9 • Special characters: . - _ ~ ! @ # $ % ^ & ( ) { } •...
  • Page 42 TBS-h574TX User Guide 10. Select the paired folders. Important • All subfolders and files in the selected folder are selected. • You can only sync up to 16 paired folders per job. a. Under the source, click A dialog box opens.

  • Page 43: Quts Hero Nas Migration

    NAS migration requirements You can only migrate drives and system settings to specific NAS models, depending on your source NAS. For the list of NAS models compatible with direct NAS migration, see https://www.qnap.com/en/nas-migration. Your device must meet the following requirements: •...

  • Page 44: Migrating A Nas

    Windows AD configurations must be reconfigured. Licenses Licenses are not migrated. Warning To prevent losing all your software licenses, QNAP recommends deactivating licenses on the source NAS before data migration. Applications If the destination NAS has less RAM than the source NAS, the following features and applications might not function: Virtualization Station, Qsirch, and Snapshots.
  • Page 45 TBS-h574TX User Guide Important QNAP recommends following the source NAS drive order when installing the drives. Take note of the drive tray order when removing the drives. a. Remove the drives from the source NAS. b. Remove the drive trays from the destination NAS.

  • Page 46: Troubleshooting

    TBS-h574TX User Guide 6. Troubleshooting This chapter describes basic troubleshooting information. Forcing Qfinder Pro or myQNAPcloud to locate the NAS If Qfinder Pro or myQNAPcloud is unable to locate the NAS during QuTS hero installation, the drives or data may be faulty.

  • Page 47: Recovering Unintentionally Removed Healthy Drives

    One disk per subgroup fails. Triple Mirror Multiple of 3. (For example, 3, 6, 9, 12 disks and so forth.) ≥ 5 RAID-TP Support and other resources QNAP provides the following resources: Resource Documentation https://download.qnap.com Compatibility List https://www.qnap.com/compatibility NAS Migration Compatibility https://www.qnap.com/go/nas-migration...

  • Page 48: Glossary

    Provides various remote access services such as DDNS and myQNAPcloud Link myQNAPcloud Link Enables you to access QNAP devices over the internet without configuring complex port forwarding settings Qfinder Pro QNAP utility that lets you locate and access QNAP devices in your local area network...

  • Page 49: Notices

    No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.

  • Page 50: Gnu General Public License

    TBS-h574TX User Guide Other company names and products mentioned herein are trademarks or registered trademarks of their respective holders. GNU General Public License Version 3, 29 June 2007 Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 51 TBS-h574TX User Guide “Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks. “The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees” and “recipients” may be individuals or organizations.
  • Page 52 TBS-h574TX User Guide for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.
  • Page 53 TBS-h574TX User Guide a. Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange. b. Convey the object code in, or embodied in, a physical product (including a physical distribution...
  • Page 54 TBS-h574TX User Guide Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.
  • Page 55 TBS-h574TX User Guide your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently if the copyright...
  • Page 56 TBS-h574TX User Guide have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

  • Page 57: Ce Notice

    TBS-h574TX User Guide PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU.

  • Page 58: Vcci Notice

    • Consult the dealer or an experienced radio/television technician for help. Important Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment.

  • Page 59: Sj/T 11364-2006

    TBS-h574TX User Guide SJ/T 11364-2006 本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能 包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 0 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
