- Page 1 Quick Start Guide Access Point ion4xe/ion4xe_ext...
- Page 2 ANYWHERE EVERYWHERE...

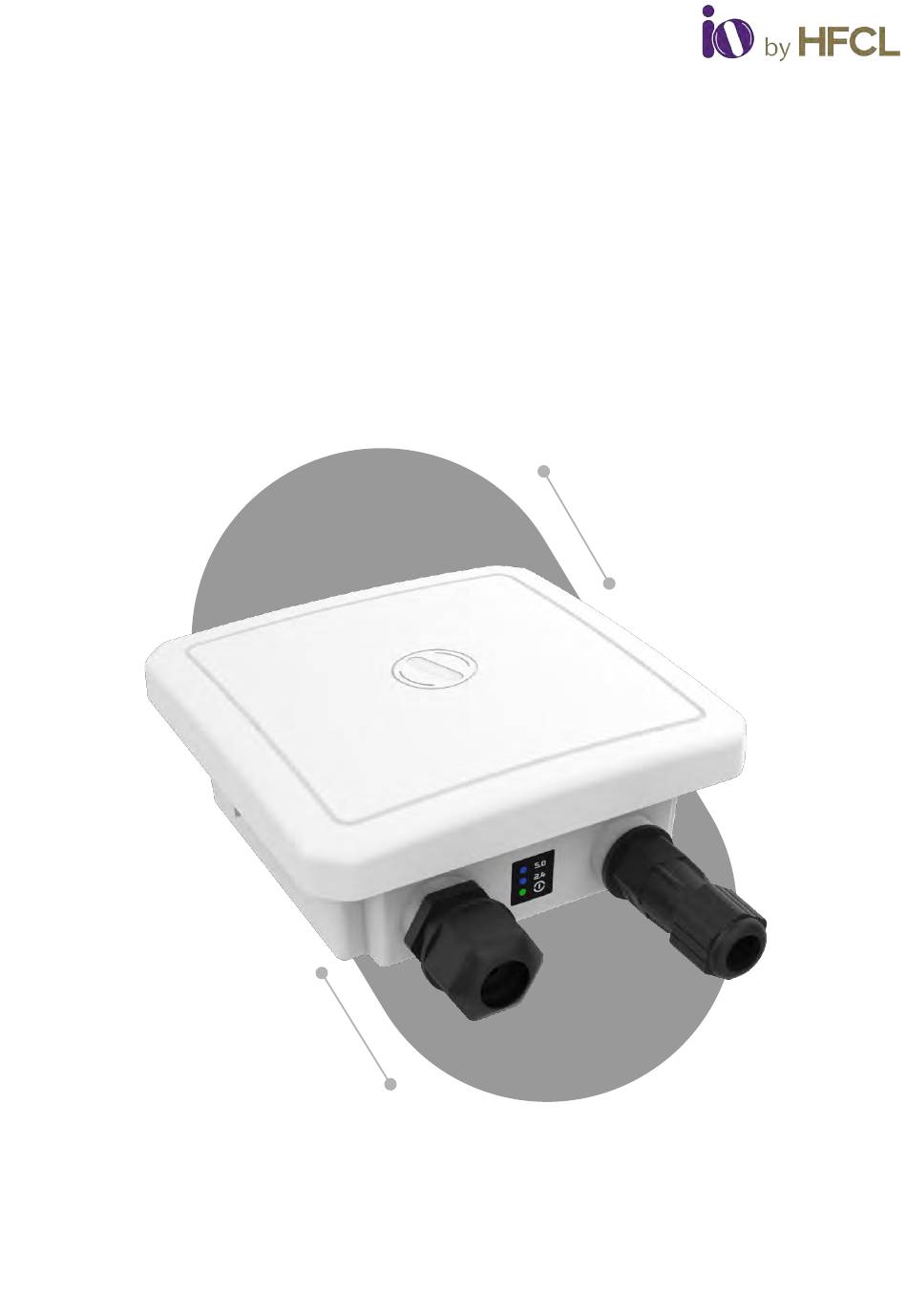

- Page 3 Introduction Thank you for purchasing our ion4xe/ion4xe_ext, a cutting-edge centrally managed Access Point. This device is Wi-Fi 6 certified, featuring a 2x2:2 MU-MIMO setup that sets new standards for wireless performance and efficiency. Packaging Content ion4xe/ion4xe_ext SFP Gland (1) RJ45 Gland (1)
-
Page 4: Product Specifications
7.17 x 7.28 x 3.5 inches Weight 1 kg Operating Temperature C to 60 C (ion4xe) C to 60 C (ion4xe_ext) Certifications FCC Class A, CE, Passpoint 2.0, WPA3, EasyMesh RoHS 3.0 Variants ion4xe - N-connectors; Normal temperature operation ion4xe_ext - N-connectors; Extended temperature operation... -
Page 5: Product Overview
Product Overview N Type connectors SFP Port (Connects fiber cable with maximum data transfer rate capability of 2.5 Gbps) LAN + PoE Port (Power up the device using PoE Adaptor and a regular Ethernet Cable) Earthing Point... - Page 6 Mounting of Access Point The Access Point can be mounted on a pole or onto a wall. Perform the following steps for appropriate installation. Align L Plate with the holes at the back of Access Point Use the provided SEMS Screws to fix the plate onto the Access Point The L Plate mounting bracket is fixed onto the mounting holes on the Access Point...
-
Page 7: Pole Mount
Access Point has the freedom of movement along with the vertical & horizontal axis The pole mounting is designed for poles of diameter 40 mm to 60 mm.For Note: mountings on larger size poles upto 140 mm, contact at iosales@hfcl.com... -
Page 8: Wall Mount
Wall Mount To mount the Access Point on a wall, use the wall mounting bracket, drywall screws, and screw anchors (* The entire wall mounting assembly is sold separately) Take the reference from the wall mounting bracket and mark the position of the holes on the wall Use the drill machine to drill 2 holes on respective marked positions Push the screw anchors into the holes with a hammer... -
Page 9: Attaching External Antennas
Attaching External Antennas Sector Antenna Secure the mounting bracket on the back of the sector antenna using provided fasteners. Align the bracket mounted sector antenna with the pole clamp... - Page 10 This type of mounting enables vertical and horizontal movement by loosening few of the bolts as shown above. Attach one end of the RF Cables to the sector antenna & the other end on the N type connectors of the Access Point...
- Page 11 The final view is as shown above. WARNING: HFCL cannot be held liable for any damages incurred during the process...
-
Page 12: Omni Antenna
Omni Antenna Attach omnidirectional antenna on the N Type Connectors of the Access Point... - Page 13 Getting the Access Point Online Step 1: Power up the device and connect to the network Follow the steps mentioned below and connect the Access Point to a network: PoE Adaptor (48V) Cat-5 (Ethernet Cable) Note: Plug and Adaptor will vary by country/region Power up using PoE Adaptor...
- Page 14 Section 1: Standalone AP Connect an Ethernet cable to the computer Connect the other end of Ethernet cable to the data port on PoE adaptor Connect Access point PoE supported Ethernet port to PoE adaptor power port. Device will be powered on PoE Adaptor (48V) Laptop/ Computer Cast-5 (Ethernet Cable)
- Page 15 Follow the steps mentioned to connect Access Point to a network: Power-up the AP through PoE adaptor or PoE switch Connect the AP to DHCP network and Internet Login to HFCL io cloud controller (cNMS) iocloud.hfcl.com with credentials provided To get cNMS login credential, please send a request to...
- Page 16 Retailer Name Purchased Add AP group under configuration Add APs in the AP group Create SSID in the AP group Refer our website io.hfcl.com for detailed information to configure AP through cNMS Step 2: Check the LED status 5 GHz status LED 2.4 GHz...
-
Page 17: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Access Point: Do not power the device during installation Keep away from high voltage cables Do not power off the unit in the middle of an upgrade process The glands should be ground facing all the time Do not open the enclosure Fasten the device tightly... - Page 18 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
