HFCL io ion4xi WP Quick Start Manual

Wall plate access point
Hide thumbs Also See for io ion4xi WP:

Advertisement

Quick Links

Download this manual

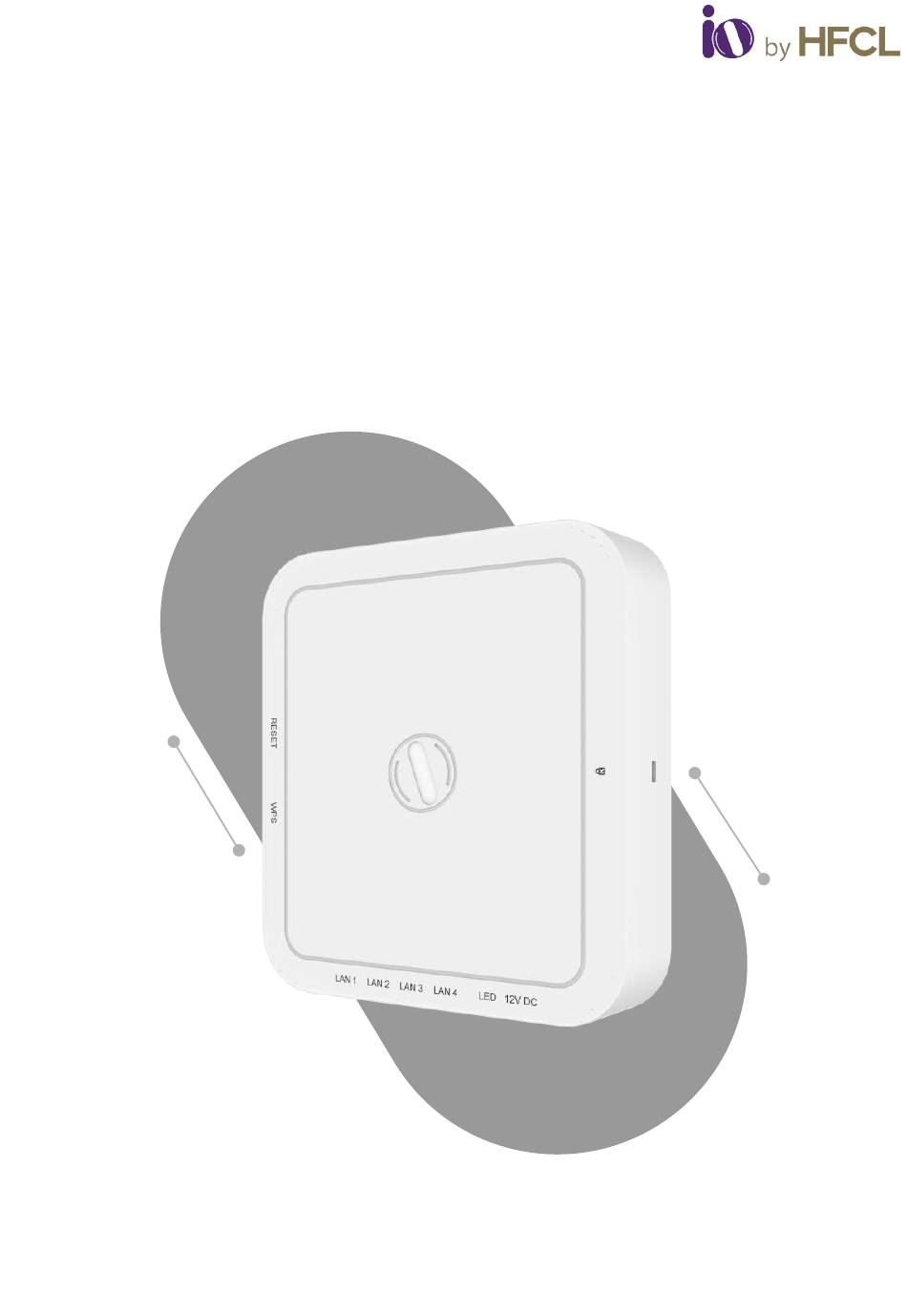

Quick
Start
Guide
Wall Plate Access Point
ion4xi_WP

Advertisement

loading
Need help?

Need help?

Do you have a question about the io ion4xi WP and is the answer not in the manual?

Questions and answers

Related Manuals for HFCL io ion4xi WP

Summary of Contents for HFCL io ion4xi WP

  • Page 1 Quick Start Guide Wall Plate Access Point ion4xi_WP...
  • Page 2 ANYWHERE EVERYWHERE...
  • Page 3 Introduction Thank you for purchasing our ion4xi_WP, a cutting-edge centrally managed Access Point. This device is Wi-Fi 6 certified, featuring a 2x2:2 MU-MIMO setup that sets new standards for wireless performance and efficiency. Packaging Content ion4xi_WP (1.) (2.) (3.) (4.) (5.) (6.) 1.

  • Page 4: Product Specifications

    Product Specifications Peak Data Rate (aggregate) Up to 1.78 Gbps (1202 Mbps for 5 GHz and 574 Mbps for 2.4 GHz) Wi-Fi Standard Support 802.11a/b/g/n/ac/ac Wave 2/ax Interface 1 x 10/100/1000/2500 Base-T Ethernet (WAN & PoE-in) 4 x 10/100/1000 Base-T Ethernet (LAN) DC input jack (optional) Reset and WPS buttons Radio Mode...

  • Page 5: Product Overview

    Product Overview Reset Button Kensington Lock DC Jack (Power up 4 LAN Ports using 12V Adaptor) Status and Power LED Mounting Slots WAN + PoE (Power up the device using a PoE Adaptor and a regular Ethernet Port)
  • Page 6 Mounting of Access Point Perform the following steps for appropriate installation onto a wall. The Access Point comes with a pre-attached wall mounting bracket Mounting bracket (Attached to the Allen Key access point) Use Allen Key/Screw Bit to unscrew the wall mounting bracket from the Access Point An electrical wall box should be pre-installed with an Ethernet cable running from the box to a Switch with PoE...
  • Page 7 There are several mounting holes on the bracket that may be used with various wall boxes. Attach the bracket on the wall using the wall mount screws. Mounting Hooks Holes in the mounting bracket (To attach the bracket to the wall) Mounting Bracket Pass the Ethernet cable through the bracket and connect it to the PoE port...
  • Page 8 Securely align the mounting slots of access point with hooks of the bracket Secure the Access Point to the bracket by tightening the Phillips Security screw using Allen Key/Screw Bit. WARNING: HFCL cannot be held liable for any damages incurred during the process...
  • Page 9 Unmounting of Access Point Perform the following steps for unmounting of Access Point. Loosen the Phillips Security screw as indicated below using the Allen key/ Screw bit. Unmount the Access Point from the hooks of the bracket. Unmount the Access Point from bracket’s hooks...
  • Page 10 Getting the Access Point Online Step 1: Power up The Access Point can be powered up using PoE adaptor (48V) or DC adaptor (12V) as shown below: DC Power Adaptor Power up using DC Power Adaptor PoE Adapter (48V) Ethernet Cable Power up using PoE Adaptor Note: Plug and Adaptor will vary by country/region...
  • Page 11 Access Point or use a PoE adaptor to do so Laptop/ Computer PoE Adaptor (48V) Ethernet Cable Open the web browser and enter the Access Point static IP address in the address bar: 192.168.1.1 A login screen will appear Enter the default login credential details: User-root, Password-hfcl!ion...
  • Page 12 Access Point to a network: Power-up the AP through PoE adapter or PoE switch Connect the AP to DHCP network and Internet Login to HFCL io cloud controller (cNMS) iocloud.hfcl.com with credentials provided To get cNMS login credential, please send request email to iosupport@hfcl.com with below details...
  • Page 13 Step 3: Check the LED status Status and Power LED STATUS LED COLOR Solid/constant blue color notifies the user that the device is powered ON and no data Blue (Constant) is being transmitted Slow blinking blue color notifies the user Blue (Slow blinking) that the device is powered ON and data is being transmitted on either one or both radios...

  • Page 14: Safety Precautions

    Safety Precautions Observe the following safety precautions to avoid damage to the Wall Plate Access Point: Do not subject the device to high temperatures Keep away from high voltage cables Disconnect the device before cleaning it Do not wipe the device with a damp cloth Do not open the enclosure of the Access Point Fasten the device tightly with the mount...
  • Page 15 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
