- Page 1 Quick Start Guide Access Point ion4xi_w...
- Page 2 ANYWHERE EVERYWHERE...
- Page 3 Introduction Thank you for purchasing ion4xi_w, a cutting-edge Centrally Managed Access Point. This device is Wi-Fi 6 certified, featuring a 2x2:2 MU-MIMO setup that sets new standards for wireless performance and efficiency. Packaging Content Ion4xi_w Access Point (Qty:1) Mounting Kit Mounting screws (4), Plastic Wall Anchors (4), Mounting screws and Nuts (4 each),...
-
Page 4: Product Specifications
Product Specifications Peak Data Rate (aggregate) Up to 3 Gbps (2402 Mbps for 5 GHz and 574 Mbps for 2.4 GHz) Wi-Fi Standard Support 802.11a/b/g/n/ac/ac Wave 2/ax Interface 1 x 100/1000/2500 Base-T Ethernet DC power jack Radio Mode 2x2 MU-MIMO with 2 spatial streams Mesh Support Self-creating, Self-healing EasyMesh Maximum number of SSID... -
Page 5: Product Overview

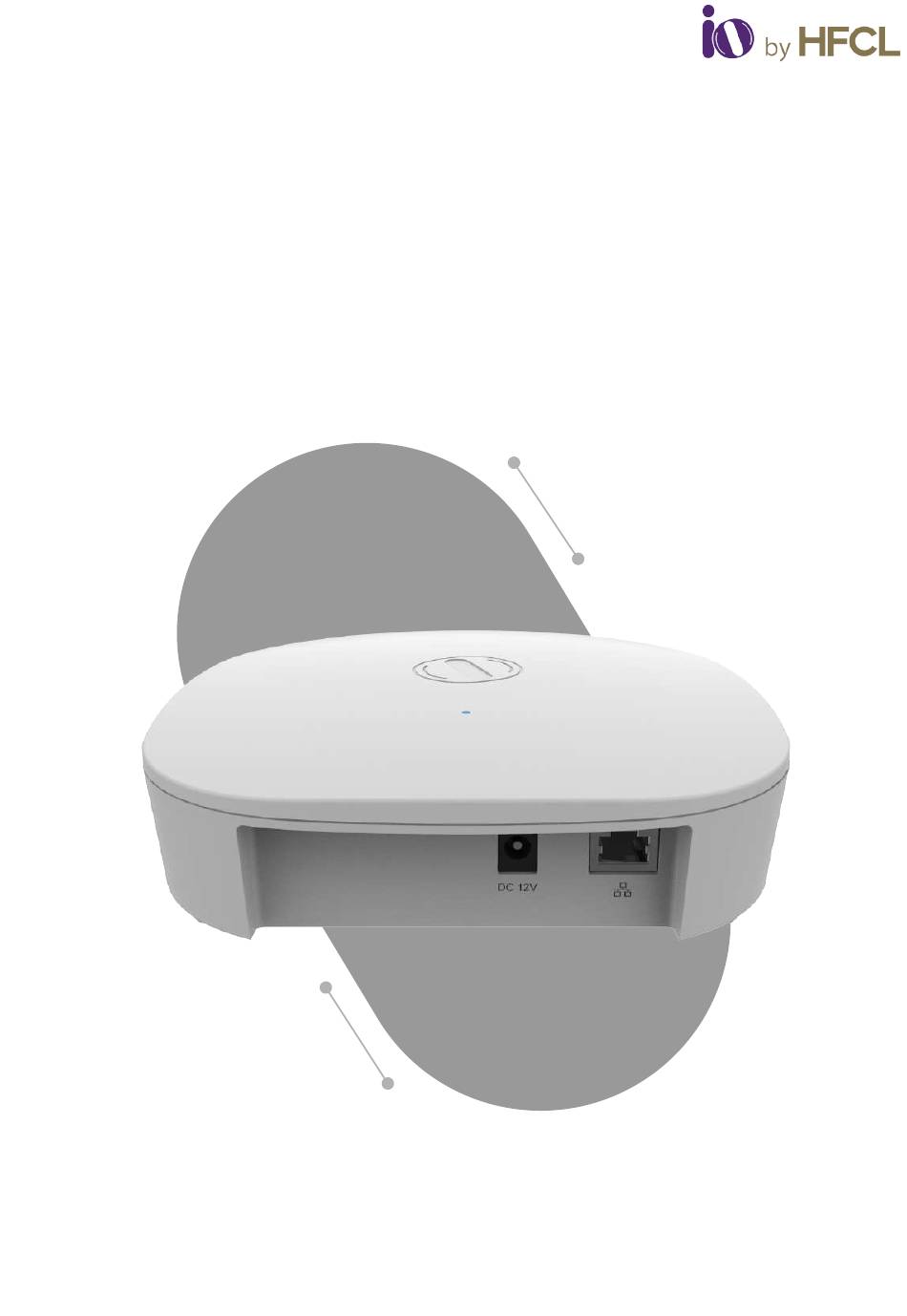

Product Overview WAN Port DC Jack (Power up using 12V Adaptor) Mounting Holes... - Page 6 Mounting of Access Point Place the mounting plate which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws. Drill holes in the marked points and insert the plastic wall anchors. Use supplied screws and attach mounting plate on the wall.
- Page 7 Align and slide the mounting screws on the Access Point with the keyholes on the mounting plate, ensuring a secure and hinged connection. Unlocked position of the Locked position of the Access Point hooks Access Point hooks Securely tighten these nuts while maintaining a firm grip on the device to prevent it from falling.
- Page 8 Slide the Device out from the Key holes of mounting plate. Locked position Unlocked position of the of the Access Point hooks Access Point hooks WARNING: HFCL cannot be held liable for any damages incurred during the process...
- Page 9 Getting the Access Point Online Step 1: Power up the device The Access Point can be powered up using *DC adaptor (12V) only. DC Adaptor (12V) Power up using DC Power Adaptor 1. *DC Power Adaptor availability varies by region. Note: 2.
- Page 10 Step 2: Connect to the network Section 1: Standalone AP Follow the steps mentioned below to connect the Access Point to a network Connect an Ethernet cable to the computer. Connect the other end of the Ethernet cable to the LAN port on the Access Point. Laptop/ Computer Ethernet Cable Configure the computer with a same domain...
- Page 11 Follow the steps mentioned below and connect the Access Point to a network Connect the AP to DHCP network and Internet Login to HFCL io cloud controller (cNMS) iocloud.hfcl.com with credentials provided To get cNMS login credential, please send request email to...
- Page 12 Retailer Name Purchased Add AP group under configuration Add APs in the AP group Create SSID in the AP group Refer our website io.hfcl.com for detailed information to configure AP through cNMS Step 3: Check the LED status Status LED...
-
Page 13: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Access Point: Do not subject the device to high temperatures Keep away from high voltage cables Disconnect the device before cleaning it Do not wipe the device with a damp cloth Do not open the enclosure Fasten the device tightly... - Page 14 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
