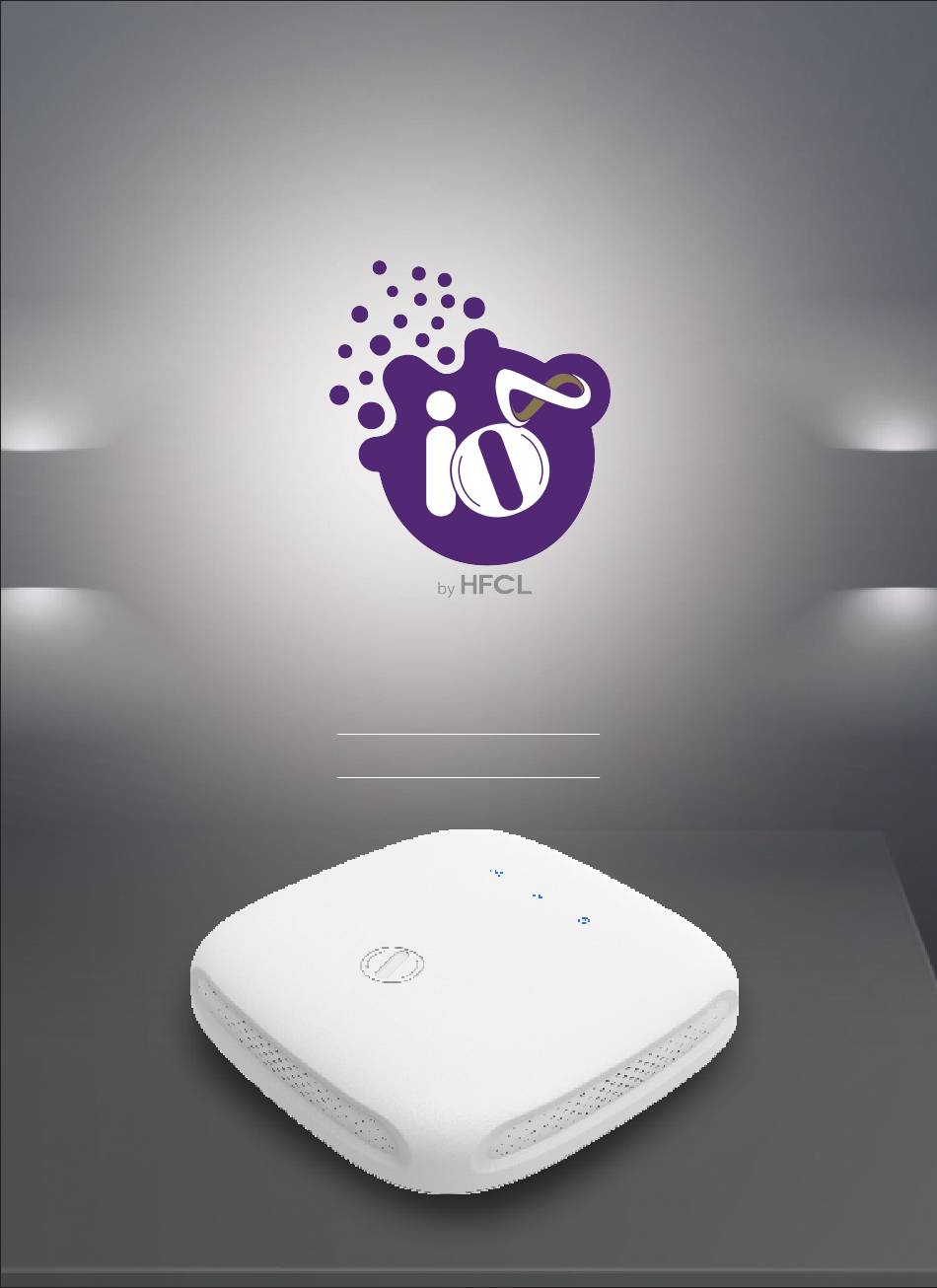

- Page 1 Access Point QUICK START GUIDE...
- Page 2 ANYWHERE EVERYWHERE...
- Page 3 Thank you for choosing ion8i Wireless Access Point with 4x4:4 Multi-User MIMO and 802.11ac Wave 2 compliance. Packaging Content 1. ion8i Wireless Access Point 2. Quick Start Guide 3. AC Power Adaptor 4. Mounting Bracket AC Power Adaptor (Varies by Region)
-
Page 4: Product Overview
12 V Adaptor) WAN Combo Port (Combination of Ethernet and SFP) Mounting of ion8i Access Point Place the Mounting Bracket which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws. Drill holes in the marked points and insert... - Page 5 Use the supplied screws and attach the mounting bracket to the wall. Note: Make sure that the mounting bracket is tightly installed before mounting the Access Point on the wall or ceiling. Mounting Bracket Wall/ Ceiling Hook Holes in Mounting Bracket with supplied screws...
- Page 6 Align the mounting slots of Access Point with the hooks of the mounting bracket (Mounting slots of Access Point securely aligned with hooks of mounting bracket) Mounting Bracket...
- Page 7 Unmounting of ion8i Access Point Slightly push the Access Point towards the mounting bracket and slide the hooks out from the mounting slots. Slide Access Point out from hooks Push the Access Point WARNING: Insecure mounting might damage the device or cause injury.
- Page 8 Getting the ion8i Online Step 1: Power up The Access Point can be powered up using PoE Adaptor or AC Adaptor (12V) as shown below: AC Power Adaptor Power up using AC Power Adaptor Cat-5 PoE Adaptor Power up using PoE Adaptor Note: The Reset button serves two functions: Restart: Press and release the Reset button quickly.
- Page 9 Follow the steps mentioned below and connect the Access Point to a network through GUI: 1. Connect an Ethernet cable to the computer. 2. Connect the other end of the Ethernet cable to the LAN port on the ion8i Access Point. (Ethernet Cable) (Laptop/Computer)
- Page 10 3. Open the web browser and enter the Access Point static IP address in the address bar: 192.168.1.1 4. A login screen will appear. 5. Enter the default login credentials as provided with your ion8i Access Point. NOTE: Refer the respective user manual on our website...
- Page 11 ON) Observe the following safety precautions to avoid damage to the ion8i Access Point: 1. Do not subject the device to high temperatures. 2. Keep away from high voltage cables. 3. Disconnect the device before cleaning it.
- Page 12 Contact us: Email: iosupport@hfcl.com Website: www.hfcl.com www.io.hfcl.com 8, Commercial Complex, Masjid Moth Greater Kailash-II, New Delhi-110048 ©HFCL Limited. All rights reserved. IO logo is registered trademarks of HFCL Limited Specifications are subject to change without notice.
