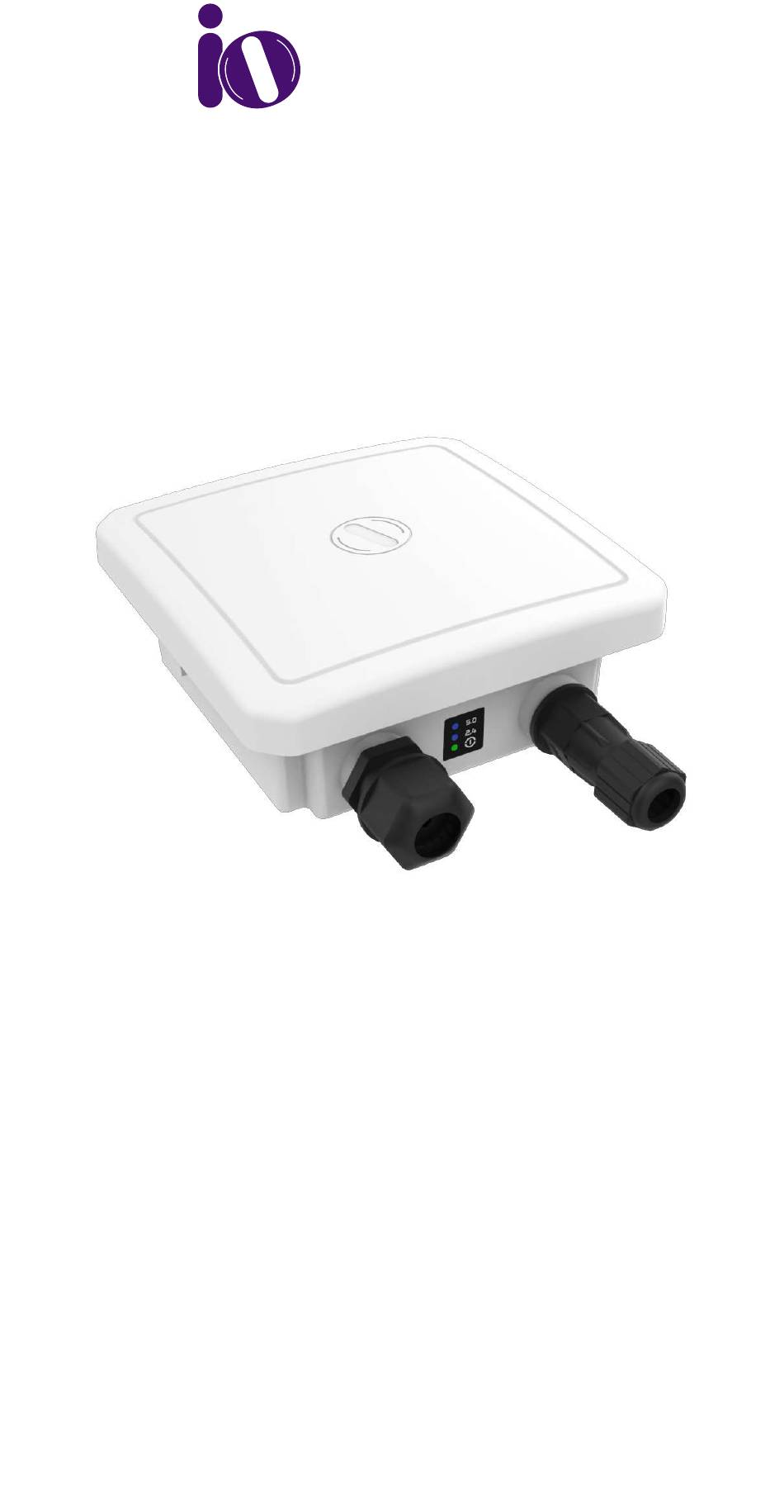

- Page 1 HFCL Quick Start Guide Access Point ion4xe/ion4xe_ext...
- Page 2 ANYWHERE EVERYWHERE...
-
Page 3: Packaging Content
Introduction Thank you for purchasing our ion4xe/ion4xe_ext, a cutting-edge cloud-managed Access Point. This device is Wi-Fi 6 certified, featuring a 2x2:2 MU-MIMO setup that sets new standards for wireless performance and efficiency. Packaging Content ion4xe/ion4xe_ext SFP Gland (1) RJ45 Gland (1) -
Page 4: Product Specifications
7.17 x 7.28 x 3.5 inches Weight 1 kg C to 60 C (ion4xe) Operating Temperature C to 60 C (ion4xe_ext) FCC Class A, CE, Passpoint 2.0, Certifications WPA3, EasyMesh RoHS 3.0 ion4xe - N-connectors; Normal temperature operation Variants ion4xe_ext - N-connectors; Extended temperature operation... -
Page 5: Product Overview
Product Overview N Type connectors SFP Port (Connects fiber cable with maximum data transfer rate capability of 2.5 Gbps) LAN + PoE Port (Power up the device using PoE Adaptor and a Earthing Point regular Ethernet Cable) - Page 6 Mounting of Access Point The Access Point can be mounted on a pole or to a wall. Perform the following steps for appropriate installation 1. Align L Plate with the holes at the back of Access Point 2. Use the provided screws to fix the plate onto the Access Point The mounting bracket is fixed onto the mounting holes on the Access Point...
-
Page 7: Pole Mount
3. Access Point has the freedom of movement along the vertical & horizontal axis. Note: The pole mounting is designed for poles of diameter 40 mm to 60 mm. For mountings on larger size poles upto 140 mm, contact at iosales@hfcl.com... -
Page 8: Wall Mount
Wall Mount To mount the Access Point on a wall, use the wall mounting bracket, drywall screws, and screw anchors (* The entire wall mounting assembly is sold seperately) Step 1 Step 2 Step 3 1. Take the reference from the wall mounting bracket and mark the position of the holes on the wall 2. - Page 9 Attaching External Antenna Sector Antenna 1. Secure the mounting bracket on the back of the sector antenna using provided fasteners. 2. Align the bracket mounted sector antenna with the pole clamp 3. This type of mounting enables vertical and horizontal movement by loosening few of the bolts as shown below...
- Page 10 4. Attach one end of the RF Cables to the sector antenna & the other end to the N type connectors of the Access Point. The final view is as shown below. WARNING: HFCL is not held liable for any damages incurred during the process...
- Page 11 Getting the Access Point Online Step 1: Power up the device and connect to the network Follow the steps mentioned below and connect the Access Point to a network: PoE Adaptor (48V) Cat-5 (Ethernet Cable) Note: Plug and Adaptor will vary by country/region Power up using PoE Adaptor...
- Page 12 Section 1: Standalone AP 1. Connect an Ethernet cable to the computer 2. Connect the other end of Ethernet cable to the data port on PoE adaptor 3. Connect Access point PoE supported Ethernet port to PoE adaptor power port. Device will be powered on PoE Adaptor (48V) Laptop/ Computer...
- Page 13 1. Power-up the AP through PoE adaptor or PoE switch 2. Connect the AP to DHCP network and Internet 3. Login to HFCL iocloud controller (cNMS) iocloud.hfcl.com with credentials provided. 3a. To get cNMS login credential, please send a request to iosupport@hfcl.com with below details...
- Page 14 5. Add AP group under configuration 6. Add APs in the AP group 7. Create SSID in the AP group 8. Refer our website io.hfcl.com for detailed information to configure AP through cNMS Step 2. Check the LED status 5 GHz status LED 2.4 GHz...
-
Page 15: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Access Point: Do not power the device during installation Keep away from high voltage cables Do not power off the unit in the middle of an upgrade process The glands should be ground facing all the time Do not open the enclosure Fasten the device tightly... - Page 16 Website: hfcl.com | io.hfcl.com Address: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
