- Page 1 HFCL Quick Start Guide Access Point ion12xi_h/ion12xi_h2...
- Page 2 ANYWHERE EVERYWHERE...
-
Page 3: Packaging Content

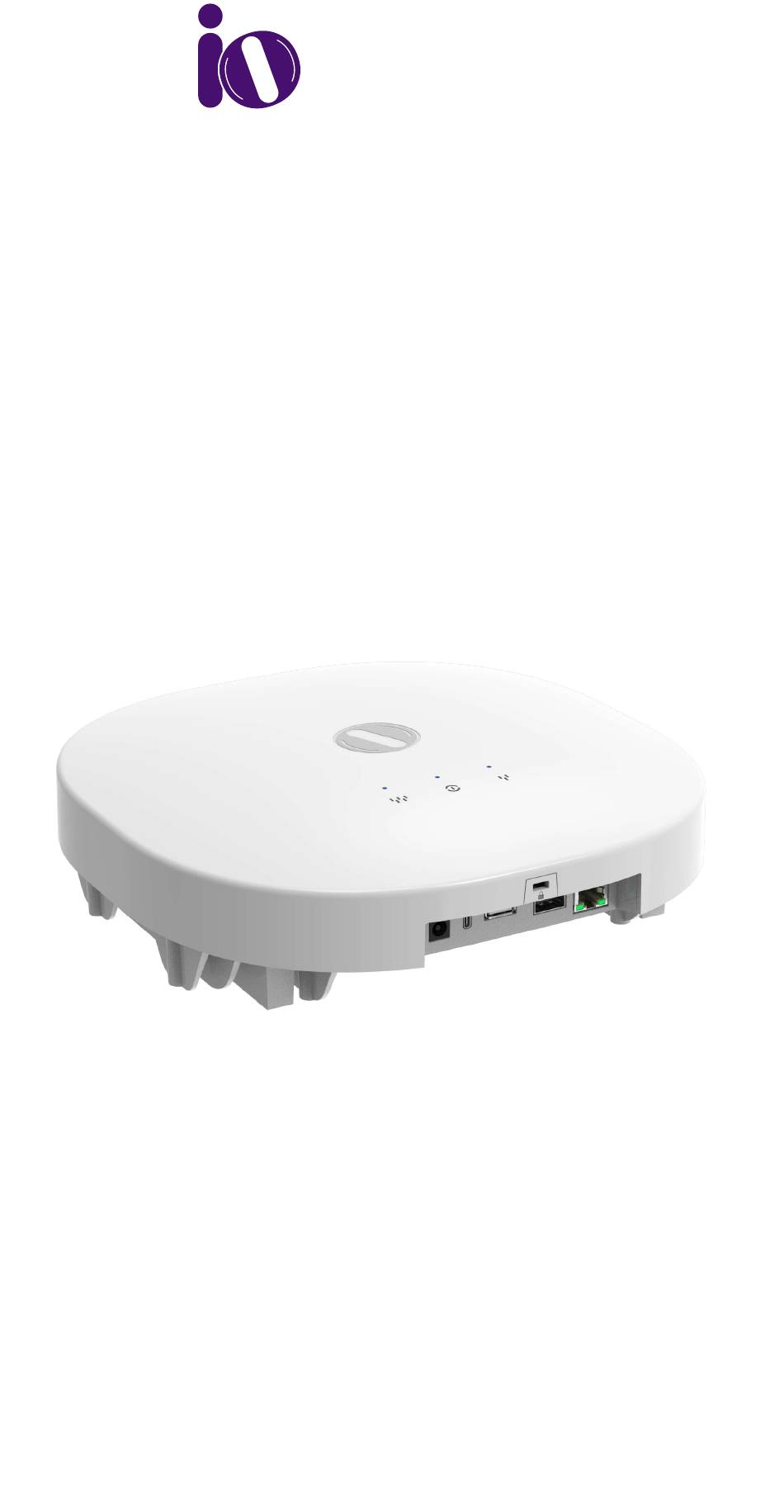

Introduction Thank you for purchasing our ion12xi_h/ion12xi_h2, a cutting-edge cloud-managed Access Point. This device is Wi-Fi 6 certified, featuring a 8x8:8 MU-MIMO setup that sets new standards for wireless performance and efficiency. Packaging Content ion12xi_h/ ion12xi_h2 Access Point (Qty:1) Mounting Kit Mounting Screws SS PPH 6x1-1/2 (4), Plastic Wall Anchors (4), Mounting Screws SS PPH M4x50 and... -
Page 4: Product Specifications
Product Specifications 5.95 Gbps combined (8x8 MU-MIMO; 80 MHz) Peak Data Rate (aggregate) 5.95 Gbps combined (4x4 MU-MIMO; 160 MHz) Wi-Fi Standard Support IEEE 802.11 a/b/g/n/ac/ax 1x10 Gigabit Ethernet (10GbE) RJ45 Port 1x10 Gigabit Ethernet (10GbE) Optical SFP+ Port Interface DC jack USB 3.0 port (Type A) USB 2.0 port (Type C) [Console Port]... -
Page 5: Product Overview
Product Overview 1x10 Gigabit Ethernet Optical SFP+ Port USB 2.0 port [Console Port] For DC variant: Kensington 10 GE Port Lock For DC& PoE variant: DC Jack Active PoE++ Port Reset Button USB 3.0 port Mounting of Access Point on Solid Ceiling or Wall 1. - Page 6 2. Utilize the provided mounting screws SS PPH 6x1-1/2 to affix the mounting bracket securely onto the wall. Ensure that the mounting bracket is firmly installed before mounting the Access Point on the wall or ceiling. Wall or Ceiling Drill holes mark A Plastic wall plug Screws...
- Page 7 4. Align and slide the mounting screws on the Access Point with the keyholes on the mounting plate, ensuring a secure and hinged connection. 5. Securely tighten these nuts by rotating them in an anti-clockwise direction while maintaining a firm grip on the device to prevent it from falling.
- Page 8 Mounting of Access Point on False Ceiling Additional Mounting Kit for False Ceiling M4x30 Hex head screw with M4 nuts (4 each), Back Ceiling Plate (1) Steps for mounting on false ceiling 1. Place the mounting plate on the false ceiling and mark holes with a marker at location mark B as shown in the figure below.
- Page 9 4. Tighten the provided M4 Hex Nuts from the opposite side of the false ceiling as shown in the image. 5. Pass the screws through Hex nuts provided. Then, tighten these screws in the mounting holes provided on the Access Point. 6.
- Page 10 Unmounting of Access Point 1. Loosen the nuts and keep a firm grip on the device to prevent it from falling. 2. Slide the screws attached to the Access Point out of the keyholes of the mounting plate to disengage it from the slots.
-
Page 11: Step 1: Power Up
Getting the Access Point Online ion12xi_h Access Point can be powered up using DC adaptor (12V) only. Laptop/ Computer DC Adaptor (12V) Step 1: Power up 1. In order to power on the device, connect the DC Adaptor* to the Access Point. - Page 12 Follow the steps mentioned to connect Access Point to a network: 1. Connect the AP to DHCP network and Internet 2. Login to HFCL io cloud controller (cNMS) iocloud.hfcl.com with credentials provided 3. To get cNMS login credential, please send request email to iosupport@hfcl.com with below details...
- Page 13 ion12xi_h2 Access Point can be powered up using DC adaptor* or Active PoE++ Adaptor (48V) Active PoE++ Adaptor (48V) Cat-5 or Cat 6 (Ethernet Cable) Laptop/ Computer Step 1: Power up 1. Connect Access point PoE supported Ethernet port to Active PoE++ adaptor power port.
- Page 14 No. of AP Country Retailer Name Purchased 3. Add AP group under configuration 4. Add APs in the AP group 5. Create SSID in the AP group 6. Refer our website io.hfcl.com for detailed information to configure AP through cNMS...
- Page 15 Step 2. Check the LED status 2.4 GHz status LED 5 GHz status LED Power LED LED Color Status Power LED Blue Stable: The device is powered ON Blue Stable: 2.4 GHz radio is active 2.4 GHz Status Blue Blinking: Data transmission on 2.4 GHz radio Blue Stable: 5 GHz radio is active 5 GHz Status...
-
Page 16: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Access Point: Do not power the device during installation Keep away from high voltage cables Do not power off the unit in the middle of an upgrade process Do not open the enclosure of the Access Point Fasten the device tightly with the mount Do not subject the device to high temperatures... - Page 17 Website: hfcl.com | io.hfcl.com Address: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
