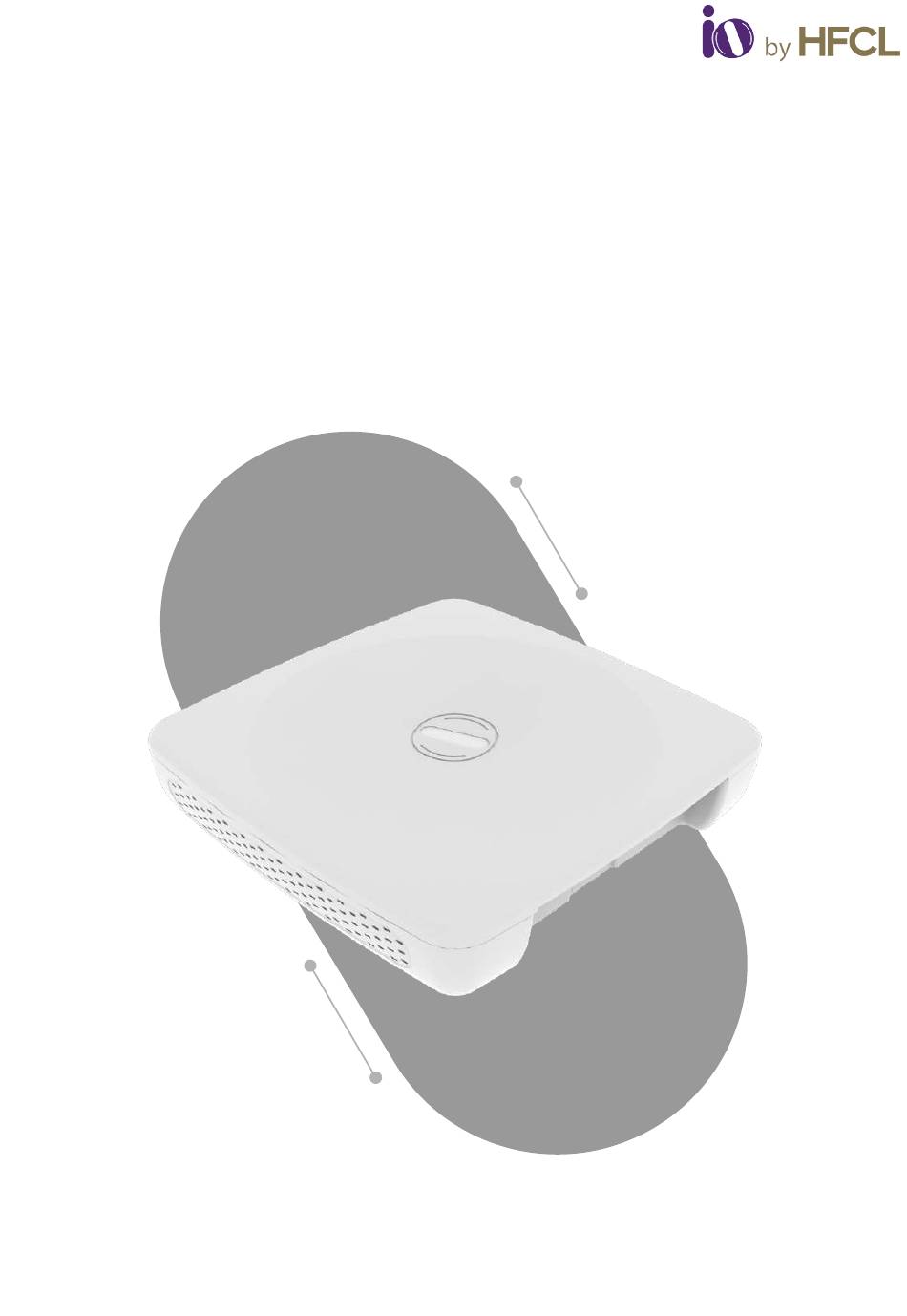

- Page 1 Quick Start Guide Access Point ion4i...
- Page 2 ANYWHERE EVERYWHERE...
- Page 3 Thank you for purchasing our Access Point. It is a centrally managed 2x2:2 MU-MIMO Wi-Fi 5 certified Access Point that raises the bar for wireless performance and efficiency. Packaging Content ion4i Access Point (Qty:1) Mounting Kit Mounting Bracket (Qty:1), Mounting Screws (Qty:4),...
-
Page 4: Product Specifications
Product Specifications Peak Data Rate (aggregate) Up to 1.27 Gbps (867 Mbps for 5 GHz and 400 Mbps for 2.4 GHz) Wi-Fi Standard Support 802.11a/b/g/n/ac/ac Wave 2 Interface 1 X 10/100/1000 BASE-T Ethernet Radio Mode 2x2 MU-MIMO with 2 spatial streams Mesh Support Self-creating, Self-healing Mesh Maximum number of SSID... -
Page 5: Product Overview
Product Overview LAN + PoE (Power up the device using PoE Adaptor and a Regular Ethernet Port) Vent (Transfers the heat in ambient) Hooks... - Page 6 Mounting of Access Point Place the mounting bracket which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws. Drill holes in the marked points and insert the plastic wall anchors. Use supplied screws and attach mounting bracket on the wall.
- Page 7 Align the hooks of Access Point with the mounting slots of the mounting bracket, ensure that it is properly hinged. Mounting Slots Mounting Bracket (Securely align the hooks of Access Point with mounting slots of mounting bracket)
- Page 8 Slide the hooks of Access Point out from the mounting slots of mounting bracket. Locked position of the Slide the hooks of Access Point hooks Access Point out from mounting slots WARNING: HFCL cannot be held liable for any damages incurred during the process.
- Page 9 Getting the Access Point Online Step 1: Power up the device & connect to the network Follow the steps mentioned below to connect the Access Point to a network: Ethernet Cable PoE Adaptor (48V) Note: Plug and Adaptor will vary by country/region.
- Page 10 Ethernet Cable Laptop/ Computer PoE Adaptor (48V) Connect ion4i PoE supported Ethernet port to PoE adaptor power port. Device will be powered on. Configure the computer with a same domain static IP 192.168.1.X and a subnet mask of 255.255.255.0 (X is from 2 to 255) Open the web browser and enter the Access Point static IP address in the address bar: 192.168.1.1...
- Page 11 Follow the steps mentioned to connect Access Point to a network: Power-up the AP through PoE adapter or PoE switch Connect the AP to DHCP network and Internet Login to HFCL io cloud controller (cNMS) iocloud.hfcl.com with the credentials provided To get cNMS login credential, please send request...
- Page 12 Retailer Name Purchased Add AP group under configuration Add APs in the AP group Create SSID in the AP group Refer our website io.hfcl.com for detailed information to configure AP through cNMS Step 2: Check the LED status 5 GHz 2.4 GHz...
-
Page 13: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Access Point: Do not subject the device to high temperatures Keep away from high-voltage cables Do not power the device during installation Do not power off the unit in the middle of an upgrade process Do not open the enclosure of the Access Point Fasten the device tightly with the mount... - Page 14 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
