Installation and User Manual

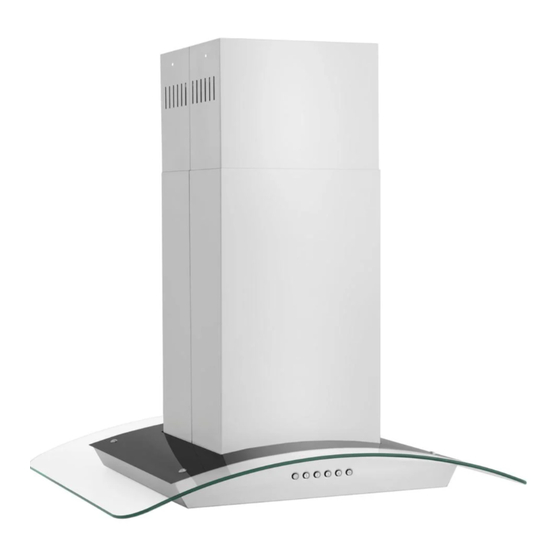

ALPINE SERIES RANGE HOODS
www.zlinekitchen.com

Advertisement

Table of Contents
loading

Related Manuals for Zline ALPINE Series

Summary of Contents for Zline ALPINE Series

  • Page 1 Installation and User Manual ALPINE SERIES RANGE HOODS www.zlinekitchen.com...
  • Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
  • Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ......1 WALL MODELS ..........4 Before Installation .

  • Page 5: Important Safety Instructions

    • The installer should leave these instructions with the consumer who should retain for local inspectors’ use and for future reference. • Due to the size and weight of ZLINE range hoods, two-person installation is highly recommended. • Use care when handling the range hood, chimney cover, baffle filters, and any parts or accessories, as sharp edges may lead to injury.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS • Ducted range hoods MUST ALWAYS be vented to the outdoors or in some instances converted to recirculate the air. All ZLINE hoods come with a transition piece with a built-in damper. • Some existing installations may already have an external damper at the exit point of the home.
  • Page 7 DO NOT vent exhaust into spaces between walls, crawl spaces, ceilings, attics, basements, or garages. • All ZLINE range hoods are ETL-listed, ensuring all parts were tested for safety and meet industry standards and regulations. • You must purchase appropriate flexible ducting and any additional items to vent the hood in accordance with government codes.
  • Page 8 WALL MODELS BEFORE INSTALLATION Please unpack your range hood when it is delivered and inspect to ensure all parts are included. Gather the required tools before starting installation. Read and follow the instructions provided with any tools listed here. You may wish to use additional tools to assist in installation, which is intended for qualified installers and certified service technicians.
  • Page 9 WALL MODELS BEFORE INSTALLATION ELECTRICAL REQUIREMENTS • Contact a qualified electrical installer. • Assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70-latest edition, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0-M91-latest edition and all local codes and ordinances.
  • Page 10 WALL MODELS BEFORE INSTALLATION INSTALLATION CLEARANCES HOOD Min: 30" Max: 36" COOK TOP 36" BASE • NEVER exhaust air or terminate ductwork into crawl spaces, between walls, ceiling, attics or garages. All exhaust must be ducted to the outside. • Hood mounted too low could result in heat and/or fire hazard. Hoods mounted too high will be hard to reach and will lose its performance and efficiency.
  • Page 11 • Do not use any reducers on ducting smaller than the appropriate diameter, which is 6" for ZLINE Alpine Series range hoods (some models may require 8" diameter ducting). • Any existing or additional dampers should be inspected for proper operation.
  • Page 12 WALL MODELS BEFORE INSTALLATION Side Wall Cap VENTING METHODS This range hood is factory set for venting through the roof or wall. Vent work can terminate either through the roof or wall. To vent through a wall, use a 90° elbow. Vertical roof venting Horizontal wall venting Option 1:...

  • Page 13: Wall Models

    WALL MODELS INSTALLATION Wood Block STEP 1: (OPTIONAL) PROTECT THE COOK TOP AND CREATE WORK STATION App. 2" thick PLYWOOD PLYWOOD If you wish, place wide pieces of plywood on top of the cooktop below the hood to protect the cooktop or range from damage or debris. This plywood will also create a comfortable 15 Amp, 120v work station for easy installation of hood unit.
  • Page 14 SCREWS WALL MODELS INSTALLATION STEP 3: PREPARE DUCTWORK AND SINGLE OUTLET (SKIP THIS STEP IF DUCTWORK IS ALREADY PRESENT) UPPER CHIMNEY BRACKET DUCTING PIPE SINGLE OUT LET MOUNTING SCREW 1/8" 1. Locate a 120VAC, 60 Hz AC, 15-amp single outlet anywhere inside the chimney width lines (make sure it's at least 2"...
  • Page 15 WALL MODELS INSTALLATION STEP 5: HANG THE HOOD AND CONNECTION 1. Carefully lift and hang the hood body on the wall, attaching it to 2 mounting screws already in place. Use a cabinet jack if desired. 2. Level the hood body by using a horizontal level. 3.
  • Page 16 WALL MODELS INSTALLATION STEP 6: SECURE THE HOOD BODY AND TEST RUN 1. Use a stud finder to find all studs behind the hood body. Put blue tape on every stud found. 2. Use 1/8" drill bit to drill though the back of hood in line with blue tape. 3.
  • Page 17 GLASS WALL MODELS INSTALLATION STEP 7: INSTALLING CHIMNEYS - DO NOT REMOVE INNER CHIMNEY PROTECTIVE FILM UNTIL FINISHED INSTALLATION GLASS 1. Remove outer chimney protective film (not the inner chimney). 2. Place both chimneys on top of range hood base. 3.
  • Page 18 WALL MODELS OPERATION • Power: Turn ON/OFF the range hood and activate power-off delay timer (3mins). • Low Speed: Light frying/boiling. • Medium Speed: Frying/wok cooking/heavy boiling. • High Speed: Intensive frying and wok cooking. • Light: Turn ON/OFF. Adjusting the blower (motor) speed: Press the power key then press any speed buttons one time.

  • Page 19: Before Installation

    ISLAND MODELS BEFORE INSTALLATION Please unpack your range hood when it is delivered and inspect to ensure all parts are included. Gather the required tools before starting installation. Read and follow the instructions provided with any tools listed here. You may wish to use additional tools to assist in installation, which is intended for qualified installers and certified service technicians.
  • Page 20 ISLAND MODELS INSTALLATION The recommended height to install your hood is 30" minimum and 36" maximum above the cooktop. The same ducting requirements (40' max, with limited elbows) for wall hoods applies to island hoods. 1. Locate the center above the stove where the hood is to be installed. Ensure that the bracket will be secured to solid wood backing.
  • Page 21 ISLAND MODELS OPERATION • Power: Turn ON/OFF the range hood and activate power-off delay timer (3mins). • Low Speed: Light frying/boiling. • Medium Speed: Frying/wok cooking/heavy boiling. • High Speed: Intensive frying and wok cooking. • Light: Turn ON/OFF. Adjusting the blower (motor) speed: Press the power key then press any speed buttons one time.

  • Page 22: Before Installation

    UNDERCABINET MODELS BEFORE INSTALLATION PARTS NEEDED • Aluminum tape • Hex bit extension • Jigsaw or key saw • Level • Pencil • Phillips-head screwdriver • Powered screwdriver • Stud finder • Tape measure OPTIONAL PARTS • Cabinet jack • Plywood: Wide enough to cover the cooking surface below the hood PARTS SUPPLIED •...
  • Page 23 UNDERCABINET MODELS INSTALLATION The recommended height to install your undercabinet hood is 30" minimum and 36" maximum above the cooktop. The same ducting requirements (40' max, with limited elbows) for wall and island hoods applies to undercabinet hoods. See below for common venting scenarios for undercabinet hoods.

  • Page 24: Installation

    UNDERCABINET MODELS INSTALLATION STEP 3: ATTACH 2" WIDE WOOD FILLER STRIPS (OPTIONAL) Bottom Cabinet 2" wide 2" wide If installing under a cabinet with a recessed bottom, attach 2" wide wood filler strips (not provided) to each side so the hood can be flush with the cabinet. STEP 4: CREATE ACCESS Create or cut an access opening for electrical wire and hood exhaust under the cabinet.

  • Page 25: Installation

    UNDERCABINET MODELS INSTALLATION STEP 6: SECURE THE HOOD TO BOTTOM CABINET From inside of the hood, using the hex bit extension, place one screw (provided) into each key hole or pre-drilled holes (“A” below) to secure to the cabinet bottom. Make sure there is at least 1 screw at each corner of hood the body.
  • Page 26 UNDERCABINET MODELS INSTALLATION NOTE: The quality of the duct must meet the local law and fire prevention standards. STEP 8: INSTALL OIL TUNNEL OR GREASE CUP (NOT AVAILABLE FOR ALL MODELS) Drop oil tunnel into the recess support near rear of hood. Refer to the image above. STEP 9: INSTALL BAFFLE FILTERS Install baffle filters.
  • Page 27 UNDERCABINET MODELS OPERATION 1. Power: Turn ON/OFF the range hood and activate power-off delay timer (3mins). 2. Low Speed: Light frying/boiling. 3. Medium Speed: Frying/wok cooking/heavy boiling. 4. High Speed: Intensive frying and wok cooking. 5. Light: Turn ON/OFF. Adjusting the blower (motor) speed: Press the power key then press any speed buttons one time.

  • Page 28: Maintenance And Cleaning

    HOOD 36” BASE Side wall cap MAINTENANCE AND CLEANING Min: 26” Horizontal wall venting Vertical roof venting Max: 30” Roof cap COOK TOP HOW TO CHANGE OR REPLACE LIGHT BULBS (FOR ANY MODEL) 1. Make sure the range hood is unplugged or turn off the circuit breaker. Horizontal wall venting Vertical roof venting 36”...
  • Page 29 MAINTENANCE AND CLEANING CLEANING TIPS • The saturation of greasy residue in the blower and filters may cause increased inflammability. Keep unit clean and free of grease and residue buildup at all times to prevent possible fires. • FILTERS MUST BE CLEANED PERIODICALLY AND FREE FROM ACCUMULATION OF COOKING RESIDUE.

  • Page 30: Troubleshooting

    TROUBLESHOOTING FAULT TROUBLESHOOTING Check if the range hood has been plugged in. Make sure that all power has been turned back on and all electrical wiring is properly connected. Range hood does not operate after installation Swap out light assembly to working ones to determine whether it is caused by defective bulbs.
  • Page 31 • Your product may not have some of the features described here. If a problem cannot be resolved after following the instructions in the manuals, please contact ZLINE Customer Service at 1-614-777-5004. Never attempt to repair or disassemble a faulty range hood...

  • Page 32: Warranty

    WARRANTY COVERAGE ZLINE Kitchen and Bath (“ZLINE”) range hood parts will be warrantied for three years from the original purchase date for the original purchaser of the product. ZLINE warranty periods begin from the original purchase date of the product and solely cover the original purchaser of the product, delivered new and in its original carton.
  • Page 33 If ZLINE is unable to replace the defective part after a reasonable number of attempts, ZLINE reserves the right to offer to replace the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).
  • Page 34 Always check the ZLINE website for the most up-to-date version of its product manuals: www.zlinekitchen.com/pages/manuals. Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer Experience at 1-614-777-5004 for help.
  • Page 35 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Scan the QR code to view the most up-to-date version of ZLINE’s range hood Installation and User Manuals. Need to purchase a part or accessory for your ZLINE product? Visit...
  • Page 36 2.1.0 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...
