Summary of Contents for Zline ISLAND

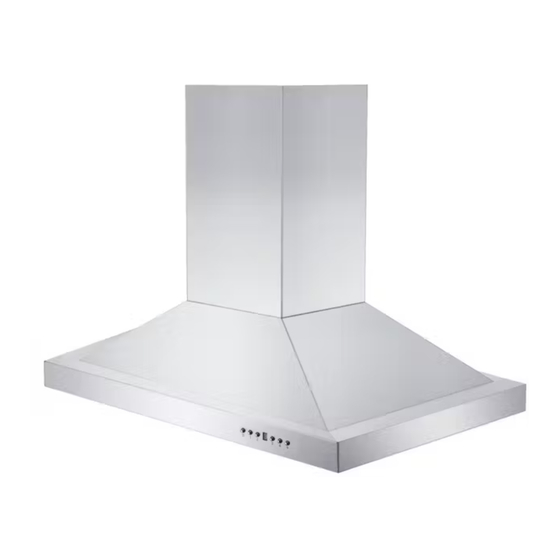

- Page 1 Installation Manual ISLAND RANGE HOODS www.zlinekitchen.com...
- Page 2 With an endless selection of features and finishes, our inspiration is your reality. ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
- Page 4 WARRANTY Carefully inspect all items for damages before accepting delivery. Customer should note any damages on the freight bill or express receipt. Request the name and signature of the carrier’s agent and keep a copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival.
- Page 5 Repaired parts or replacement products will be provided by ZLINE on an exchange basis and will be either new or refurbished to be functionally equivalent to new. The consumer is responsible for shipping costs.
- Page 6 The product must be deemed serviceable via troubleshooting with the ZLINE Kitchen and Bath service team. All service on ZLINE Kitchen and Bath range products under the above warranty must be performed by ZLINE approved and certified service, unless otherwise specified by ZLINE Kitchen and Bath.
- Page 7 WARRANTY This warranty is valid in the United States. It is non-transferable and applies only to the purchaser and does not extend to subsequent owners of this product, any applicable implied warranties, including the warranty of merchantability are limited in duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and no warranties, whether express or implied shall be applied to this product.
-
Page 8: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ISLAND RANGE HOOD INSTALLATION DESIGNER ISLAND RANGE HOOD INSTALLATION ISLAND CROWNSOUND INSTALLATION ® REMOTE BLOWER INSTALLATION BUTTON/CONTROL PANEL OPERATION HOW TO CHANGE PARTS TROUBLESHOOTING AND FAQ... - Page 9 SAFETY INSTRUCTIONS This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others. All safety messages will follow the safety WARNING alert symbol. READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE. •...
- Page 10 SAFETY INSTRUCTIONS • Ducted range hoods MUST ALWAYS be vented to the outdoors or in some instances converted to recirculate the air. All our range hoods come with a transition piece with a built-in damper. Some existing installations may already have an external damper.
- Page 11 SAFETY INSTRUCTIONS • All ZLINE range hoods are ETL listed, ensuring all parts were tested for safety and meet industry standards and regulations. NOTE: This ensures all included metal ducting pieces were tested for safety and are flame retardant. • Always turn the range hood ON when cooking at high heat or when cooking flaming foods.
-
Page 12: Island Range Hood Installation
ISLAND HOOD INSTALLATION Installation Tutorial Video... - Page 13 The ducting with these range hoods is 6˝. Dual motor island hoods will come with a square to 8” round transition piece and in some instances are fitted with a built-in damper. For existing installations that may already have an external damper.
- Page 14 ISLAND HOOD INSTALLATION The recommended height to install your hood is 30˝ minimum and 36˝ maximum above the cooktop. For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of 36˝ and a maximum of 42” above the grill.
- Page 15 ISLAND HOOD INSTALLATION Slide chimney pieces over the angle iron on the hood. Pull the electrical plug to the top of the chimney sections. Figure 4 2. Lift the hood to attach the angle iron to the ceiling bracket. Use screws provided to attach.
-
Page 16: Designer Island Range Hood Installation
DESIGNER ISLAND HOOD INSTALLATION Installation Tutorial Video... - Page 17 The ducting with these range hoods is 6˝. Dual motor island hoods will come with a square to 8” round transition piece and in some instances are fitted with a built-in damper. For existing installations that may already have an external damper.
- Page 18 DESIGNER ISLAND HOOD INSTALLATION The recommended height to install your hood is 30˝ minimum and 36˝ maximum above the cooktop. For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of 36˝ and a maximum of 42” above the grill.
- Page 19 DESIGNER ISLAND HOOD INSTALLATION 6. Slide chimney pieces over the angle iron on the hood. Pull the electrical plug to the top of the chimney sections. Figure 4 Lift the hood to attach the angle iron to the ceiling bracket. Use screws provided to attach.
-
Page 20: Island Crownsound ® Installation
ISLAND CROWNSOUND INSTALLATION ® ELECTRIC POWER RATING Frequency: 1 10V/50 Hz Power: 10W Installation Tutorial Video Attach crown molding bracket to ceiling using hardware provided. Figure 1 Screw: A/C/D Screw:A/C/D Screw: E Screw:E Figure 1 Screw:A/C/D 2. Attach ducting and electrical connections. Plug the speakers into an outlet Screw:E behind the chimney. - Page 21 The crown should cover the gap. Ensure that it installs properly and is level. Figure 3 Figure 3 4. Open the phone’s Bluetooth settings and find “ZLINE Audio.“ When the connection is successful, a chime will sound. Figure 4 110V / 60Hz...
-
Page 22: Remote Blower Installation
REMOTE BLOWER INSTALLATION When installing your new remote blower type range hood, if so optioned, use the following instructions. Make certain to connect the electrical cord to the hood and plug the blower motor in to test the unit. Run duct work into the area that you will install the remote from your range hood. 2. - Page 23 REMOTE BLOWER INSTALLATION Unit Connection Cord Unit Connection Cord The Remote Blower is designed for our Remote Range Hoods. This unit is installed remotely in the interior of your home. This provides venting, but with reduced noise. T85 Remote Blower—Single Motor (This Blower must be used with Remote Blower Hood) Airflow: 400 (CFM) Noise Level: 1.2 / 2.6 / 4.2 / 6.5 (Sones)
-
Page 24: Button/Control Panel Operation
OPERATION Button Control Panel Operational Manual Button functions Light High Speed Power Power-Off Delay Medium 2 Speed Low Speed Blower Speed Indicator Medium 1 Speed Power: Turn ON/OFF the range hood and activate power-off delay timer. Light: Turn ON/OFF (Some models will have bright, dim, and OFF settings.) Blower Speed Indicator: Shows current blower (motor) speed (1-4). -
Page 25: How To Change Parts
CHANGING PARTS HOW TO CHANGE OUT THE BUTTON PANEL Remove baffle/aluminum filters. 2. Locate back of button panel. 3. Remove screws from each side of the button panel. 4. Disconnect button panel from cord connecting to circuit board. NOTE: Never work on or clean the range hood while power is ON. - Page 26 CHANGING PARTS HOW TO REPLACE THE CIRCUIT BOARD Turn the power off at the breaker and unplug the Range Hood. 2. Remove all screws from the top of the circuit board cover. 3. Take a picture of the wiring layout (this will help you put the circuit board back together properly).
- Page 27 CHANGING PARTS REPLACING THE LIGHT BULBS IN YOUR RANGE HOOD Remove baffles. 2. Squeeze the old LED light casting out until it falls out of the socket. 3. Disconnect the plug wires from the light wire. 4. Reconnect the LED plug into the light wire. 5.
- Page 28 CHANGING PARTS PROFESSIONAL SERIES BAFFLE FILTER CHANGE Covering Models 696, 697, and KECOM. Professional series hoods are equipped with 2 removable dishwasher safe baffle channels that the baffle filters rest in. To install the channels, place inside the hood, right under the front and back edges of the hood. The channel is kept in place by installation pieces on the sides and back of the baffle channel.
- Page 29 CHANGING PARTS BAFFLE FILTER If your range hood has baffle filters with a knob, to remove the filter from the hood, pull back towards the wall and then tilt the knob side of the baffle filter downward. Release 21 21...
- Page 30 CHANGING PARTS CHANGE/REPLACE CAPACITOR: Remove screws from the circuit board cover. 2. Remove screws from capacitor. 3. Remove both wired connections from the capacitor. 4. Connect new capacitor with wire connectors. 5. Replace screws in cover. 6. Repeat operation if dual motor. NOTE: Some units have more than one motor.
- Page 31 CHANGING PARTS REPLACE OR CHANGE CHARCOAL FILTERS: It is recommended to direct vent the hood whenever possible. If your situation does not allow for a direct vent install, carbon filters are available to recirculate the air through your hood. Filter Support Screws Remove the stainless steel or aluminum filters from the bottom of the hood.
- Page 32 CHANGING PARTS HOW TO CLEAN, INSTALL, OR REPLACE THE GREASE CUP: A removable grease cup is provided to catch any excess grease at the bottom of the motor. Remove it every 2 to 3 months, wash it, then re-install it. NOTE: Never work on or clean the range hood while power is ON.
- Page 33 CHANGING PARTS REPLACE OR CHANGE TRANSFORMER: Remove the screws from the transformer. 2. Remove the two connections to the lights. 3. Remove the two wired connections from the circuit board (you must remove the circuit board cover). 4. Install the new connections from your new transformer (be certain the correct wires are connected).
- Page 34 CHANGING PARTS SINGLE MOTOR ELECTRICAL DIAGRAM ground ground...
- Page 35 CHANGING PARTS DUAL MOTOR ELECTRICAL DIAGRAM ground ground ground...
-
Page 36: Troubleshooting And Faq
TROUBLESHOOTING Where are ZLINE products manufactured? All ZLINE products are manufactured in ZLINE facilities overseas, including: Germany, Italy, and China. Are ZLINE range hoods considered type 1 or type 2? Type 1 - Range hoods that are used with appliances that produce grease and smoke. - Page 37 TROUBLESHOOTING How loud is the range hood? A sone is measure of loudness, the higher the sone rating, the louder the sound of the hood. The sound of one sone is comparable to that of a quiet refrigerator. Keep in mind that other factors such as the size of the blowers can affect the loudness of the range hood.
- Page 38 TROUBLESHOOTING What type of motor is in the range hoods? Our hoods have a squirrel cage motor. Is the width of my range hoods description, the actual size? No, the actual size of the range hood will be slightly less than the generic description of the range hood.
- Page 39 “ZLINE Audio” won’t appear in the Bluetooth settings. Check if the electrical connections are secure. A chime will sound if the connection is successful. If “ZLINE Audio” still will not appear, call ZLINE at 1-614-777-5004 for a replacement. 31 31...
- Page 40 TROUBLESHOOTING My range hood will not operate. Check that there is power to the range hood. The most common issue is that the circuit breaker is off or the fuse has blown. 2. Make sure the speed has been selected at the range hood controls. 3.
- Page 41 TROUBLESHOOTING My range hood is not pulling. • Was the unit plugged in and was the fan checked before installation? • What distance is the hood mounted above the cook top? • Indoor (30”-36”), outdoor (36”-42”) • Is the range hood width the correct size for the cook top? •...
- Page 42 • If the motor is accessible, the motor knob can be tightened. Take off the gray cap. You can tighten the knob here to eliminate any vibration. Need to purchase a part or accessory for your ZLINE product? Visit ZLINEparts.com, ZLINE's official parts distribution partner.
- Page 43 1.6.0 zlinekitchen.com 1-614-777-5004 contact@zlinekitchen.com...
