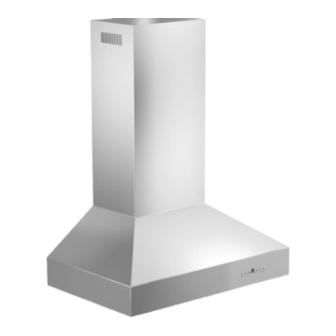

1.0.1 Installation Guide and User Manual Luxury should never be left desired - it’s meant to be attainable.” - Andrew Zuro, Founder...
Page 2
• Warranty Service • Tracking your support inquiries ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone's the highest end luxury designs and professional features into everyone's homes.
Page 3
Often the center attraction of a kitchen, ZLINE range hoods can add surprising value to your property, by providing both an impressive, aesthetic look to your home, excellent ventilation, and additional kitchen lighting. ZLINE range hoods blend superior performance with elegant design.
Page 4
8” metal transition piece without a backdraft damper and a piece of 4’ metal ducting. Our ZLINE single motor units come with a plastic 6” plastic transition piece with a backdraft damper and a 4’ long piece of flexible ducting.
Page 5
WARRANTY THIS WARRANTY WILL BE VOID WHEN Product damaged through negligence, improper installation, accident, abuse, misuse, and natural disaster, insufficient or excessive electrical supply. Abnormal mechanical or environmental conditions or any unauthorized disassembly repair, modifications or failure to follow the installation instructions or when product is used commercially or other than its intended purpose or damaged because of improper connection with equipment of other manufacturers.
Page 6
DISCLAIMER Carefully inspect all items for damages before accepting delivery. Customer should note any damages on the freight bill or express receipt. Request the name and signature of the carrier’s agent and keep a copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival.
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS WALL RANGE HOOD INSTALLATION WALL CROWN MOLDING INSTALLATION DESIGNER WALL RANGE HOOD INSTALLATION WALL CROWNSOUND INSTALLATION ® ISLAND RANGE HOOD INSTALLATION DESIGNER ISLAND RANGE HOOD INSTALLATION ISLAND CROWNSOUND INSTALLATION ® UNDER CABINET INSTALLATION RANGE HOOD INSERT INSTALLATION REMOTE BLOWER INSTALLATION BUTTON/CONTROL PANEL OPERATION HOW TO CHANGE PARTS...
SAFETY INSTRUCTIONS This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others. All safety messages will follow the safety alert WARNING symbol. READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE. •...
Page 9
SAFETY INSTRUCTIONS • Ducted fans MUST ALWAYS be vented to the outdoors. At the point where the duct work ends, add an external damper to prevent air from entering the home when the hood is not in use. This also prevents small animals and rain water from entering the duct work.
Page 10
SAFETY INSTRUCTIONS • All ZLINE range hoods are ETL and UL listed, ensuring all parts were tested for safety and meet industry standards and regulations. NOTE: This ensures all included plastic ducting pieces were tested for safety and are flame retardant.
Page 12
WALL HOOD INSTALLATION Please unpack your range hood when it is delivered and inspect to ensure all parts are included. Main Hood with All Lights and 4. Baffle Filters Button Banks Pre-Installed 5. Flexible Duct (for 6” or 8”) 2. Adjustable Stainless Steel 6.
Page 13
WALL HOOD INSTALLATION The recommended height to install your hood is 30˝ minimum and 36˝ maximum above the cooktop. For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of 36˝ and a maximum of 42” above the grill. Find the center of the wall where you are installing the hood.
Page 14
Attach the ducting to the range hood. Before installing baffle filters, make sure that you insert the clear, plastic grease cup under the motor blower. ZLINE provides a ducting ring for the 8” metal ductwork. The ring for the PVC NOTE: 6”...
Page 15
WALL HOOD INSTALLATION 8. Install the two part chimneys on top of the hood. Slide the inside section up until the vertical vent slots are visible, attach top portion to mounting bracket with screws. Secure lower chimney portion to the hood with screws provided. Figure 6 Install the grease cup by sliding into brackets located at the bottom of the motor.
WALL CROWN MOLDING INSTALLATION If using a crown molding, follow instructions before attaching ducting and chimney sections. Attach crown molding bracket to ceiling using hardware provided. 2. Attach ducting and electrical connections. 3. Attach chimney sections to the range hood, then connect to crown molding bracket.
DESIGNER WALL HOOD INSTALLATION Scan Me Installation Tutorial Video...
Page 18
DESIGNER WALL HOOD INSTALLATION Please unpack your range hood when it is delivered and inspect to ensure all parts are included. PARTS SUPPLIED Main Hood with All Lights and 5. Flexible Duct (for 6” or 8”) Button Banks Pre-Installed 6. Packet of Screws and Anchors 2.
Page 19
DESIGNER WALL HOOD INSTALLATION The recommended height to install your hood is 30˝ minimum and 36˝ maximum above the cooktop. For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of 36˝ and a maximum of 42” above the grill. Find the center of the wall where you are installing the hood.
Page 20
DESIGNER WALL HOOD INSTALLATION 5. Make your electrical and ducting connections. Try and minimize the use of elbows. More elbows and longer runs create higher static pressure. The hood comes with a grounded three prong plug that can be plugged into a 20amp. circuit.
Page 21
DESIGNER WALL HOOD INSTALLATION 8. Find the center of the wall where you are installing the hood. Make sure there is sufficient bracing to hold the weight of the hood. Mark your center line and measure out from the center to find your two mounting points. Make sure your mounting points are level when you mark them.
WALL CROWNSOUND INSTALLATION ® ELECTRIC POWER RATING Frequency: 1 10V/50 Hz Power: 10W Watch Now Installation Tutorial Video Attach crown molding bracket to ceiling using hardware provided. Figure 1 Figure 1 2. Attach ducting and electrical connections. Plug the speakers into an outlet behind the chimney.
Page 23
The crown should cover the gap. Ensure that it installs properly and is level. Figure 3 Figure 3 4. Open the phone’s Bluetooth settings and find “ZLINE Audio.“ When the connection is successful, a chime will sound. Figure 4 Input Figure 4 Bluetooth crown moldings carry a one year parts warranty.
ISLAND HOOD INSTALLATION Scan Me Installation Tutorial Video...
Page 25
ISLAND HOOD INSTALLATION Please unpack your range hood when it is delivered and inspect to ensure all parts are included. PARTS SUPPLIED Main Hood with All Lights and 6. Packet of Screws and Anchors Button Banks Pre-Installed Top Mounting Bracket 2.
Page 26
ISLAND HOOD INSTALLATION The recommended height to install your hood is 30˝ minimum and 36˝ maximum above the cooktop. For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of 36˝ and a maximum of 42” above the grill. Locate the center above the stove where the hood is to be installed.
Page 27
ISLAND HOOD INSTALLATION Slide chimney pieces over the angle iron on the hood. Pull the electrical plug to the top of the chimney sections. Figure 4 2. Lift the hood to attach the angle iron to the ceiling bracket. Use screws provided to attach.
DESIGNER ISLAND HOOD INSTALLATION Scan Me Installation Tutorial Video...
Page 29
DESIGNER ISLAND HOOD INSTALLATION Please unpack your range hood when it is delivered and inspect to ensure all parts are included. PARTS SUPPLIED Main Hood with All Lights and 6. Packet of Screws and Anchors Button Banks Pre-Installed Top Mounting Bracket 2.
Page 30
DESIGNER ISLAND HOOD INSTALLATION The recommended height to install your hood is 30˝ minimum and 36˝ maximum above the cooktop. For Outdoor (304 Series) hood installation, the unit must be installed at a minimum of 36˝ and a maximum of 42” above the grill. Locate the center above the stove where the hood is to be installed.
Page 31
DESIGNER ISLAND HOOD INSTALLATION 6. Slide chimney pieces over the angle iron on the hood. Pull the electrical plug to the top of the chimney sections. Figure 4 Lift the hood to attach the angle iron to the ceiling bracket. Use screws provided to attach.
ISLAND CROWNSOUND INSTALLATION ® ELECTRIC POWER RATING Frequency: 1 10V/50 Hz Power: 10W Watch Now Installation Tutorial Video Attach crown molding bracket to ceiling using hardware provided. Figure 1 Screw: A/C/D Screw:A/C/D Screw: E Screw:E Figure 1 Screw:A/C/D 2. Attach ducting and electrical connections. Plug the speakers into an outlet Screw:E behind the chimney.
Page 33
The crown should cover the gap. Ensure that it installs properly and is level. Figure 3 Figure 3 4. Open the phone’s Bluetooth settings and find “ZLINE Audio.“ When the connection is successful, a chime will sound. Figure 4 110V / 60Hz...
UNDER CABINET INSTALLATION Scan Me Installation Tutorial Video...
Page 35
UNDER CABINET INSTALLATION Undercabinet Recirculating Kit Undercabinet Recirculating Kit RECIRCULATING KIT Step 1: Step 1: Open package, locate all neccessary hardware. Included should be Open package, locate all neccessary hardware. Included should be Open package, locate all necessary hardware. Included should be 4 screws 4 screws with 4 washers.
Page 36
UNDER CABINET INSTALLATION PREPARATION • Decide the location of the venting pipe from the hood to the outside. • Check hood for clearance. • A straight, short vent run will allow the hood to perform more efficiently. • Try to avoid as many transitions, elbows, and long runs as possible. This may reduce the performance of the hood.
Page 37
UNDER CABINET INSTALLATION If you need to convert your under cabinet range hood to rear ducting, use the following instructions. Please note that converting the undercab to rear ducting is a modification of the standard hood and part of the installation process.
Page 39
INSERT INSTALLATION When installing a range hood insert, it is recommended to install the unit at a minimum of 30˝ from the cooktop. For outdoor range hood inserts it is recommended to install the unit at a minimum of 36˝ and a maximum of 42” from the grill top. Unpack contents of the hood.
REMOTE BLOWER INSTALLATION When installing your new remote blower type range hood, follow the instructions for the type of hood you are installing. Remote blowers are available with wall, island, under cabinet, and insert range hoods. Make certain to connect the electrical cord to the hood and plug the blower motor in to test the unit.
Page 41
REMOTE BLOWER INSTALLATION Unit Connection Cord The Remote Blower is designed for our Remote Range Hoods. This unit is installed remotely in the interior of your home. This provides venting, but with reduced noise. T85 Remote Blower—Single Motor (This Blower must be used with Remote Blower Hood) Airflow: 400 (CFM) Noise Level: 1.2 / 2.6 / 4.2 / 6.5 (Sones) Dimensions: 26.14 x 14.6 x 13...
Button Control Panel Operational Manual OPERATION Light Power High Speed Power-Off Delay Medium 2 Speed Low Speed Blower Speed Indicator Medium 1 Speed Button functions Power: Turn ON/OFF the range hood and activate power-off delay timer. Light: Turn ON/OFF (Some models will have bright, dim, and OFF settings.) Blower Speed Indicator: Shows current blower (motor) speed (1-4).
CHANGING PARTS HOW TO CHANGE OUT THE BUTTON PANEL Remove baffle/aluminum filters. 2. Locate back of button panel. 3. Remove screws from each side of the button panel. 4. Disconnect button panel from cord connecting to circuit board. NOTE: Never work on or clean the range hood while power is ON. Always unplug the unit or switch the electrical breaker to the off position.
Page 44
CHANGING PARTS HOW TO REPLACE THE CIRCUIT BOARD Turn the power off at the breaker and unplug the Range Hood. 2. Remove all screws from the top of the circuit board cover. 3. Take a picture of the wiring layout (this will help you put the circuit board back together properly).
Page 45
CHANGING PARTS REPLACING THE LIGHT BULBS IN YOUR RANGE HOOD Remove baffles. 2. Squeeze the old LED light casting out until it falls out of the socket. 3. Disconnect the plug wires from the light wire. 4. Reconnect the LED plug into the light wire. 5.
Page 46
CHANGING PARTS PROFESSIONAL SERIES BAFFLE FILTER CHANGE Covering Models 696, 697, 697i (Island), KECOM, KECOMi (Island), 695, 698, and 721 Inserts Professional series hoods are equipped with 2 removable dishwasher safe baffle channels (one for series 695 and 698 inserts) that the baffle filters rest in. To install the channels, place inside the hood, right under the front and back edges of the hood.
Page 47
CHANGING PARTS BAFFLE FILTER The baffle filter is equipped with a knob. To remove from the hood, pull back toward the wall and down. Release...
Page 48
CHANGING PARTS CHANGE/REPLACE CAPACITOR: Remove screws from the circuit board cover. 2. Remove screws from compactor. 3. Remove both wired connections from the capacitor. 4. Connect new capacitor with wire connectors. 5. Replace screws in cover. 6. Repeat operation if dual motor. NOTE: Some units have more than one motor.
Page 49
CHANGING PARTS REPLACE OR CHANGE CHARCOAL FILTERS: It is recommended to direct vent the hood whenever possible. If your situation does not allow for a direct vent install, carbon filters are available to recirculate the air through your hood. Filter Support Screws Remove the stainless steel or aluminum filters from the bottom of the hood.
Page 50
CHANGING PARTS HOW TO CLEAN, INSTALL, OR REPLACE THE GREASE CUP: A removable grease cup is provided to catch any excess grease at the bottom of the motor. Remove it every 2 to 3 months, wash it, then re-install it. NOTE: Never work on or clean the range hood while power is ON.
Page 51
CHANGING PARTS REPLACE OR CHANGE TRANSFORMER: Remove the screws from the transformer. 2. Remove the two connections to the lights. 3. Remove the two wired connections from the circuit board (you must remove the circuit board cover). 4. Install the new connections from your new transformer (be certain the correct wires are connected).
Page 52
CHANGING PARTS SINGLE MOTOR ELECTRICAL DIAGRAM...
Page 53
CHANGING PARTS DUAL MOTOR ELECTRICAL DIAGRAM...
TROUBLESHOOTING Where are ZLINE products manufactured? All ZLINE products are manufactured in ZLINE facilities overseas, including: Germany, Italy, and China. Are ZLINE range hoods considered type 1 or type 2? Type 1 - Range hoods that are used with appliances that produce grease and smoke.
Page 55
TROUBLESHOOTING How loud is the range hood? A sone is measure of loudness, the higher the sone rating, the louder the sound of the hood. The sound of one sone is comparable to that of a quiet refrigerator. Keep in mind that other factors such as the size of the blowers can affect the loudness of the range hood.
Page 56
TROUBLESHOOTING What type of motor is in the range hoods? Our hoods have a squirrel cage motor. Is the width of my range hoods description, the actual size? No, the actual size of the range hood will be slightly less than the generic description of the range hood.
Page 57
“ZLINE Audio” won’t appear in the Bluetooth settings. Check if the electrical connections are secure. A chime will sound if the connection is successful. If “ZLINE Audio” still will not appear, call ZLINE at 1-614-777-5004 for a replacement.
Page 58
TROUBLESHOOTING My range hood will not operate. Check that there is power to the range hood. The most common issue is that the circuit breaker is off or the fuse has blown. 2. Make sure the speed has been selected at the range hood controls. 3.
Page 59
TROUBLESHOOTING My range hood is not pulling. • Was the unit plugged in and was the fan checked before installation? • What distance is the hood mounted above the cook top? • Indoor (30”-36”), outdoor (36”-40”) • Is the range hood width the correct size for the cook top? •...
Page 60
TROUBLESHOOTING Noisy Motor • Were the fan speeds checked fan speeds prior to installation? • Is the ducting clear? • Check to make sure motor is attached to housing • Is the 6” back draft damper on transition piece functioning properly (760 CFM hood?) Does it open when the hood is engaged? •...
