Summary of Contents for Zline 617

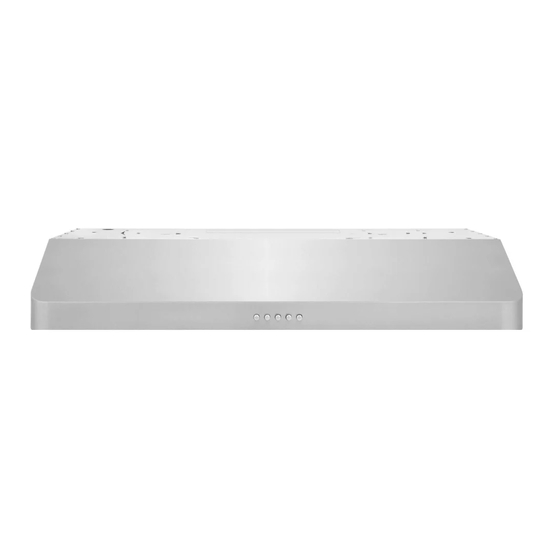

- Page 1 Installation and User Manual RANGE HOODS 615 & 617 MODELS www.zlinekitchen.com...
- Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
- Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....1 BEFORE INSTALLATION ....... 4 Product Specifications . -
Page 5: Important Safety Instructions
• The installer should leave these instructions with the consumer who should retain for local inspectors’ use and for future reference. • Due to the size and weight of ZLINE range hoods, two-person installation is highly recommended. • Use care when handling the range hood, chimney cover, baffle filters, and any parts or accessories, as sharp edges may lead to injury. - Page 6 IMPORTANT SAFETY INSTRUCTIONS • Ducted range hoods MUST ALWAYS be vented to the outdoors or in some instances converted to recirculate the air. All ZLINE hoods come with a transition piece with a built-in damper. • Some existing installations may already have an external damper at the exit point of the home.
- Page 7 DO NOT vent exhaust into spaces between walls, crawl spaces, ceilings, attics, basements, or garages. • All ZLINE range hoods are ETL-listed, ensuring all parts were tested for safety and meet industry standards and regulations. • You must purchase appropriate flexible ducting and any additional items to vent the hood in accordance with government codes.
-
Page 8: Before Installation
BEFORE INSTALLATION PARTS NEEDED • Marker or pencil • Utility knife • Measuring tape • Level • Powered drill • Flat-blade and Phillips screwdrivers PARTS SUPPLIED DESCRIPTION IMAGE Undercabinet Range Hood Ceiling Height Min: 30" Max: 36" Vent/Damper Countertop/Stov 36" Counter Baffle Filters Baffle Filter Spacer... -
Page 9: Product Specifications
Levels Of Speed Control 3 Levels 615-30: 120CFM/200CFM/280CFM Airflow (Q/L/M/H) 617-30: 120CFM/310CFM/400CFM 615-30: Single Motor Number Of Motors 617-30: Dual Motor Motor Type Dual Chamber Ultra Quiet Fan Type Dual Centrifugal Squirrel Cage Control Type Push Button Control Filtration Type... -
Page 10: Product Dimensions
BEFORE INSTALLATION PRODUCT DIMENSIONS 615-30 617-30... -
Page 11: Circuit Diagram
BEFORE INSTALLATION CIRCUIT DIAGRAM Risk of electrical shock. This range hood must be properly grounded by a qualified electrician in accordance with all applicable national and local electrical codes. WARNING Before connecting wires, switch power off at the service panel and lock it to prevent power from being switched on accidentally. -
Page 12: Ventilation And Clearances
BEFORE INSTALLATION VENTILATION AND CLEARANCES Cabinet or Single-Piece Cabinet Chimney (Optional) Height Range Hood Height Under Cabinet Range Hood Min: 30" Max: 36" Ceiling Height Countertop/Stove NOTE: recommended height to install your hood is 30" 36" (762 mm) minimum and 36" Counter (914 mm) maximum above your range top or cook top. -
Page 13: Venting Requirements
• Determine the location of the venting pipe from the hood to the outside of your home before installation. • Ducting is not provided with your ZLINE range hood. It’s recommended to use solid ducting made of galvanized steel or another appropriate rigid metal ducting whenever possible for the lowest noise and highest flow. -
Page 14: Venting Methods
BEFORE INSTALLATION VENTING METHODS This range hood is factory set for venting through the roof or wall. Vent work can terminate either through the roof or wall. If venting through the top of the hood and eventually through the wall, use a 90° elbow. You can also vent directly from the rear of the hood. Below are examples of appropriate ducting options. -
Page 15: Installation
INSTALLATION To avoid damage to your hood or potential future injury, use care to prevent any debris from entering the vent opening. WARNING • Prior to installation, determine the location of the ventilation ducting from the hood to the outside. Refer to "Venting Requirements" on page 9. Additionally, use care to peel off the white plastic protective coat off the hood, if any. - Page 16 INSTALLATION Fig. 1 Fig. 2 Fig. 3 Step 3: Attaching Vent/Damper • Depending on the exterior venting option chosen (see "Venting Methods" on page 10), pop out the steel panel on either the top or rear of the range hood. See Figure 2 on page 1 1.
-
Page 17: Baffle Filters
INSTALLATION Risk of electrical shock. This range hood must be properly grounded by a qualified electrician in accordance with all applicable national and local electrical codes. WARNING Before connecting wires, switch power off at the service panel and lock it to prevent power from being switched on accidentally. -
Page 18: Operation
OPERATION BEFORE OPERATION • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave baffle filters in place when operating the hood. Without these components, operating blowers could catch onto to hair, fingers, and loose clothing. BUTTON PANEL CONTROLS Low speed Medium speed... -
Page 19: Cleaning And Maintenance
CLEANING AND MAINTENANCE Never clean the range hood while the power is on. Always unplug the unit or switch the electrical breaker to the off position. Do not put your hand or body WARNING parts inside the hood’s motor while in operation. Do not operate the hood when filters are removed. -
Page 20: Replacing Light Bulbs
CLEANING AND MAINTENANCE REPLACING LIGHT BULBS Never replace light bulbs while the power is on. Always unplug the unit or switch the electrical breaker to the off position. This range hood uses 20-watt, 12-volt WARNING halogen bulbs. Do not handle halogen bulbs with bare fingers, as this will leave oily residue on bulbs and may shorten the life of the bulb. -
Page 21: Troubleshooting
Make sure the power is on high speed for heavy cooking. If a problem cannot be resolved after following the instructions in this manual, please contact ZLINE Customer Service at 1-614-777-5004. Never attempt to WARNING repair or disassemble a faulty range hood. Always consult a professional. -
Page 22: Warranty
WARRANTY COVERAGE ZLINE Kitchen and Bath (“ZLINE”) range hood parts will be warrantied for three years from the original date of product delivery for the original purchaser of the product. ZLINE warranty periods begin from the original date o product delivery and solely cover the original purchaser of the product, delivered new and in its original carton. - Page 23 If ZLINE is unable to replace the defective part after a reasonable number of attempts, ZLINE reserves the right to offer to replace the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).
-
Page 24: Serial Number Location
Always check the ZLINE website for the most up-to-date version of its product manuals: www.zlinekitchen.com/pages/manuals. Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer Experience at 1-614-777-5004 for help. - Page 25 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Scan the QR code to view the most up-to-date version of ZLINE’s range hood Installation and User Manuals. Need to purchase a part or accessory for your ZLINE product? Visit...
- Page 26 1.0.0 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...
